RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398109 REAR SEAT OUTER BELT ASSEMBLY(for Wagon) G

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Wagon)  INSPECTION


PROCEDURE

Hide 1.INSPECT REAR SEAT OUTER BELT ASSEMBLY

a.

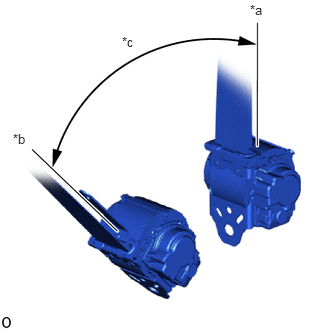

B541169C02
0.135,1.365 0.448,1.563 0.313,0.198 10 false *b 1.271,0.354 1.583,0.552 0.313,0.198 10 false *c 2.604,0.021 2.917,0.219 0.313,0.198 10 false *a
*a Unlock
*b Lock
*c 45°


Before installing the rear seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear seat outer belt assembly.
