RM35X0E
_59
Vehicle Exterior
_078503
DOOR / HATCH
_0385648
HOOD
A
DOOR / HATCH HOOD REASSEMBLY
PROCEDURE
53381

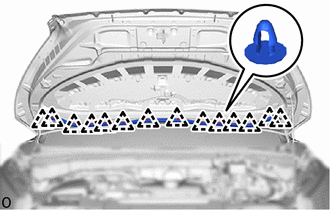

1.INSTALL HOOD TO RADIATOR SUPPORT SEAL
a.
Attach the clip and install the hood to radiator support seal.
85373

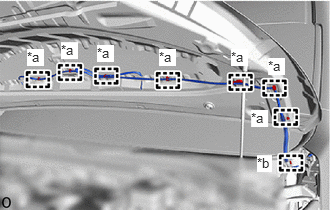

2.CONNECT WINDSHIELD WASHER HOSE
a.
2.615,1.146 2.792,1.323
0.177,0.177
10
true
*a
2.677,1.615 2.833,1.792
0.156,0.177
10
true
*b
2.792,0.604 2.969,0.781
0.177,0.177
10
true
*a
2.406,0.51 2.583,0.688
0.177,0.177
10
true
*a
1.656,0.51 1.833,0.688
0.177,0.177
10
true
*a
1.01,0.469 1.188,0.646
0.177,0.177
10
true
*a
0.635,0.438 0.813,0.615
0.177,0.177
10
true
*a
0.281,0.51 0.458,0.688
0.177,0.177
10
true
*a
| *a | Clamp |
| *b | Guide |
Attach the clamp and guide to connect the windshield washer hose.
85035
3.INSTALL WASHER NOZZLE SUB-ASSEMBLY
- HINT:
-
Use the same procedure for the RH and LH sides.
55879C

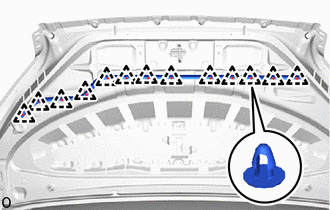

4.INSTALL COWL VENT SEAL
a.
Attach the clip and install the cowl vent seal.
53341B

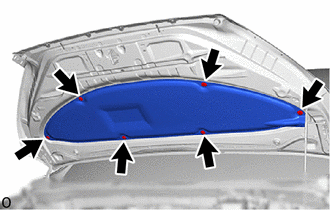

5.INSTALL HOOD INSULATOR (w/ Hood Insulator)
a.
Install the hood insulator with the 6 clips.
75770
6.INSTALL FRONT HOOD MOULDING ASSEMBLY (except Wagon)
75770
7.INSTALL FRONT HOOD MOULDING ASSEMBLY (for Wagon)
