The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during back door disassembly/reassembly are shown below.
| Replaced Part or Performed Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|---|
| Television camera assembly (Including removal and installation) | ·
Parking assist monitor system initialization ·
Television camera assembly optical axis (Back camera position setting) |
Parking assist monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
|
| Television camera view adjustment (Rear adjustment) | Panoramic view monitor system | ( 201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
|
67938A

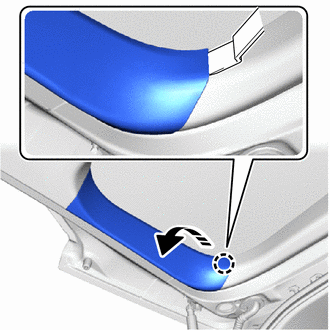

1.REMOVE BACK DOOR SIDE GARNISH LH
|
Remove in this Direction |

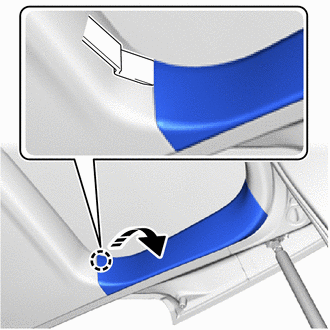

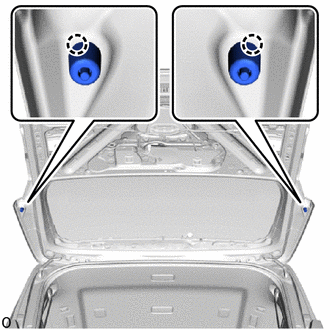

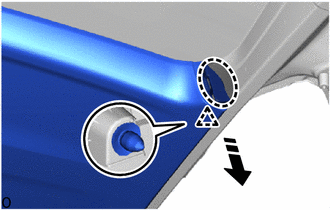

Using moulding remover B, pull in the direction of the arrow and detach the claw.
|
Remove in this Direction |
Using moulding remover B, pull in the direction of the arrow and detach the claw.
|
Place Hands Here |
|
Remove in this Direction |
Place your hand at the position shown in the illustration, and while pulling the back door side garnish LH toward you, detach the guide, clip and claw to remove the back door side garnish LH.
67937B
2.REMOVE BACK DOOR SIDE GARNISH RH
Use the same procedure described for the LH side.
67760A

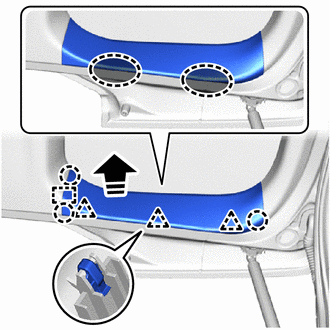

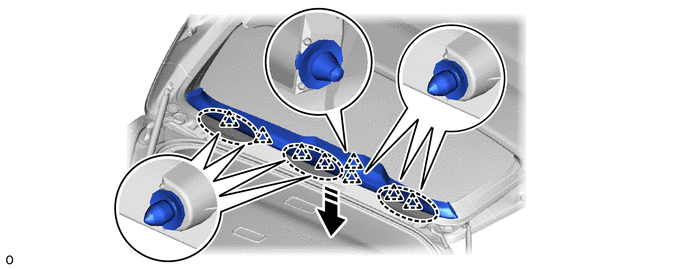

3.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY
|
Remove in this Direction |
Using moulding remover B, pull in the direction of the arrow and detach the clip.

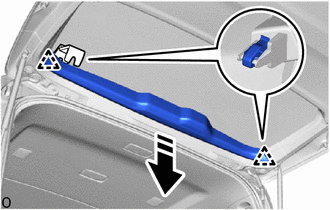

Place your hand at the position shown in the illustration, and while pulling the back door upper trim board assembly toward you, detach the clip and remove the back door upper trim board assembly.
|
Place Hand Here |
|
Remove in this Direction |
69291
4.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

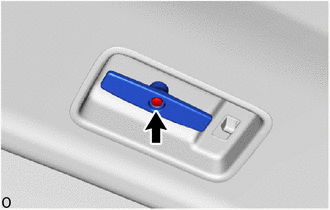

Remove the screw and back door inside handle assembly.
69783B
5.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

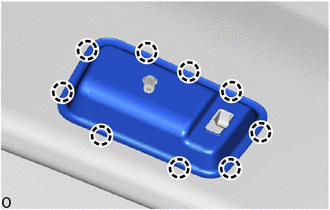

Detach the claw and remove the back door inside handle bezel.
67961A
6.REMOVE BACK DOOR PULL STRAP

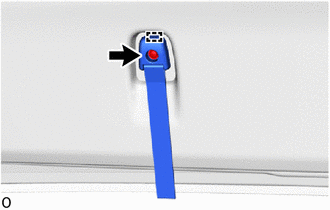

Remove the screw.
Detach the guide and remove the back door pull strap.
67751
7.REMOVE BACK DOOR TRIM BOARD
|
Place Hands Here |
|
Remove in this Direction |

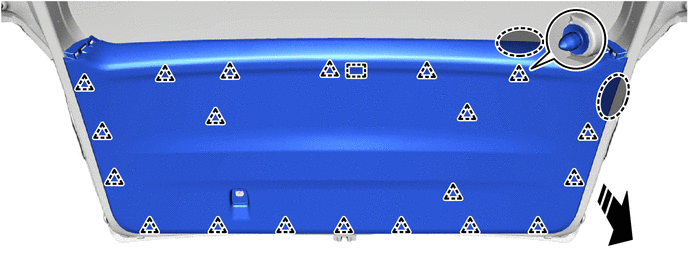

Place your hand at the position shown in the illustration, and while pulling the back door trim board toward you, detach the clip.
Place your hand at the position shown in the illustration, and while pulling the back door trim board toward you, detach the clip and guide to remove the back door trim board.
|
Place Hands Here |
|
Remove in this Direction |
8.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
85110R
9.REMOVE REAR WIPER MOTOR ASSEMBLY
85143R
10.REMOVE REAR WIPER MOTOR GROMMET
76085
11.REMOVE REAR SPOILER SUB-ASSEMBLY
85035R
12.REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY
67290
13.REMOVE BACK DOOR DAMPER ASSEMBLY

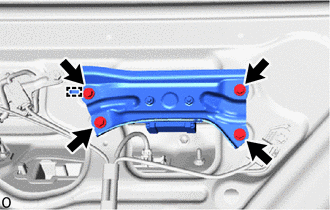

Remove the 4 bolts.
Detach the guide and remove the back door damper assembly.
69690
14.REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY
69350P
15.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
85976
16.REMOVE BACK DOOR CLOSER RELAY
69211C
17.REMOVE BACK DOOR OUTSIDE HANDLE
|
Remove in this Direction |
Remove the 2 nuts and back door outside handle as shown in the illustration.
76801
18.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
81270
19.REMOVE LICENSE PLATE LIGHT ASSEMBLY
Use the same procedure for the RH and LH sides.
84945
20.REMOVE LUGGAGE ELECTRICAL KEY SWITCH
86790
21.REMOVE TELEVISION CAMERA ASSEMBLY (w/o Parking Assist Monitor System)
86790
22.REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)
23.REMOVE CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)
81570
24.REMOVE CENTER STOP LIGHT ASSEMBLY
76802E
25.REMOVE BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY
76804
26.REMOVE BACK DOOR OUTSIDE UPPER GARNISH SUB-ASSEMBLY LH
76803A
27.REMOVE BACK DOOR OUTSIDE UPPER GARNISH SUB-ASSEMBLY RH
Use the same procedure described for the LH side.
81590A
28.REMOVE REAR LIGHT ASSEMBLY LH
81584D
29.REMOVE REAR LIGHT GASKET
81564
30.REMOVE REAR COMBINATION LIGHT BODY GASKET LH
81580D
31.REMOVE REAR LIGHT ASSEMBLY RH
Use the same procedure described for the LH side.
81584D
32.REMOVE REAR LIGHT GASKET
Use the same procedure described for the LH side.
81554
33.REMOVE REAR COMBINATION LIGHT BODY GASKET RH
Use the same procedure described for the LH side.
68960
34.REMOVE BACK DOOR STAY ASSEMBLY LH
68950C
35.REMOVE BACK DOOR STAY ASSEMBLY RH
Use the same procedure described for the LH side.
68946
36.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH
68945
37.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH
Use the same procedure described for the LH side.
68948
38.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET LH
68947
39.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET RH
Use the same procedure described for the LH side.
67207C

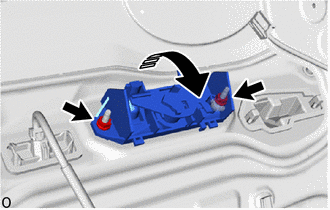

40.REMOVE BACK DOOR STOPPER SUB-ASSEMBLY (w/ Bracket)

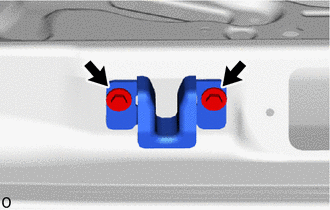

Remove the 2 bolts and back door stopper sub-assembly.
69404A
41.REMOVE BACK DOOR SIDE FEMALE STOPPER SUB-ASSEMBLY LH (w/ Bracket)
Remove the 2 bolts and back door side female stopper sub-assembly LH.
69403A
42.REMOVE BACK DOOR SIDE FEMALE STOPPER SUB-ASSEMBLY RH (w/ Bracket)
Use the same procedure described for the LH side.
67282

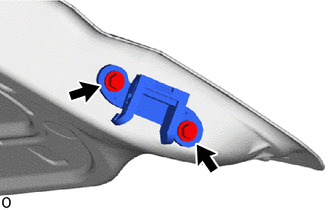

43.REMOVE BACK DOOR NO. 1 STOPPER (w/o Bracket)
Remove the 2 bolts and back door No. 1 stopper.
67281F

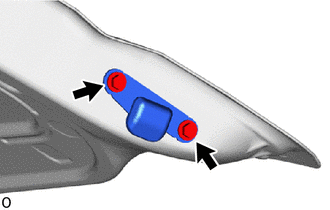

44.REMOVE BACK DOOR LOWER STOPPER (w/o Bracket)
Use the same procedure described for the back door No. 1 stopper.
69359

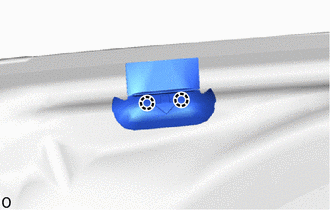

45.REMOVE BACK DOOR LOCK CUSHION
Detach the claw and remove the 2 back door lock cushions.
67837L
46.REMOVE DOOR DUST PROOF SEAL
Detach the claw and remove the door dust proof seal.
Use the same procedure for the RH and LH sides.
