DOOR LOCK  DOOR CONTROL RECEIVER(for Wagon)  COMPONENTS

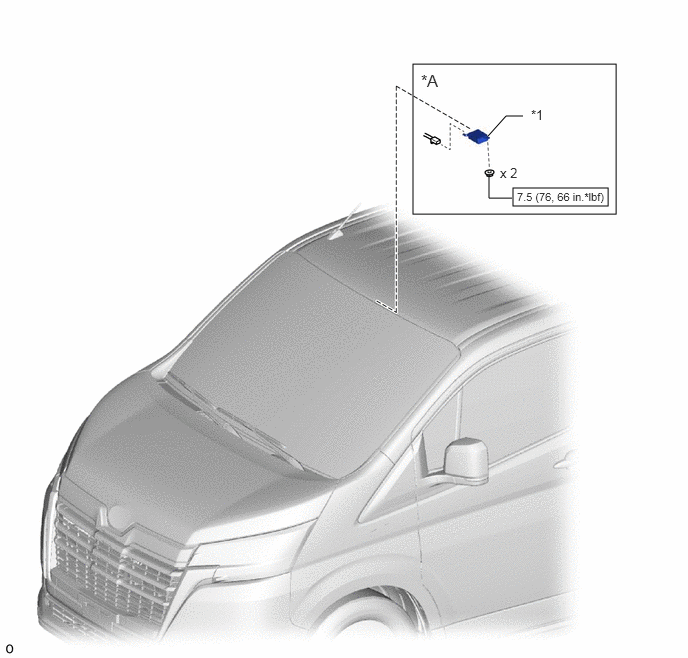

ILLUSTRATION

5.344,1.958 6.333,2.146 0.99,0.188 4.302,0.667 6.417,2.229 2.115,1.563 5.333,2.063 5.094,2.063 5.094,2.063 5.094,1.823 false 5.083,1.417 5.271,1.208 5.271,1.208 5.448,1.208 true 5.208,1.719 5.479,1.896 0.271,0.177 10 false x 2 5.531,1.115 5.844,1.313 0.313,0.198 10 false *1 5.385,1.979 6.354,2.156 0.969,0.177 8 false 7.5 (76, 66 in.*lbf) 4.385,0.74 4.74,0.969 0.354,0.229 12 false *A

*A	w/ Tire Pressure Warning System	-	-
*1	ELECTRICAL KEY AND TPMS RECEIVER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

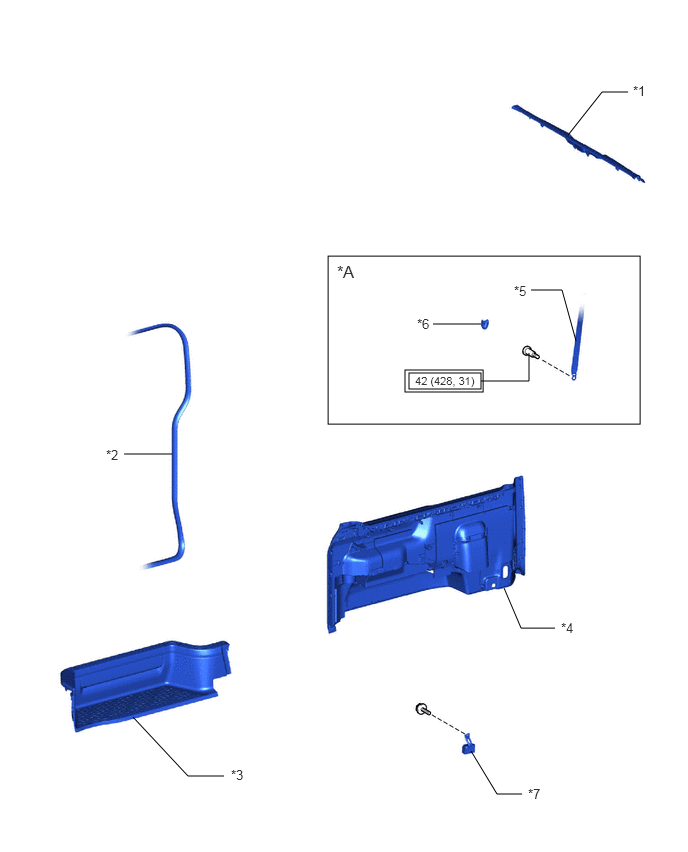

ILLUSTRATION

4.26,3.885 5.01,4.052 0.75,0.167 4.219,3.854 5.031,4.083 0.813,0.229 3.417,2.667 6.667,4.417 3.25,1.75 5.917,1.406 6.271,0.958 6.271,0.958 6.542,0.958 false 1.385,7.469 1.958,8.083 1.958,8.083 2.333,8.083 false 1.292,4.729 1.792,4.729 false 6,3.552 5.854,3.021 5.854,3.021 5.531,3.021 false 5.01,3.969 5.51,3.969 5.51,3.969 5.51,3.677 false 5.25,6.125 5.427,6.542 5.427,6.542 5.781,6.542 false 5.438,8.271 5.177,8.271 5.177,8.271 4.906,7.823 false 4.51,3.375 5.01,3.375 false 6.594,0.865 6.906,1.021 0.313,0.156 10 false *1 1.104,4.656 1.417,4.813 0.313,0.156 10 false *2 5.354,2.948 5.667,3.104 0.313,0.156 10 false *5 5.844,6.458 6.156,6.615 0.313,0.156 10 false *4 4.323,3.896 5.656,4.219 1.333,0.323 8 false 42 (428, 31) 2.406,7.99 2.719,8.146 0.313,0.156 10 false *3 5.5,8.188 5.813,8.344 0.313,0.156 10 false *7 4.344,3.292 4.656,3.448 0.313,0.156 10 false *6 3.51,2.729 3.906,2.958 0.396,0.229 12 false *A

*A	w/ Seat Belt	-	-
*1	BACK DOOR SCUFF PLATE	*2	NO. 1 SLIDE DOOR WEATHERSTRIP LH
*3	REAR DOOR SCUFF PLATE LH	*4	REAR QUARTER TRIM BOARD ASSEMBLY LH
*5	REAR SEAT OUTER BELT ASSEMBLY LH	*6	SEAT BELT ANCHOR COVER CAP
*7	SMART DOOR CONTROL RECEIVER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
