RM35X0E _58 Vehicle Interior _078336 DOOR LOCK _0397536 SLIDE DOOR LOCK(for Wagon) A

DOOR LOCK  SLIDE DOOR LOCK(for Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the RH side.



PROCEDURE

Hide 69630C 1.INSTALL SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY RH

a.

Apply MP grease to the sliding parts of the slide door lock remote control assembly RH.


b.

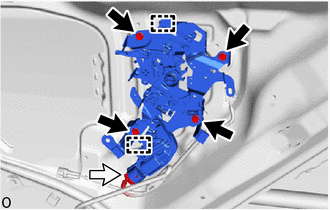

B539143C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Attach the guide and install the slide door lock remote control assembly RH with the 4 bolts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


c.

Connect the each connector.


d.

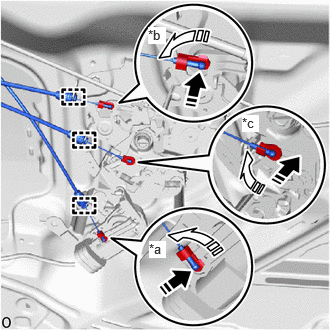

B539196C02
1.552,2.51 1.729,2.688 0.177,0.177 10 true *a 1.542,0.281 1.729,0.458 0.188,0.177 10 true *b 2.521,1.198 2.698,1.375 0.177,0.177 10 true *c
*a Locking Cable (Orange)
*b Open Cable (Blue)
*c Close Cable (Purple)
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the 3 snaps and connect the 3 cables to the slide door lock remote control assembly RH as shown in the illustration.


e.

Attach the clamp.


f.

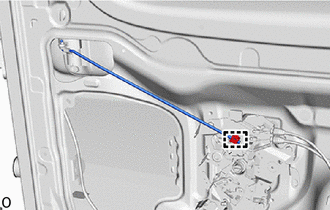

B540693

Attach the clamp and install the rear door lock remove control link RH.


Hide 69330E 2.INSTALL SLIDE DOOR LOCK ASSEMBLY RH (w/o Power Slide Door)

a.

Apply MP grease to the sliding part of the slide door lock assembly RH.


b.

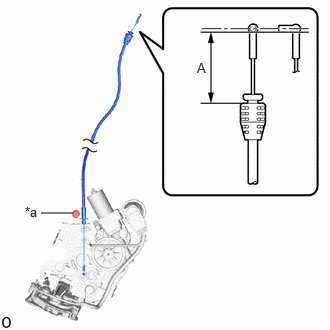

B551658C01
0.427,2.219 0.76,2.219 false 0.26,2.125 0.604,2.427 0.344,0.302 10 false *a 2.052,0.625 2.396,0.927 0.344,0.302 10 false A
*a Adjusting Bolt


Loosen the adjusting bolt.


c.

Adjust the cable as shown in the illustration.

OK:
Area Standard Dimension
A 37.3 to 38.9 mm (1.47 to 1.53 in.)



d.

Tighten the adjusting bolt.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


e.

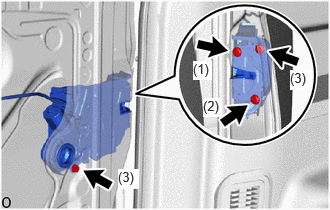

B551656N01
2.01,0.635 2.208,0.833 0.198,0.198 10 true (1) 2.115,1.021 2.313,1.219 0.198,0.198 10 true (2) 3.021,0.729 3.25,0.938 0.229,0.208 10 true (3) 1.229,1.76 1.448,1.969 0.219,0.208 10 true (3)

Using a T30 "TORX" socket wrench, install the slide door lock assembly RH with the 4 "TORX" screws.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)

HINT:

Install the "TORX" screws in the order shown in the illustration.



f.
B539137

Attach the clamp and install the cable clamp.


g.

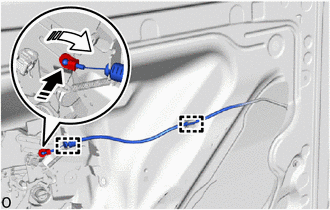

B539186C02
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the snap as shown in the illustration.


h.

Attach the clamp.


i.

Connect the cable to the cable clamp.


Hide 69200 3.INSTALL POWER SLIDE DOOR LOCK ASSEMBLY RH (w/ Power Slide Door)

a.

Apply MP grease to the sliding part of the power slide door lock assembly RH.


b.

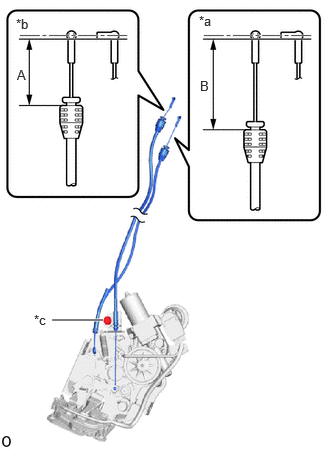

B539187C02
0.542,3.333 1.073,3.333 true 2.073,0.135 2.385,0.333 0.313,0.198 10 false *a 0.167,0.167 0.479,0.365 0.313,0.198 10 false *b 0.354,3.25 0.75,3.531 0.396,0.281 10 false *c 0.177,0.698 0.49,0.896 0.313,0.198 10 false A 2.083,0.813 2.396,1.01 0.313,0.198 10 false B
*a Lock Cable (Gray)
*b Open Cable
*c Adjusting Bolt


Loosen the adjusting bolt.


c.

Adjust the cable as shown in the illustration.

OK:
Area Standard Dimension
A 37.3 to 38.9 mm (1.47 to 1.53 in.)
B 49.6 to 52.8 mm (1.95 to 2.08 in.)



d.

Tighten the adjusting bolt.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


e.

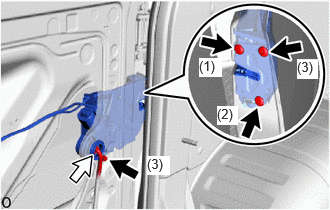

B539140C03
2.073,0.604 2.313,0.802 0.24,0.198 10 true (1) 2.26,1.104 2.479,1.302 0.219,0.198 10 true (2) 1.531,1.625 1.771,1.823 0.24,0.198 10 true (3) 3.094,0.615 3.313,0.823 0.219,0.208 10 true (3)
V100135

"TORX" Screw
V100136

Connector


Using a T30 "TORX" socket wrench, install the power slide door lock assembly RH with the 4 "TORX" screws.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)

HINT:

Install the "TORX" screws in the order shown in the illustration.



f.

Connect the connector.


g.

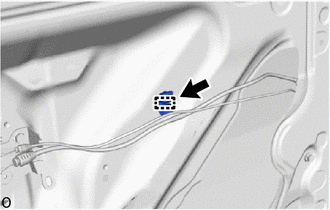

B551657

Attach the clamp and install the cable clamp.


h.

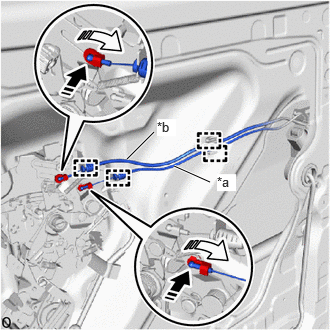

B539188C01
1.813,1.729 2.188,1.896 true 1.604,1.375 1.323,1.656 true 2.26,1.813 2.458,1.99 0.198,0.177 10 true *a 1.635,1.24 1.833,1.417 0.198,0.177 10 true *b
*a Lock Cable (Gray)
*b Open Cable
V113147

Install in this Direction


Attach the 2 snaps and connect the 2 cables to the slide door lock remote control assembly RH as shown in the illustration.


i.

Attach the clamp.


j.

Connect the 2 cables to the cable clamp.


Hide 69370B 4.INSTALL SLIDE DOOR FRONT LOCK ASSEMBLY RH

a.

Apply MP grease to the sliding part of the slide door front lock assembly RH.


b.

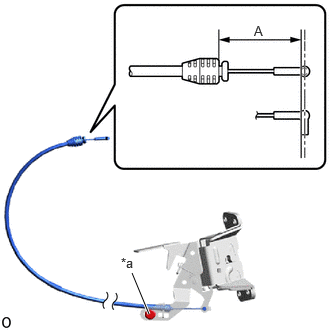

B539189C02
1.552,3.271 1.375,2.844 true 1.26,2.656 1.75,2.99 0.49,0.333 10 false *a 2.646,0.24 3.135,0.573 0.49,0.333 10 false A
*a Adjusting Bolt


Loosen the adjusting bolt.


c.

Adjust the cable as shown in the illustration.

OK:
Area Standard Dimension
A 29.7 to 31.7 mm (1.17 to 1.25 in.)



d.

Tighten the adjusting bolt.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


e.

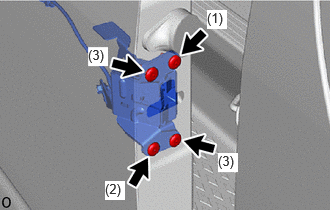

B539135N01
2.156,0.104 2.365,0.302 0.208,0.198 10 true (1) 1.094,1.885 1.302,2.083 0.208,0.198 10 true (2) 0.917,0.49 1.125,0.688 0.208,0.198 10 true (3) 2.271,1.594 2.479,1.792 0.208,0.198 10 true (3)

Using a T30 "TORX" socket wrench, install the power slide door lock assembly RH with the 4 "TORX" screws.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

HINT:

Install the "TORX" screws in the order shown in the illustration.



f.

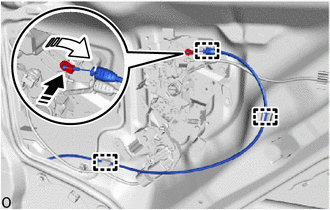

B539190C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the snap as shown in the illustration.


g.

Attach the clamp.


h.

Connect the cable to the cable clamp.


Hide 69730A 5.INSTALL REAR DOOR LOCK CONTROL LINK ASSEMBLY RH (w/ Cover)

a.

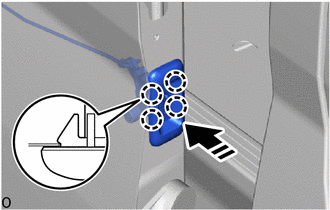

B539191C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear door lock control link assembly RH.


b.

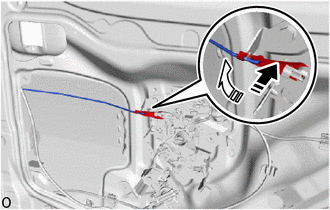

B539192C02
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the snap as shown in the illustration.
