DOOR LOCK  BACK DOOR LOCK(for Wagon)  INSTALLATION

69350P 1.INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

a.

Apply MP grease to the sliding parts of the back door lock assembly with courtesy light switch.

b.

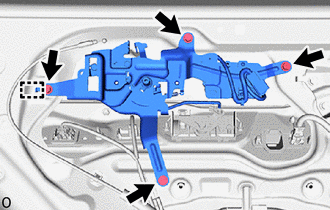

Install the back door lock assembly with courtesy light switch with the 4 bolts.

Torque:

12.5 N*m (127 kgf*cm, 9 ft.*lbf)

c.

Attach the cable clamp.

d.

Connect the connector.

69690 2.INSTALL BACK DOOR REMOTE CONTROL ASSEMBLY

a.

Apply MP grease to the sliding areas of the back door remote control assembly.

b.

Install the 4 grommets.

c.

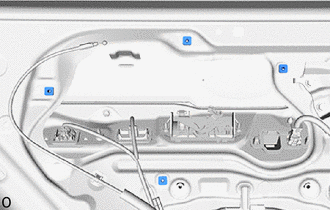

0.635,0.448 0.844,0.646 0.208,0.198 10 true (1) 1.333,0.177 1.542,0.375 0.208,0.198 10 true (2)

Attach the guide.

d.

Install the back door remote control assembly with the 4 screws in the order shown in the illustration.

e.

Connect the connector.

f.

Attach the clamp and connect the back door lock cable.

g.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Connect the back door lock open link in the direction indicated by the arrow (1) in the illustration.

h.

Attach the snap in the direction indicated by the arrow (2) in the illustration.

67751 3.INSTALL BACK DOOR TRIM BOARD

67961A 4.INSTALL BACK DOOR PULL STRAP

69783B 5.INSTALL BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

69291 6.INSTALL BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

67938A 7.INSTALL BACK DOOR SIDE GARNISH LH

67937B 8.INSTALL BACK DOOR SIDE GARNISH RH
