BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  REAR SPEED SENSOR  REMOVAL

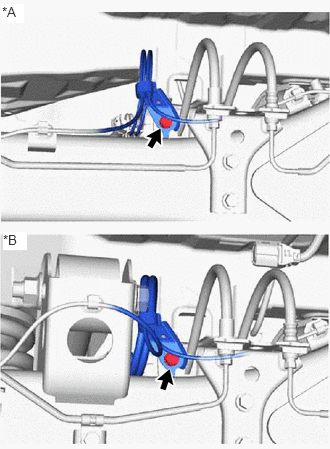

Remove the bolt and disconnect the connector.

0.021,0.042 0.25,0.24 0.229,0.198 10 true *A 0.031,2.417 0.281,2.604 0.25,0.188 10 true *B

*A	except Wagon
*B	for Wagon

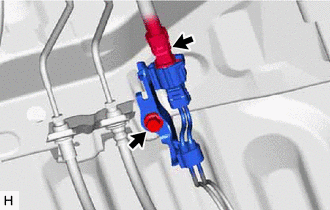

Remove the bolt and separate the rear speed sensor.

except Wagon:

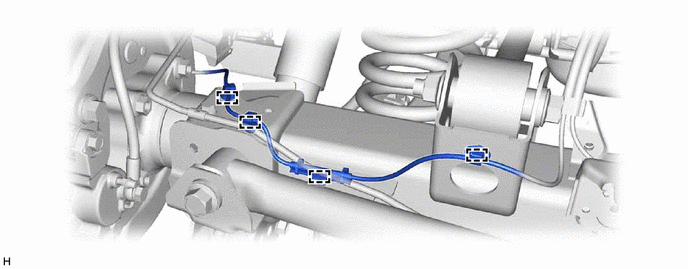

Disengage the 3 clamps and separate the rear speed sensor.

for Wagon:

Disengage the 4 clamps and separate the rear speed sensor.

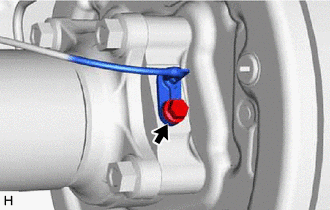

Remove the bolt and separate the rear speed sensor from the rear axle hub and bearing assembly LH.

NOTICE:

·

Keep the tip of the rear speed sensor and installation hole free of foreign matter.

·

Do not rotate or apply excessive force to the rear speed sensor when removing it from the rear axle hub and bearing assembly LH. Rotating or applying excessive force may result in damage to the rear speed sensor.

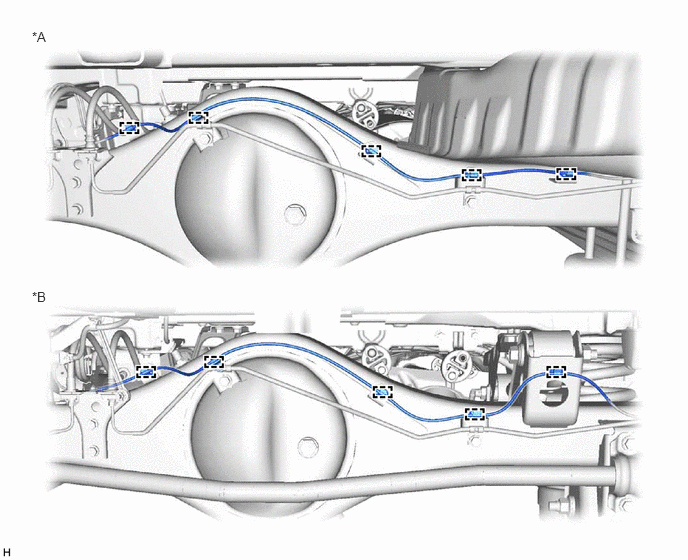

Disengage the 5 clamps and separate the rear speed sensor.

0.333,0.302 0.625,0.5 0.292,0.198 10 false *A 0.333,3.01 0.646,3.167 0.313,0.156 10 false *B

*A

except Wagon

*B

for Wagon

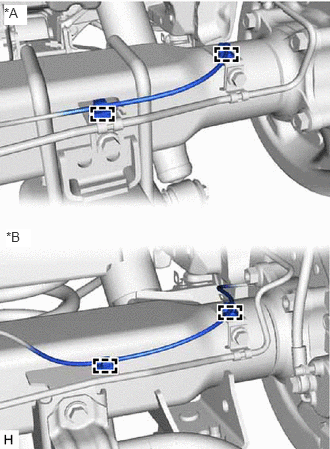

0.042,0.052 0.281,0.26 0.24,0.208 10 true *A 0.063,2.385 0.323,2.573 0.26,0.188 10 true *B

*A	except Wagon
*B	for Wagon

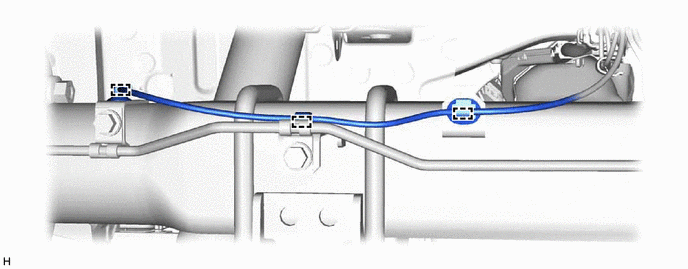

Disengage the 2 clamps and separate the rear speed sensor.

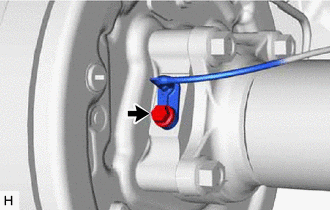

Remove the bolt and rear speed sensor from the rear axle hub and bearing assembly RH.

NOTICE:

·

Keep the tip of the rear speed sensor and installation hole free of foreign matter.

·

Do not rotate or apply excessive force to the rear speed sensor when removing it from the rear axle hub and bearing assembly RH. Rotating or applying excessive force may result in damage to the rear speed sensor.
