REAR SUSPENSION  REAR STABILIZER BAR  INSTALLATION

1.667,1.542 1.75,1.792 1.75,1.792 1.917,1.792 false 1.854,0.938 1.604,0.938 1.604,0.938 1.438,1.354 true 1.896,0.885 2.229,1.135 0.333,0.25 10 false *a 1.958,1.729 2.292,1.979 0.333,0.25 10 false *b

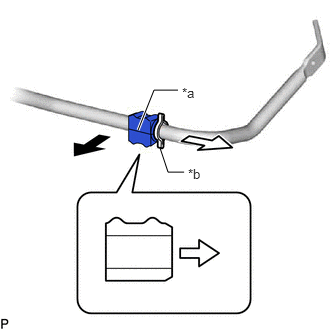

*a	Cutout
*b	Stopper Ring
	Front of the Vehicle
	Outside of the Vehicle

Install the rear stabilizer bushing to the front stabilizer bar as shown in the illustration.

NOTICE:

·

Install the rear stabilizer bushing so that the cutout is facing the front of the vehicle.

·

Install the rear stabilizer bushing onto the rear stabilizer bar so that the stopper ring of the rear stabilizer bar faces the outside of the vehicle.

1.635,1.073 1.969,0.906 1.969,0.906 2.135,0.906 true 2.177,0.823 2.51,1.073 0.333,0.25 10 false *a

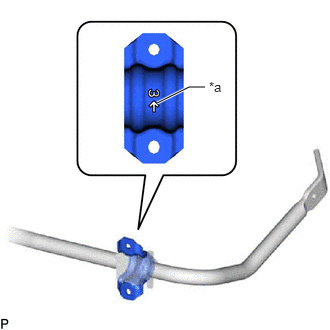

*a	Arrow Mark

Install the rear stabilizer bar bracket to the rear stabilizer bushing.

NOTICE:

Make sure to install the rear stabilizer bar bracket with its arrow facing the upper of the vehicle.

0.521,0.75 0.677,0.948 0.156,0.198 10 true A 2.698,0.76 2.854,0.958 0.156,0.198 10 true A 2.708,1.708 2.865,1.906 0.156,0.198 10 true B 0.552,1.74 0.708,1.938 0.156,0.198 10 true B

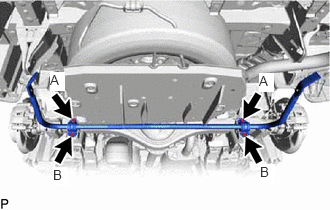

Install the rear stabilizer bar, 2 rear stabilizer bar brackets and 2 rear stabilizer bushings to the rear axle housing assembly with the 4 bolts.

Torque:

56 N*m (571 kgf*cm, 41 ft.*lbf)

NOTICE:

Temporarily tighten the bolts in the order of (A), (B) and then fully tighten the 4 bolts in the order of (A) and (B).
