RM35X0E _53 Suspension _078877 REAR SUSPENSION _0397337 REAR STABILIZER BAR A

REAR SUSPENSION  REAR STABILIZER BAR  REMOVAL


PROCEDURE

Hide 48840A 1.REMOVE REAR STABILIZER LINK ASSEMBLY LH

a.

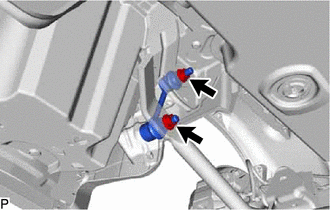

C417364

Remove the 2 nuts and rear stabilizer link assembly LH.

NOTICE:

Do not damage the boot of the ball joint.


HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.



Hide 48830D 2.REMOVE REAR STABILIZER LINK ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 48812 3.REMOVE REAR STABILIZER BAR

a.

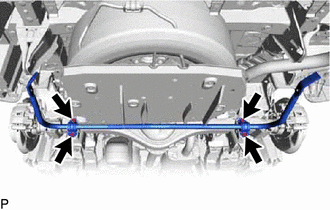

C417365

Remove the 4 bolts, rear stabilizer bar, 2 rear stabilizer bar brackets and 2 rear stabilizer bushings from the rear axle housing assembly.


Hide 48824R 4.REMOVE REAR STABILIZER BRACKET

a.

Remove the 2 rear stabilizer bar brackets from the 2 rear stabilizer bushings.


Hide 48815R 5.REMOVE REAR STABILIZER BUSHING

a.

Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
