EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  INSTALLATION

2.198,0.396 2.51,0.396 false 0.75,0.583 1.594,1.021 true 1.969,0.313 2.281,0.469 0.313,0.156 10 false *a 0.563,0.469 0.875,0.625 0.313,0.156 10 false *b

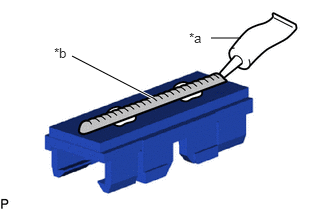

*a	Adhesive
*b	2.0 to 3.0 mm (0.0787 to 0.1181 in.) Bead of Adhesive

Apply a 2.0 to 3.0 mm (0.0787 to 0.1181 in.) bead of adhesive (3M DP-105 or equivalent) to each new roof drip side finish moulding clip.

HINT:

Adhesive strength (tensile strength): 13.7 MPa (140.0 kgf/cm², 1987 psi) or more (when the temperature is 23°C (73°F).)

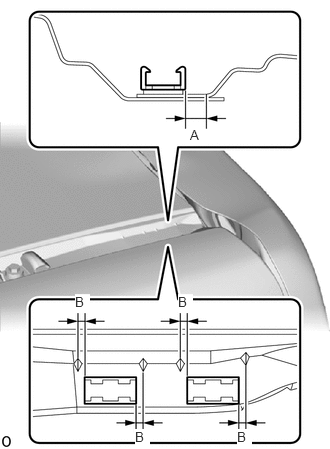

1.979,1.323 2.135,1.521 0.156,0.198 10 true A 0.781,3.063 0.938,3.26 0.156,0.198 10 true B 1.406,4.469 1.563,4.667 0.156,0.198 10 true B 1.854,3.063 2.01,3.26 0.156,0.198 10 true B 2.469,4.469 2.625,4.667 0.156,0.198 10 true B

Install new roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the roof drip side finish moulding clips.

Standard Value:

Area	Dimensions
A	4.3 to 5.3 mm (0.169 to 0.209 in.)
B	3.0 mm (0.118 in.)

2.198,0.396 2.51,0.396 false 0.75,0.583 1.594,1.021 true 1.969,0.313 2.281,0.469 0.313,0.156 10 false *a 0.563,0.469 0.875,0.625 0.313,0.156 10 false *b

*a	Adhesive
*b	2.0 to 3.0 mm (0.0787 to 0.1181 in.) Bead of Adhesive

Apply a 2.0 to 3.0 mm (0.0787 to 0.1181 in.) bead of adhesive (3M DP-105 or equivalent) to each new roof drip side finish moulding clip.

HINT:

Adhesive strength (tensile strength): 13.7 MPa (140.0 kgf/cm², 1987 psi) or more (when the temperature is 23°C (73°F).)

Install new roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the roof drip side finish moulding clips.

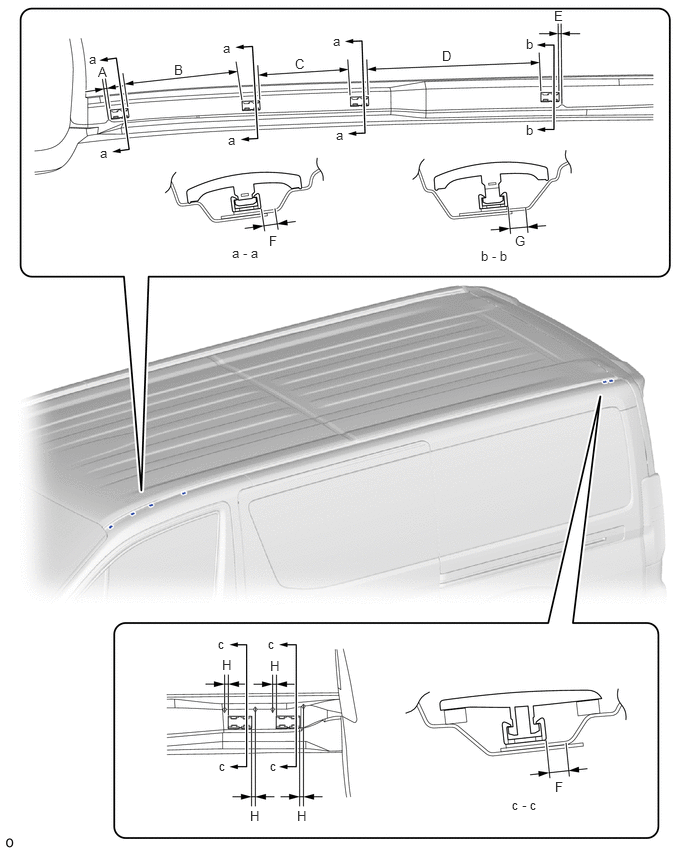

2.313,6.844 2.469,7.042 0.156,0.198 10 false H 1.813,0.646 1.969,0.844 0.156,0.198 10 false B 3.073,0.583 3.229,0.781 0.156,0.198 10 false C 5.781,8.115 5.938,8.313 0.156,0.198 10 false F 0.927,0.531 1.083,0.729 0.156,0.198 10 false a 4.604,0.5 4.76,0.698 0.156,0.198 10 false D 2.271,6.625 2.427,6.823 0.156,0.198 10 false c 1.042,1.51 1.198,1.708 0.156,0.198 10 false a 2.323,0.417 2.479,0.615 0.156,0.198 10 false a 2.375,1.375 2.531,1.573 0.156,0.198 10 false a 3.5,1.323 3.656,1.521 0.156,0.198 10 false a 3.469,0.344 3.625,0.542 0.156,0.198 10 false a 5.479,0.375 5.635,0.573 0.156,0.198 10 false b 5.479,1.271 5.635,1.469 0.156,0.198 10 false b 2.281,7.896 2.438,8.094 0.156,0.198 10 false c 1.021,0.667 1.177,0.865 0.156,0.198 10 false A 5.771,0.083 5.927,0.281 0.156,0.198 10 false E 2.802,2.427 2.958,2.625 0.156,0.198 10 false F 5.365,2.427 5.521,2.625 0.156,0.198 10 false G 2.813,6.854 2.969,7.052 0.156,0.198 10 false H 2.604,8.417 2.76,8.615 0.156,0.198 10 false H 3.094,8.417 3.25,8.615 0.156,0.198 10 false H 2.792,6.625 2.948,6.823 0.156,0.198 10 false c 2.813,7.896 2.969,8.094 0.156,0.198 10 false c 2.417,2.552 2.99,2.75 0.573,0.198 10 false a - a 5.01,2.583 5.583,2.781 0.573,0.198 10 false b - b 5.333,8.302 5.906,8.5 0.573,0.198 10 false c - c

Standard Value:

Area	Dimensions	Area	Dimensions
A	0 to 2.0 mm (0 to 0.0787 in.)	B	129.7 mm (5.11 in.)
C	102.4 mm (4.03 in.)	D	196 mm (7.72 in.)
E	1.0 mm (0.0394 in.)	F	4.3 to 5.3 mm (0.169 to 0.209 in.)
G	5.5 to 6.5 mm (0.217 to 0.256 in.)	H	3.0 mm (0.118 in.)

0,0 0,0 false

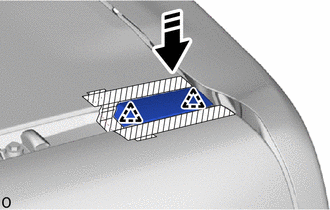

Install in this Direction

Attach the clip and install the roof drip side finish quarter moulding LH.

0,0 0,0 false

Install in this Direction

Attach the clip and install the roof drip side moulding LH.
