EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75558F 1.REMOVE ROOF DRIP SIDE FINISH QUARTER MOULDING LH

a.

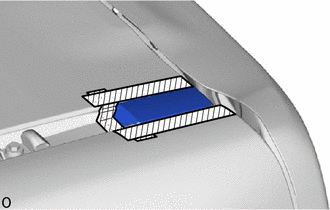

B525682C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the roof drip side finish quarter moulding LH.


b.

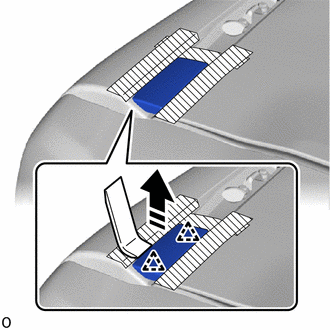

B525683C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip and remove the roof drip side finish quarter moulding LH.

NOTICE:
·

Do not remove the roof drip side finish moulding clip.

·

If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.




Hide 75552H 2.REMOVE ROOF DRIP SIDE MOULDING LH (for Wagon)

a.

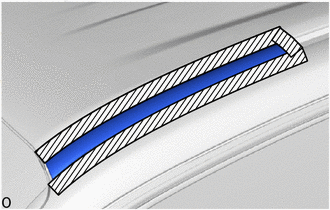

B552380C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the roof drip side moulding LH.


b.
B552381C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip and remove the roof drip side moulding LH.

NOTICE:
·

Do not remove the roof drip side finish moulding clip.

·

If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
