RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0388042 MUDGUARD(for Front Side) A

EXTERIOR PANELS / TRIM  MUDGUARD(for Front Side)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 76622D 1.REMOVE FRONT FENDER MUDGUARD LH

a.

except Wagon:

i.

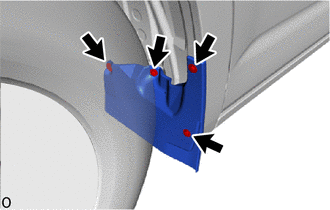

B524276

Remove the 4 screws and front fender mudguard LH.



b.

for Wagon:

i.
B551737

Remove the 3 screws and front fender mudguard LH.
