EXTERIOR PANELS / TRIM  REAR SPOILER  INSTALLATION

76085 1.INSTALL REAR SPOILER SUB-ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

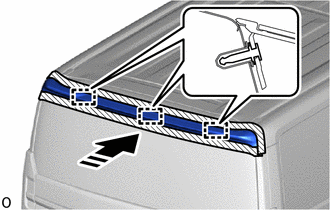

Attach the pin and install the rear spoiler sub-assembly as shown in the illustration.

b.

Install the 4 bolts.

Torque:

5.0 N*m (51 kgf*cm, 44 in.*lbf)

c.

Install the 2 grommets.

d.

Remove the protective tape.

85110R 2.INSTALL REAR WIPER MOTOR ASSEMBLY

3.INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

67760A 4.INSTALL BACK DOOR UPPER TRIM BOARD ASSEMBLY

67938A 5.INSTALL BACK DOOR SIDE GARNISH LH

67937B 6.INSTALL BACK DOOR SIDE GARNISH RH
