RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397102 BACK DOOR OUTSIDE GARNISH(for Wagon) A

EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH(for Wagon) DISASSEMBLY

PROCEDURE

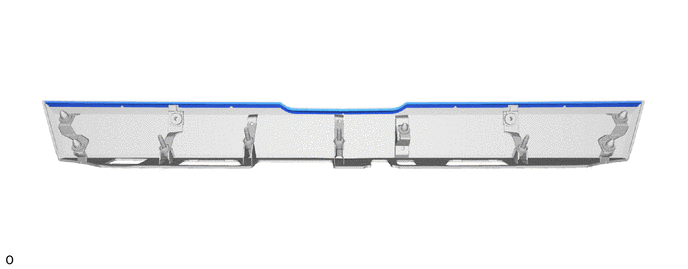

Hide Display 76825 1.REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: When removing the back door outside garnish protector, if the double-sided tape is difficult to remove, heat the adhesive of the back door outside garnish protector and back door outside garnish sub-assembly using a heat light.

Standard Value:

Part	Temperature
Back Door Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)
Back Door Outside Garnish Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish sub-assembly and back door outside garnish protector excessively.

Remove the back door outside garnish protector.

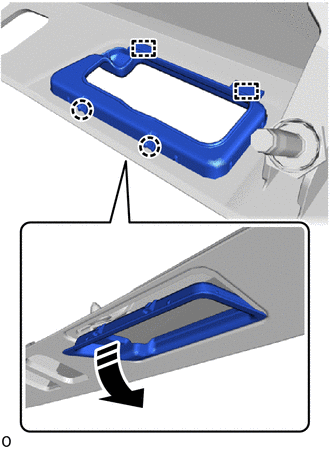

Hide Display 76822B 2.REMOVE BACK DOOR GARNISH SIDE PROTECTOR LH

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the back door garnish side protector LH.

Hide Display 76821B 3.REMOVE BACK DOOR GARNISH SIDE PROTECTOR RH

HINT:: Use the same procedure described for the LH side.

Hide Display 76821 4.REMOVE BACK DOOR UPPER GARNISH MOULDING PROTECTOR

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When removing the back door upper garnish moulding protector, if the double-sided tape is difficult to remove, heat the adhesive of the back door upper garnish moulding protector and back door upper outside garnish sub-assembly LH using a heat light.

Standard Value:

Part	Temperature
Back Door Upper Outside Garnish Sub-assembly LH	20 to 30°C (68 to 86°F)
Back Door Upper Garnish Moulding Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door upper outside garnish sub-assembly LH and back door upper garnish moulding protector excessively.

Remove the back door upper garnish moulding protector.

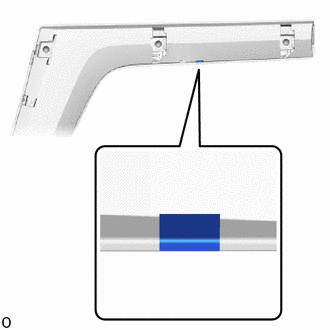

Hide Display 76821C 5.REMOVE BACK DOOR GARNISH SIDE PROTECTOR RH

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When removing the back door garnish side protector RH, if the double-sided tape is difficult to remove, heat the adhesive of the back door garnish side protector RH and back door upper outside garnish sub-assembly LH using a heat light.

Standard Value:

Part	Temperature
Back Door Upper Outside Garnish Sub-assembly LH	20 to 30°C (68 to 86°F)
Back Door Garnish Side Protector RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door upper outside garnish sub-assembly LH and back door garnish side protector RH excessively.

Remove the back door garnish side protector RH.

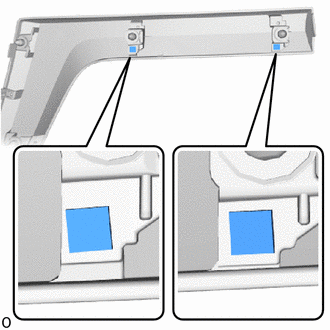

Hide Display 76825H 6.REMOVE NO. 1 BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When removing the No. 1 back door outside garnish protector, if the double-sided tape is difficult to remove, heat the adhesive of the No. 1 back door outside garnish protector and back door upper outside garnish sub-assembly LH using a heat light.

Standard Value:

Part	Temperature
Back Door Upper Outside Garnish Sub-assembly LH	20 to 30°C (68 to 86°F)
No. 1 Back Door Outside Garnish Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door upper outside garnish sub-assembly LH and No. 1 back door outside garnish protector excessively.

Remove the 2 No. 1 back door outside garnish protectors.

Hide Display 76825J 7.REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When removing the No. 2 back door outside garnish protector, if the double-sided tape is difficult to remove, heat the adhesive of the No. 2 back door outside garnish protector and back door upper outside garnish sub-assembly LH using a heat light.

Standard Value:

Part	Temperature
Back Door Upper Outside Garnish Sub-assembly LH	20 to 30°C (68 to 86°F)
No. 2 Back Door Outside Garnish Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door upper outside garnish sub-assembly LH and No. 2 back door outside garnish protector excessively.

Remove the No. 2 back door outside garnish protector.

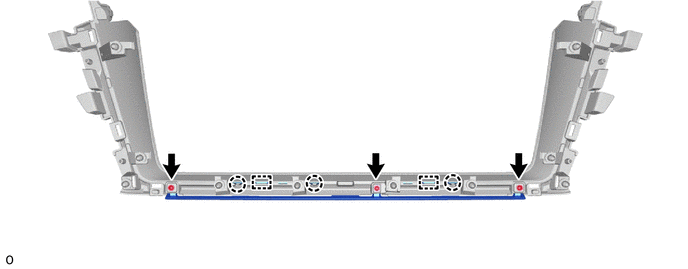

Hide Display 76812 8.REMOVE BACK DOOR LOWER OUTSIDE GARNISH

Remove the 3 screws.

Detach the claw and guide and remove the back door lower outside garnish.

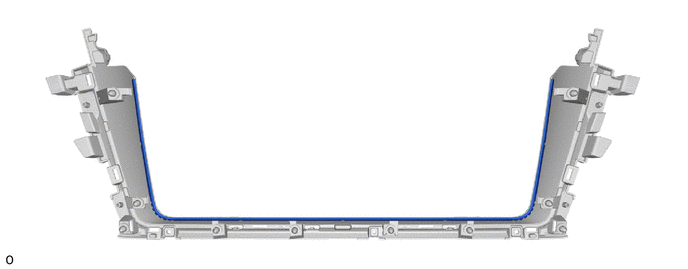

Hide Display 76822A 9.REMOVE BACK DOOR LOWER GARNISH MOULDING PROTECTOR

HINT:: When removing the back door lower garnish moulding protector, if the double-sided tape is difficult to remove, heat the adhesive of the back door lower garnish moulding protector and back door lower outside garnish sub-assembly using a heat light.

Standard Value:

Part	Temperature
Back Door Lower Outside Garnish Sub-assembly	20 to 30°C (68 to 86°F)
Back Door Lower Garnish Moulding Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door lower outside garnish sub-assembly and back door lower garnish moulding protector excessively.

Remove the back door lower garnish moulding protector.

Hide Display 76825C 10.REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: When removing the back door outside garnish protector, if the double-sided tape is difficult to remove, heat the adhesive of the back door outside garnish protector and back door lower outside garnish using a heat light.

Standard Value:

Part	Temperature
Back Door Lower Outside Garnish	20 to 30°C (68 to 86°F)
Back Door Outside Garnish Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door lower outside garnish and back door outside garnish protector excessively.

Remove the 3 back door outside garnish protectors.
