EXTERIOR PANELS / TRIM ENGINE HOOD MOULDING(for Wagon) DISASSEMBLY

PROCEDURE

Hide Display 75776D 1.REMOVE FRONT HOOD MOULDING END COVER LH

HINT:: When removing the front hood moulding end cover LH, if the double-sided tape is difficult to remove, heat the adhesive of the front hood moulding end cover LH and front hood moulding assembly using a heat light.

Standard Value:

Part	Temperature
Front Hood Moulding Assembly	20 to 30°C (68 to 86°F)
Front Hood Moulding End Cover LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the front hood moulding assembly and front hood moulding end cover LH excessively.

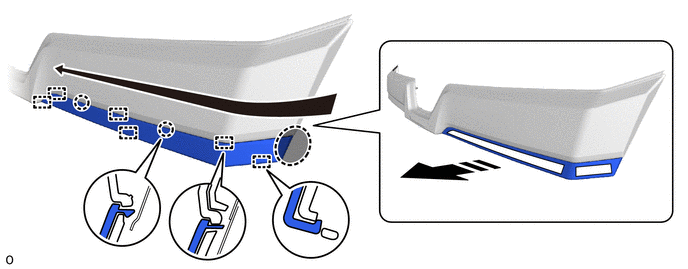

Detach the guide and claw and double-sided tape to remove the front hood moulding end cover LH as shown in the illustration.

5.813,1.771 5.958,2.031 5.958,2.031 6.031,1.792 true 5.906,2.052 6.219,2.25 0.313,0.198 10 false *a

*a	Double-sided Tape	-	-
	Remove in this Direction		Order of Removal

Hide Display 75775E 2.REMOVE FRONT HOOD MOULDING END COVER RH

HINT:: ·

Use the same procedure described for the LH side.

·

Do not reuse the front hood moulding end cover RH.

Hide Display 75777E 3.REMOVE FRONT HOOD MOULDING PAD

HINT:: When removing the front hood moulding pad, if the double-sided tape is difficult to remove, heat the adhesive of the front hood moulding pad and front hood moulding assembly using a heat light.
