EXTERIOR PANELS / TRIM  ENGINE HOOD MOULDING(for Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS


PROCEDURE

Hide 75770 1.INSTALL FRONT HOOD MOULDING ASSEMBLY

a.
B551931C01
0,0 0,0 false
V113147

Install in this Direction

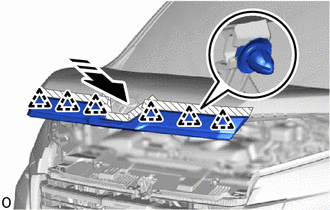

Attach the clip and install the front hood moulding assembly as shown in the illustration.


b.
B551929

Install the 8 nuts.
