RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397099 ENGINE HOOD MOULDING(except Wagon) A

EXTERIOR PANELS / TRIM  ENGINE HOOD MOULDING(except Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS


PROCEDURE

Hide 75770 1.INSTALL FRONT HOOD MOULDING ASSEMBLY

a.
B524304C01
0,0 0,0 false
V113147

Install in this Direction

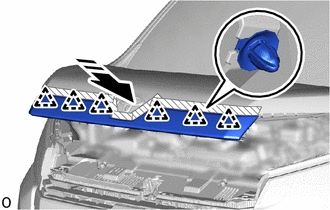

Attach the clip and install the front hood moulding assembly as shown in the illustration.


b.
B524300

Install the 8 nuts.
