RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397099 ENGINE HOOD MOULDING(except Wagon) A

EXTERIOR PANELS / TRIM  ENGINE HOOD MOULDING(except Wagon)  DISASSEMBLY


PROCEDURE

Hide 75777E 1.REMOVE FRONT HOOD MOULDING PAD

HINT:

When removing the front hood moulding pad, if the double-sided tape is difficult to remove, heat the adhesive of the front hood moulding pad and front hood moulding assembly using a heat light.


Standard Value:
Part Temperature
Front Hood Moulding Assembly 20 to 30°C (68 to 86°F)
Front Hood Moulding Pad 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front hood moulding assembly and front hood moulding pad excessively.


a.

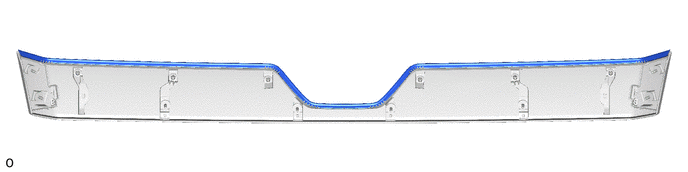

Remove the front hood moulding pad.

B524302
