RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397099 ENGINE HOOD MOULDING(except Wagon) A

EXTERIOR PANELS / TRIM  ENGINE HOOD MOULDING(except Wagon)  REMOVAL


PROCEDURE

Hide 75770 1.REMOVE FRONT HOOD MOULDING ASSEMBLY

a.

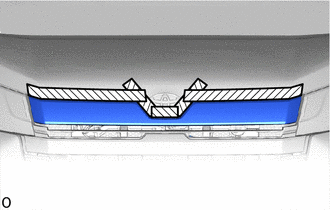

B524299C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front hood moulding assembly.


b.

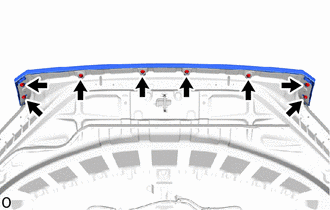

B524300

Remove the 8 nuts.


c.

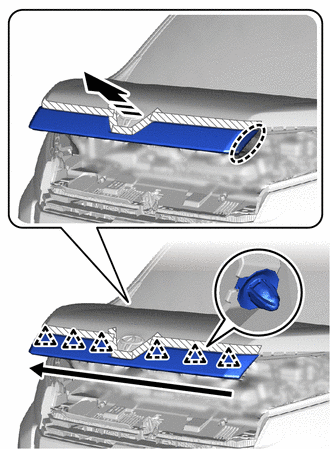

B555204C02
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction
V100135

Order of Removal


Detach the clip as shown in the illustration and remove the front hood moulding assembly as shown in the illustration.
