EXTERIOR PANELS / TRIM  REAR BUMPER(for Wagon)  REASSEMBLY

52158C 1.INSTALL REAR BUMPER NO. 2 SIDE SUPPORT LH

a.

0,0 0,0 false

Install in this Direction

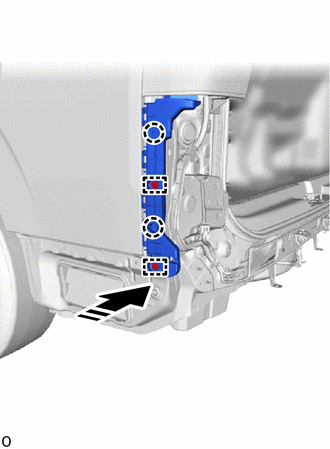

Attach the guide and claw and install the rear bumper No. 2 side support LH as shown in the illustration.

b.

Attach the clip.

52157A 2.INSTALL REAR BUMPER NO. 2 SIDE SUPPORT RH

52156A 3.INSTALL REAR BUMPER SIDE SUPPORT LH

52155A 4.INSTALL REAR BUMPER SIDE SUPPORT RH

61682A 5.INSTALL REAR WHEEL OPENING EXTENSION LH

61681C 6.INSTALL REAR WHEEL OPENING EXTENSION RH

76626D 7.INSTALL REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

76625D 8.INSTALL REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

52616 9.INSTALL REAR BUMPER ENERGY ABSORBER LH (w/ Bumper Reinforcement)

a.

0,0 0,0 false

	Install in this Direction
	Turn in this Direction

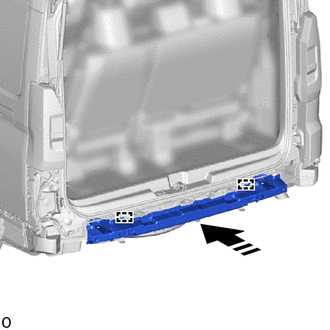

Insert the rib.

b.

Then, using a screwdriver, rotate and attach the clip and install the rear bumper energy absorber LH.

52615A 10.INSTALL REAR BUMPER ENERGY ABSORBER RH (w/ Bumper Reinforcement)

52023 11.INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY (w/ Bumper Reinforcement)

a.

0,0 0,0 false

Install in this Direction

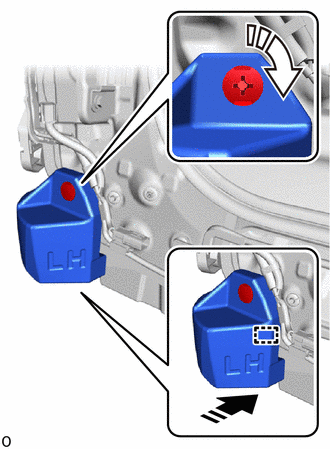

Attach the hook and temporarily install the rear bumper reinforcement sub-assembly.

b.

Install the 6 bolts.

Torque:

34 N*m (347 kgf*cm, 25 ft.*lbf)

52016A 12.INSTALL REAR BUMPER ARM SUB-ASSEMBLY LH (w/ Rear Bumper Arm)

52015A 13.INSTALL REAR BUMPER ARM SUB-ASSEMBLY RH (w/ Rear Bumper Arm)

52153B 14.INSTALL REAR BUMPER EXTENSION LH

a.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Attach the guide and clip and install the rear bumper extension LH as shown in the illustration.

b.

Install the 3 outside moulding retainers as shown in the illustration.

c.

Install the screw.

52152B 15.INSTALL REAR BUMPER EXTENSION RH

89348Y 16.INSTALL REAR ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

HINT:

When installing the rear ultrasonic sensor clip, heat the rear bumper cover using a heat light.

Standard Value:

Part	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

a.

When reusing the rear bumper cover:

i.

Using a heat light, heat the rear bumper cover surface.

ii.

Remove any remaining double-sided tape from the rear bumper cover.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:

·

Installing the rear ultrasonic sensor clip with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean a new rear bumper cover surface.

b.

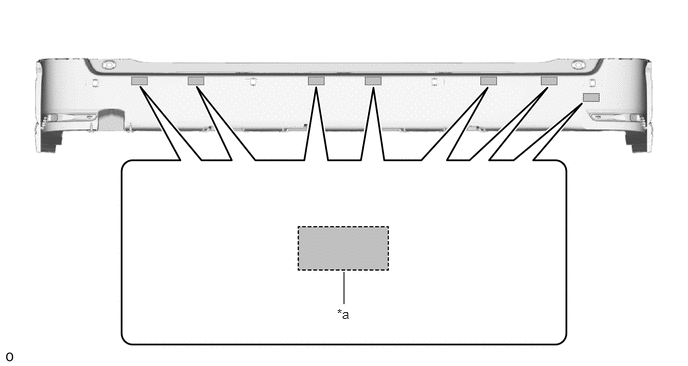

Apply primer to the rear bumper cover on the installation area of the rear ultrasonic sensor clip using a brush or felt.

3.583,3.167 3.583,2.833 false 3.51,3.188 3.823,3.385 0.313,0.198 10 false *a

*a	Scribed Line	-	-
	Primer Application	-	-

NOTICE:

·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear ultrasonic sensor clip has been attached.

c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.

Recommended drying time:

10 minutes or more (at 23°C (73°F))

d.

Remove the release paper of a new rear ultrasonic sensor clip trying not to touch the adhesional surface.

e.

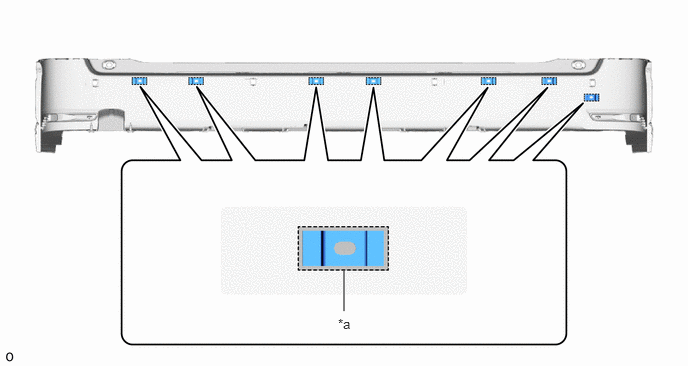

Install the 7 rear ultrasonic sensor clips in the position shown in the illustration.

HINT:

Press the rear ultrasonic sensor clip firmly to install it.

3.583,3.24 3.583,2.823 true 3.521,3.292 3.833,3.49 0.313,0.198 10 false *a

*a

Scribed Line

-

-

82182 17.INSTALL NO. 2 LUGGAGE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

a.

w/ Rear Bumper Arm:

i.

Attach the wire harness clamp and install the No. 2 luggage room wire.

b.

w/o Rear Bumper Arm:

i.

Attach the wire harness clamp and install the No. 2 luggage room wire.

89348S 18.INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

89348R 19.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

89348D 20.INSTALL ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

89342A 21.INSTALL REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89342 22.INSTALL REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)
