EXTERIOR PANELS / TRIM  REAR BUMPER(for Wagon)  DISASSEMBLY

89342 1.REMOVE REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89342A 2.REMOVE REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89348D 3.REMOVE ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

89348R 4.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

89348S 5.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

82182 6.REMOVE NO. 2 LUGGAGE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

a.

w/ Rear Bumper Arm:

i.

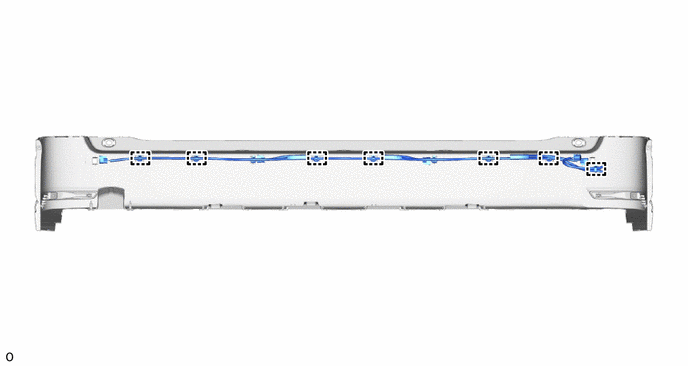

Detach the wire harness clamp and remove the No. 2 luggage room wire.

b.

w/o Rear Bumper Arm:

i.

Detach the wire harness clamp and remove the No. 2 luggage room wire.

89348Y 7.REMOVE REAR ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

HINT:

When removing the rear ultrasonic sensor clip, if the double-sided tape is difficult to remove, heat the adhesive of the rear ultrasonic sensor clip and rear bumper cover using a heat light.

Standard Value:

Part	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)
Rear Ultrasonic Sensor Clip	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the rear ultrasonic sensor clip excessively.

a.

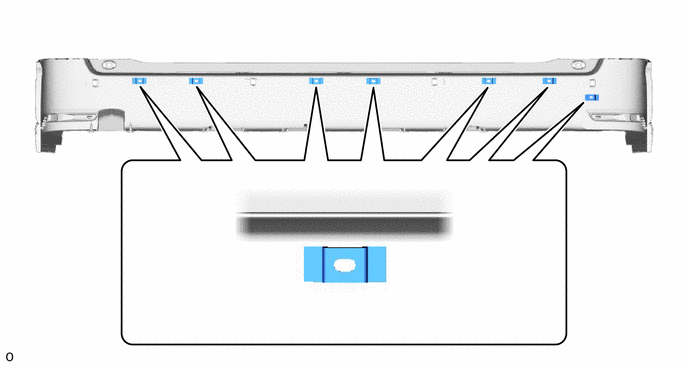

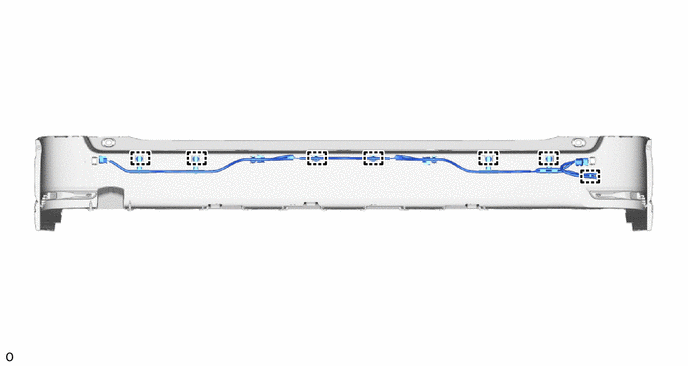

Remove the 7 rear ultrasonic sensor clips.

52153B 8.REMOVE REAR BUMPER EXTENSION LH

a.

Remove the screw.

b.

Remove the 3 outside moulding retainers.

c.

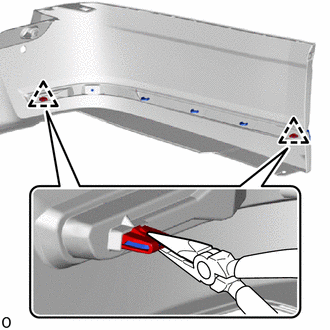

Using pliers, detach the clip.

d.

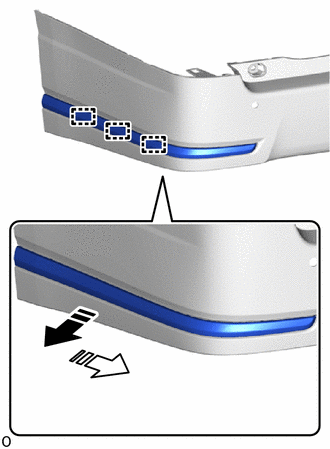

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the guide and remove the rear bumper extension LH as shown in the illustration.

52152B 9.REMOVE REAR BUMPER EXTENSION RH

52016A 10.REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH (w/ Rear Bumper Arm)

52015A 11.REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH (w/ Rear Bumper Arm)

52023 12.REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY (w/ Bumper Reinforcement)

a.

Remove the 6 bolts.

b.

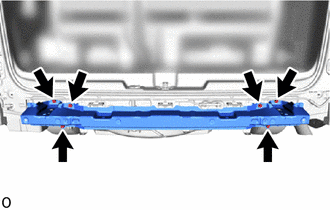

0,0 0,0 false

Remove in this Direction

Detach the hook and remove the rear bumper reinforcement sub-assembly.

52616 13.REMOVE REAR BUMPER ENERGY ABSORBER LH (w/ Bumper Reinforcement)

a.

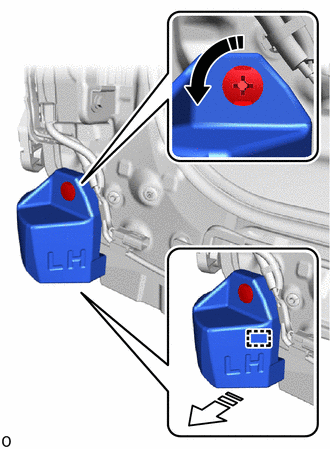

0,0 0,0 false

	Turn in this Direction
	Remove in this Direction

Using a screwdriver, rotate and detach the clip.

b.

Detach the inserted rib and remove the rear bumper energy absorber LH.

52615A 14.REMOVE REAR BUMPER ENERGY ABSORBER RH (w/ Bumper Reinforcement)

76626D 15.REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

76625D 16.REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

61682A 17.REMOVE REAR WHEEL OPENING EXTENSION LH

61681C 18.REMOVE REAR WHEEL OPENING EXTENSION RH

52156A 19.REMOVE REAR BUMPER SIDE SUPPORT LH

52155A 20.REMOVE REAR BUMPER SIDE SUPPORT RH

52158C 21.REMOVE REAR BUMPER NO. 2 SIDE SUPPORT LH

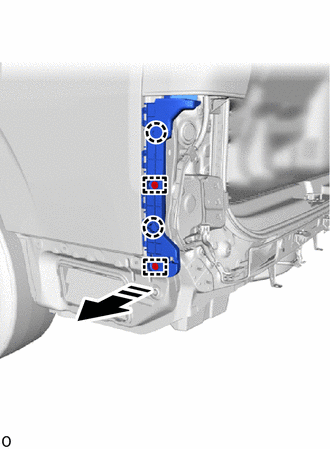

a.

0.948,1.719 1.177,1.917 0.229,0.198 10 true *a

*a	90°
	Rotation in this Direction

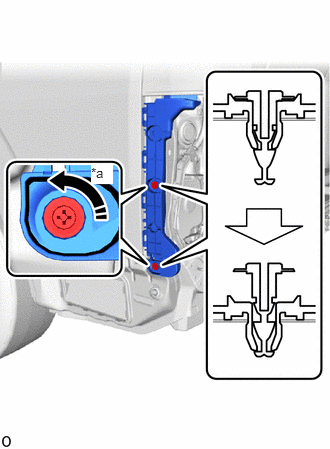

Using a screwdriver, turn the clip 90° and detach the clip as shown in the illustration.

b.

0,0 0,0 false

Remove in this Direction

Detach the guide and claw and remove the rear bumper No. 2 side support LH as shown in the illustration.

52157A 22.REMOVE REAR BUMPER NO. 2 SIDE SUPPORT RH
