RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397093 FRONT BUMPER(except Wagon) A

EXTERIOR PANELS / TRIM FRONT BUMPER(except Wagon) REASSEMBLY

CAUTION / NOTICE / HINT

HINT:: A bolt without a torque specification is shown in the standard bolt chart.; Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

Hide Display 52116A 1.INSTALL FRONT BUMPER SIDE SUPPORT LH

0,0 0,0 false

	Install in this Direction
	Bolt
	Screw

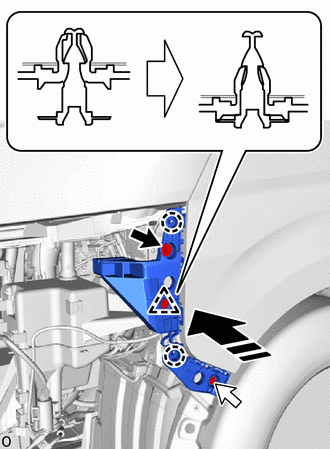

Attach the claw and clip and install the front bumper side support LH as shown in the illustration.

Install the bolt.

Install the screw.

Hide Display 52115A 2.INSTALL FRONT BUMPER SIDE SUPPORT RH

HINT:: Use the same procedure described for the LH side.

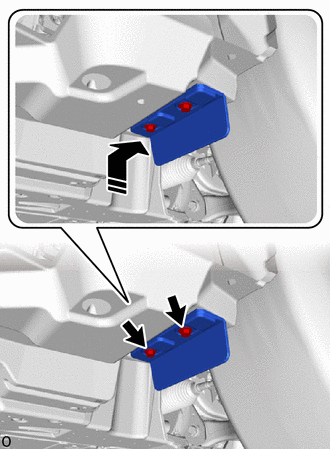

Hide Display 53852B 3.INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

0,0 0,0 false

Install in this Direction

Install the front wheel opening extension pad LH as shown in the illustration.

Install the 2 screws.

Hide Display 53851D 4.INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

HINT:: Use the same procedure described for the LH side.

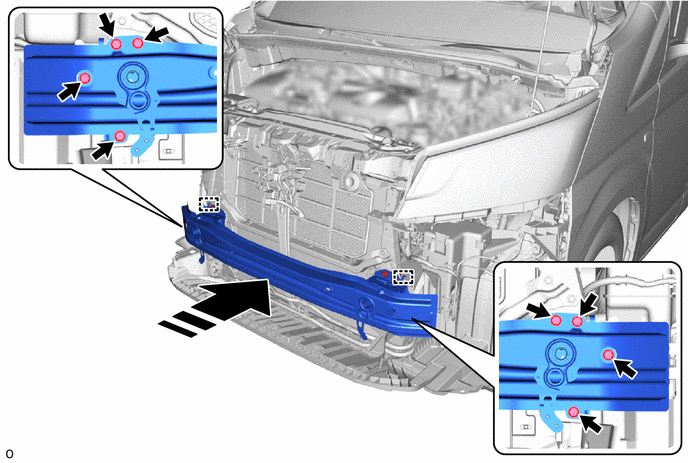

Hide Display 52021 5.INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

Attach the hook and install the front bumper reinforcement sub-assembly as shown in the illustration.

Install the 8 bolts.

Torque:: 65 N*m (663 kgf*cm, 48 ft.*lbf)

0,0 0,0 false

Install in this Direction

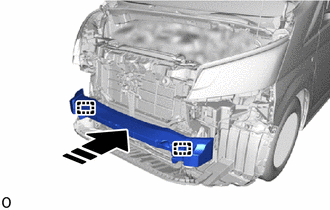

Hide Display 52611 6.INSTALL FRONT BUMPER ENERGY ABSORBER

0,0 0,0 false

Install in this Direction

Attach the guide and install the front bumper energy absorber as shown in the illustration.

Hide Display 53286F 7.INSTALL RADIATOR SIDE AIR SEAL LH

0,0 0,0 false

Install in this Direction

Attach the clip and claw and install the radiator side air seal LH as shown in the illustration.

Hide Display 53285N 8.INSTALL RADIATOR SIDE AIR SEAL RH

0,0 0,0 false

Install in this Direction

Attach the claw and install the radiator side air seal RH as shown in the illustration.

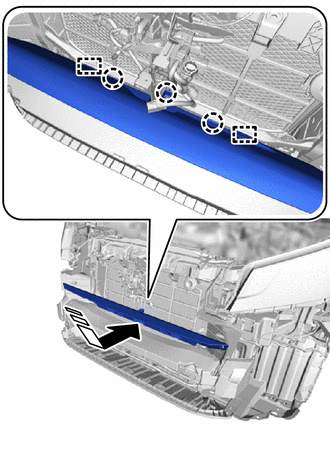

Hide Display 17311B 9.INSTALL NO. 1 AIR INLET DUCT (for 1GD-FTV)

0,0 0,0 false

Install in this Direction

Attach the guide and claw and install the No. 1 air inlet duct as shown in the illustration.

Install the 2 clips.

Hide Display 89347B 10.INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>INSTALLATION201906,999999,_56,_079315,_0385741,RM100000001IMZ6_02_0015,

Hide Display 89341K 11.INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>INSTALLATION201906,999999,_56,_079315,_0385741,RM100000001IMZ6_02_0008,

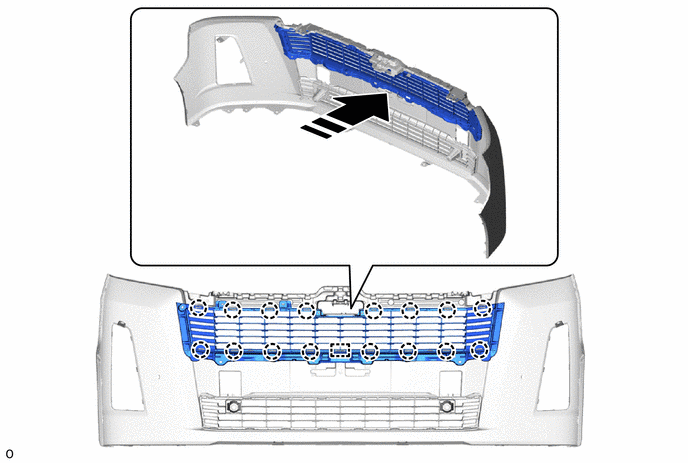

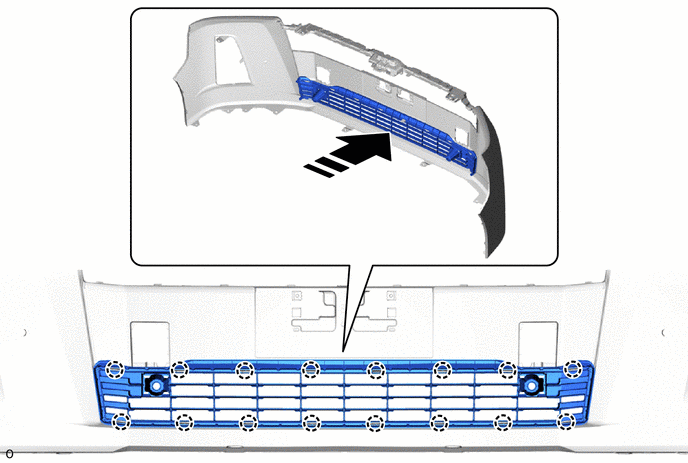

Hide Display 53112E 12.INSTALL LOWER NO. 1 RADIATOR GRILLE

Attach the claw and install the lower No. 1 radiator grille as shown in the illustration.

0,0 0,0 false

Install in this Direction

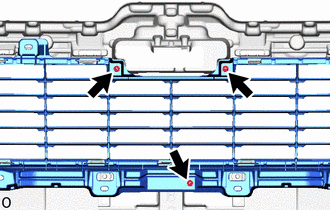

Hide Display 53113E 13.INSTALL LOWER NO. 2 RADIATOR GRILLE

Attach the claw and guide and install the lower No. 2 radiator grille as shown in the illustration.

0,0 0,0 false

Install in this Direction

Install the 3 screws.

Hide Display 81482C 14.INSTALL FOG LIGHT COVER LH (w/o Fog Light)

0,0 0,0 false

Install in this Direction

Attach the claw and install the fog light cover LH as shown in the illustration.

Install the 2 clips.

Hide Display 81481E 15.INSTALL FOG LIGHT COVER RH (w/o Fog Light)

HINT:: Use the same procedure described for the LH side.

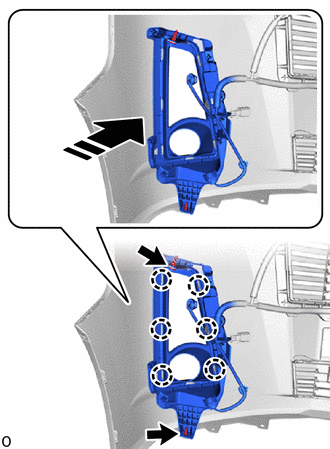

Hide Display 81482C 16.INSTALL FOG LIGHT COVER LH (w/ Fog Light)

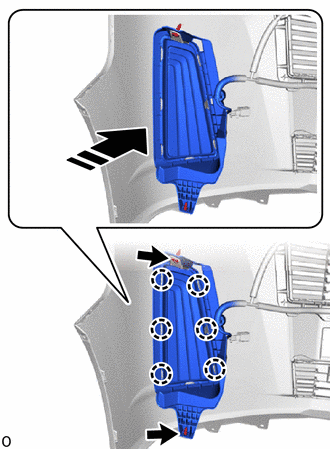

w/o Clearance Light:

0,0 0,0 false

Install in this Direction

Attach the claw and install the fog light cover LH as shown in the illustration.

ii.

Install the 2 clips.

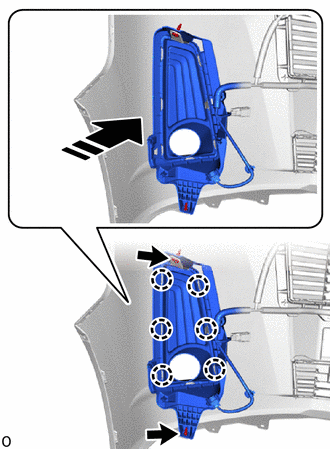

w/ Clearance Light:

0,0 0,0 false

Install in this Direction

Attach the claw and install the fog light cover LH as shown in the illustration.

ii.

Install the 2 clips.

0,0 0,0 false

Install in this Direction

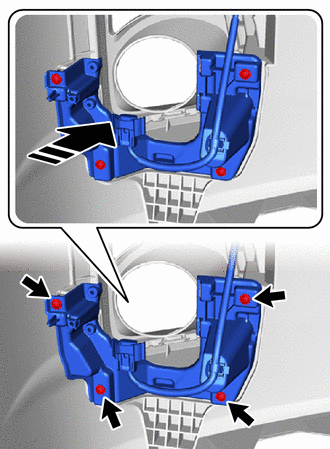

Install the fog light bracket LH with the 4 screws as shown in the illustration.

Hide Display 81481E 17.INSTALL FOG LIGHT COVER RH (w/ Fog Light)

HINT:: Use the same procedure described for the LH side.

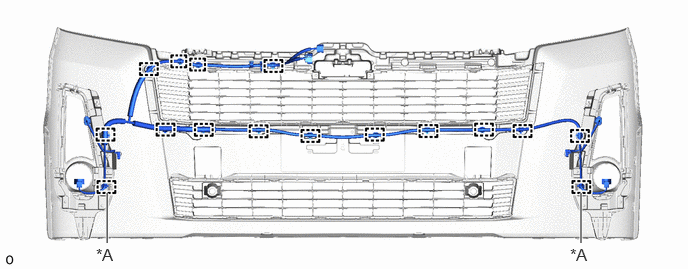

Hide Display 82113 18.INSTALL NO. 3 ENGINE ROOM WIRE (w/ Wire Harness)

Attach the clamp and install the No. 3 engine room wire.

1.115,2.531 1.115,2.01 true 6.052,2.531 6.052,2.01 true 1,2.552 1.375,2.792 0.375,0.24 12 false *A 5.938,2.552 6.313,2.792 0.375,0.24 12 false *A

w/ Fog Light

Hide Display 81620A 19.INSTALL CLEARANCE LIGHT ASSEMBLY LH (w/ Clearance Light)

Click hereVehicle Exterior>LIGHTING (EXT)>CLEARANCE LIGHT ASSEMBLY>INSTALLATION201906,999999,_59,_079256,_0384449,RM0000003TPAZO2_01_0029,

Hide Display 81610L 20.INSTALL CLEARANCE LIGHT ASSEMBLY RH (w/ Clearance Light)

HINT:: Use the same procedure described for the LH side.

Hide Display 81220 21.INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY (for Halogen Fog Light)>INSTALLATION201906,999999,_59,_079256,_0396104,RM100000001IFQ5_02_0001,

Hide Display 81210A 22.INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

HINT:: Use the same procedure described for the LH side.

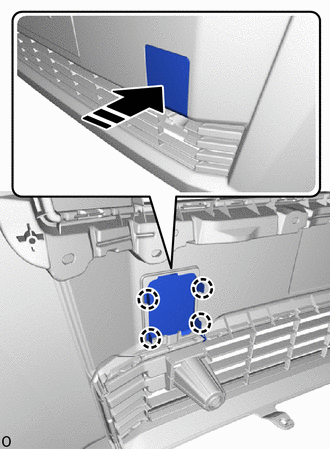

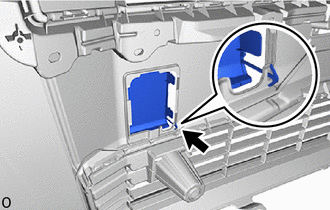

Hide Display 52128B 23.INSTALL FRONT BUMPER HOLE COVER LH

0,0 0,0 false

Fall Prevention Hook

Connect the fall prevention hook.

0,0 0,0 false

Install in this Direction

Attach the claw and install the front bumper hole cover LH as shown in the illustration.

Hide Display 52127D 24.INSTALL FRONT BUMPER HOLE COVER RH

HINT:: Use the same procedure described for the LH side.
