EXTERIOR PANELS / TRIM FRONT BUMPER(except Wagon) DISASSEMBLY

Hide Display 52128B 1.REMOVE FRONT BUMPER HOLE COVER LH

a.

0,0 0,0 false

Remove in this Direction

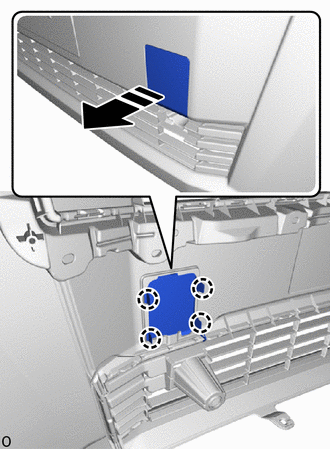

Detach the claw as shown in the illustration.

b.

0,0 0,0 false

Fall Prevention Hook

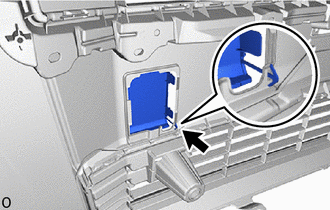

Disconnect the fall prevention hook and remove the front bumper hole cover LH.

Hide Display 52127D 2.REMOVE FRONT BUMPER HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 81620A 3.REMOVE CLEARANCE LIGHT ASSEMBLY LH (w/ Clearance Light)

Click hereVehicle Exterior>LIGHTING (EXT)>CLEARANCE LIGHT ASSEMBLY>REMOVAL201906,999999,_59,_079256,_0384449,RM0000003TPAZO0_01_0023,

Hide Display 81610L 4.REMOVE CLEARANCE LIGHT ASSEMBLY RH (w/ Clearance Light)

HINT:: Use the same procedure described for the LH side.

Hide Display 81220 5.REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY (for Halogen Fog Light)>REMOVAL201906,999999,_59,_079256,_0396104,RM100000001IFQ1_02_0002,

Hide Display 81210A 6.REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

HINT:: Use the same procedure described for the LH side.

Hide Display 81482C 7.REMOVE FOG LIGHT COVER LH (w/o Fog Light)

a.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Remove the 2 clips.

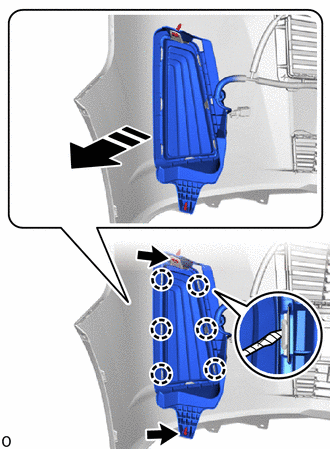

b.

Using a screwdriver, detach the claw and remove the fog light cover LH as shown in the illustration.

HINT:: Tape the screwdriver tip before use.

c.

w/o TOYOTA Parking Assist-sensor System:

i.

0,0 0,0 false

Protective Tape

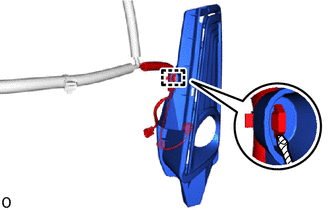

Using a screwdriver, detach the wire harness clamp.

HINT:: Tape the screwdriver tip before use.

Hide Display 81481E 8.REMOVE FOG LIGHT COVER RH (w/o Fog Light)

HINT:: Use the same procedure described for the LH side.

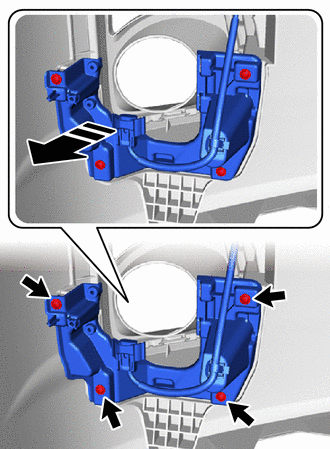

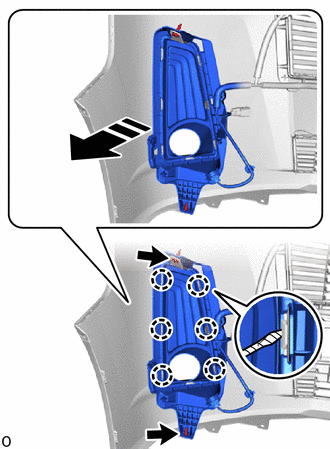

Hide Display 81482C 9.REMOVE FOG LIGHT COVER LH (w/ Fog Light)

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

b.

Remove the fog light bracket LH as shown in the illustration.

c.

0,0 0,0 false

Protective Tape

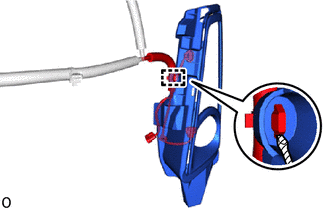

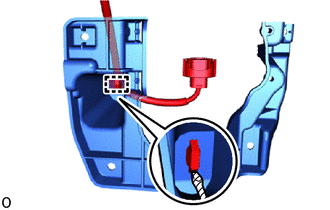

Using a screwdriver, detach the wire harness clamp.

HINT:: Tape the screwdriver tip before use.

d.

w/o Clearance Light:

i.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

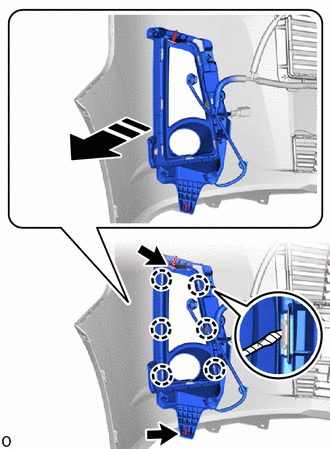

Remove the 2 clips.

ii.

Using a screwdriver, detach the claw and remove the fog light cover LH as shown in the illustration.

HINT:: Tape the screwdriver tip before use.

iii.

0,0 0,0 false

Protective Tape

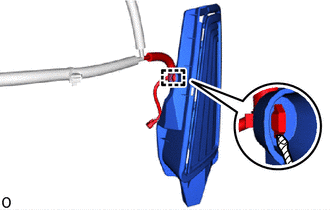

Using a screwdriver, detach the wire harness clamp.

HINT:: Tape the screwdriver tip before use.

e.

w/ Clearance Light:

i.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Remove the 2 clips.

ii.

Using a screwdriver, detach the claw and remove the fog light cover LH as shown in the illustration.

HINT:: Tape the screwdriver tip before use.

iii.

0,0 0,0 false

Protective Tape

Using a screwdriver, detach the wire harness clamp.

HINT:: Tape the screwdriver tip before use.

Hide Display 81481E 10.REMOVE FOG LIGHT COVER RH (w/ Fog Light)

HINT:: Use the same procedure described for the LH side.

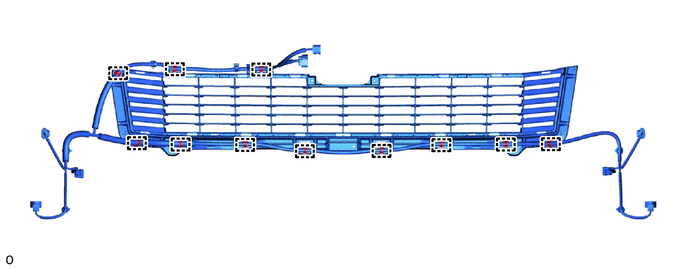

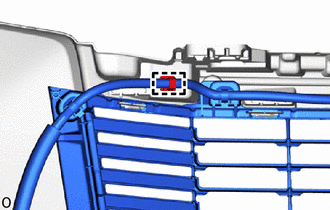

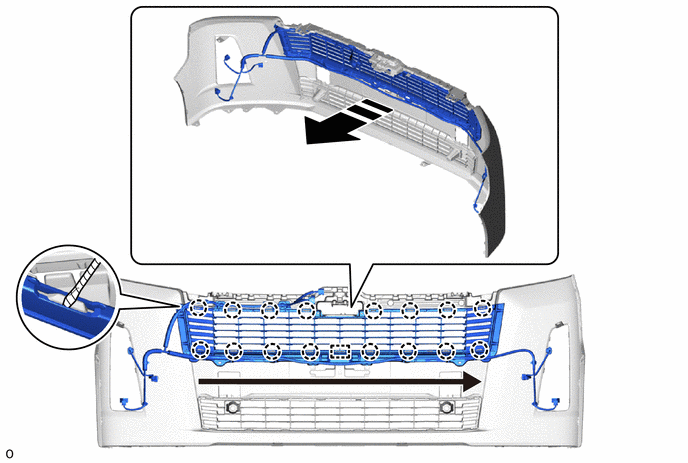

Hide Display 53113E 11.REMOVE LOWER NO. 2 RADIATOR GRILLE

a.

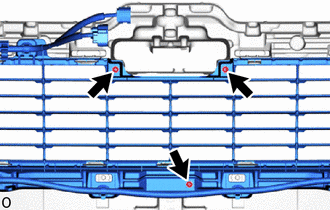

Remove the 3 screws.

b.

w/ Wire Harness:

i.

Detach the wire harness clamp.

c.

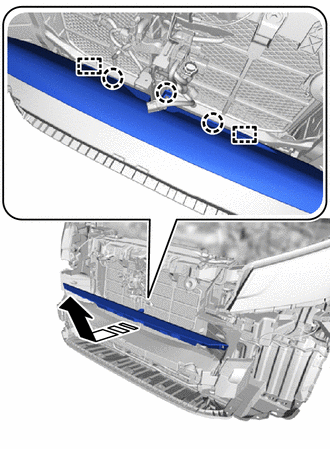

Using a screwdriver, detach the claw and guide and remove the lower No. 2 radiator grille as shown in the illustration.

HINT:: Tape the screwdriver tip before use.

0,0 0,0 false

	Remove in this Direction		Order of Removal
	Protective Tape	-	-

Hide Display 82113 12.REMOVE NO. 3 ENGINE ROOM WIRE (w/ Wire Harness)

a.

Detach the wire harness clamp and remove the No. 3 engine room wire.

Hide Display 53112E 13.REMOVE LOWER NO. 1 RADIATOR GRILLE

a.

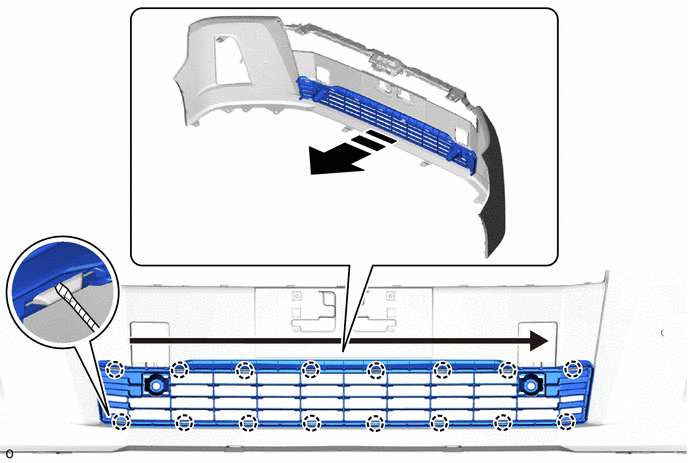

Using a screwdriver, detach the claw and remove the lower No. 1 radiator grille as shown in the illustration.

HINT:: Tape the screwdriver tip before use.

0,0 0,0 false

	Remove in this Direction		Order of Removal
	Protective Tape	-	-

Hide Display 89341K 14.REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL201906,999999,_56,_079315,_0385741,RM100000001IMZ4_02_0011,

Hide Display 89347B 15.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL201906,999999,_56,_079315,_0385741,RM100000001IMZ4_02_0010,

Hide Display 17311B 16.REMOVE NO. 1 AIR INLET DUCT (for 1GD-FTV)

a.

Remove the 2 clips.

b.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the No. 1 air inlet duct as shown in the illustration.

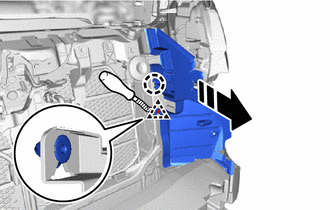

Hide Display 53286F 17.REMOVE RADIATOR SIDE AIR SEAL LH

a.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a clip remover, detach the clip and claw and remove the radiator side air seal LH as shown in the illustration.

HINT:: Tape the clip remover tip before use.

Hide Display 53285N 18.REMOVE RADIATOR SIDE AIR SEAL RH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the radiator side air seal RH as shown in the illustration.

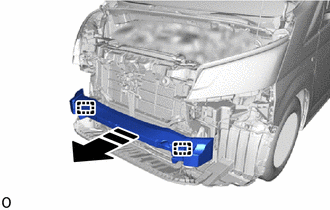

Hide Display 52611 19.REMOVE FRONT BUMPER ENERGY ABSORBER

a.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the front bumper energy absorber as shown in the illustration.

Hide Display 52021 20.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

a.

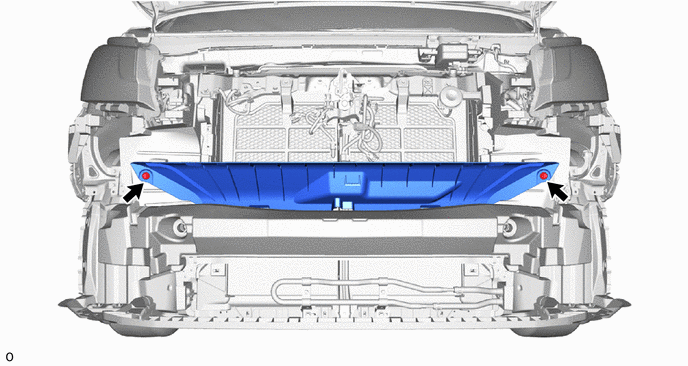

Remove the 8 bolts.

b.

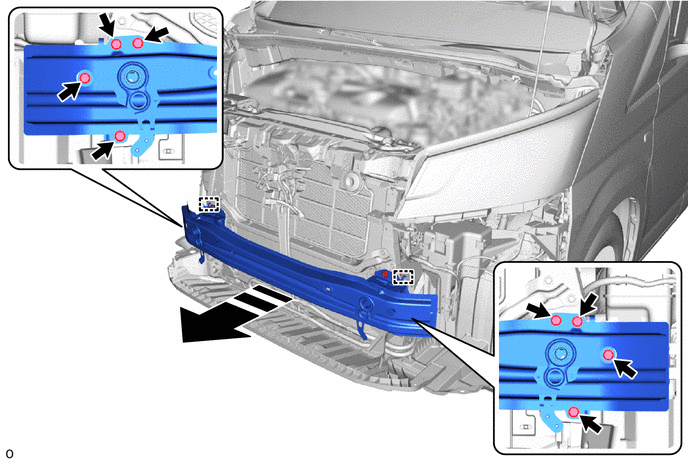

Detach the hook and remove the front bumper reinforcement sub-assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

-

Hide Display 53852B 21.REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

a.

0,0 0,0 false

Remove in this Direction

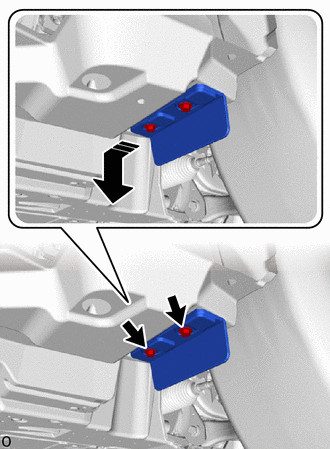

Remove the 2 screws.

b.

Remove the front wheel opening extension pad LH as shown in the illustration.

Hide Display 53851D 22.REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

HINT:: Use the same procedure described for the LH side.

Hide Display 52116A 23.REMOVE FRONT BUMPER SIDE SUPPORT LH

a.

1.042,3.823 1.354,4.021 0.313,0.198 10 false *a

*a	90°
	Rotation in this Direction
	Remove in this Direction
	Bolt
	Screw

Remove the bolt.

b.

Remove the screw.

c.

Using a screwdriver, turn the clip 90° and detach the clip and claw and remove the front bumper side retainer LH as shown in the illustration.

Hide Display 52115A 24.REMOVE FRONT BUMPER SIDE SUPPORT RH

HINT:: Use the same procedure described for the LH side.
