MIRROR (EXT)  OUTER MIRROR SWITCH  INSPECTION


PROCEDURE

Hide 84870A 1.INSPECT OUTER MIRROR SWITCH ASSEMBLY (for LHD)

a.

w/o Auto Power Retract Mirror:

i.

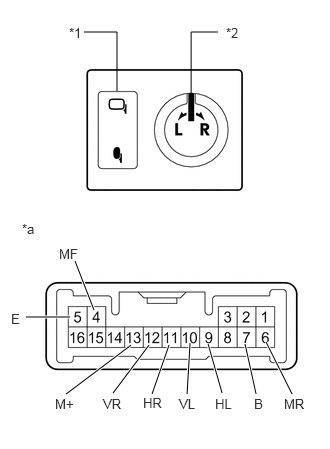

B545830C01
1.99,1 1.99,0.333 1.99,0.333 2.271,0.333 false 1.219,0.948 1.219,0.333 1.219,0.333 0.875,0.333 false 2.771,3.563 3.042,4.104 true 2.552,3.583 2.667,4.104 true 2.167,3.583 2.313,4.094 true 1.979,3.573 1.948,4.104 true 1.76,3.594 1.583,4.104 true 1.552,3.594 1.177,4.094 true 1.365,3.594 0.688,4.104 true 0.781,2.719 0.979,3.229 true 0.271,3.302 0.729,3.302 true 0.229,2.302 0.542,2.5 0.313,0.198 10 false *a 0.719,0.26 1.031,0.458 0.313,0.198 10 false *1 2.958,4.125 3.271,4.302 0.313,0.177 10 false MR 2.24,4.125 2.552,4.302 0.313,0.177 10 false HL 1.865,4.125 2.177,4.302 0.313,0.177 10 false VL 1.49,4.115 1.74,4.292 0.25,0.177 10 false HR 1.073,4.125 1.323,4.302 0.25,0.177 10 false VR 0.573,4.125 0.823,4.302 0.25,0.177 10 false M+ 2.646,4.125 2.896,4.302 0.25,0.177 10 false B 2.354,0.26 2.667,0.458 0.313,0.198 10 false *2 0.615,2.563 0.865,2.74 0.25,0.177 10 false MF 0.115,3.24 0.365,3.417 0.25,0.177 10 false E
*1 Mirror Retract Switch
*2 Mirror Select Switch
*a Component without harness connected
(Outer Mirror Switch Assembly)


Check the mirror retract switch.

1.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (B) - 4 (MF)
5 (E) - 6 (MR) 		Return position Below 1 Ω
7 (B) - 4 (MF)
5 (E) - 6 (MR) 		Driving position 10 kΩ or higher
5 (E) - 4 (MF)
7 (B) - 6 (MR) 		Retract position Below 1 Ω


If the result is not as specified, replace the outer mirror switch assembly.



ii.

Check the mirror select switch and mirror adjust switch.

1.

Select the mirror select switch to the L position.

2.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
10 (VL) - 7 (B)
13 (M+) - 5 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
10 (VL) - 5 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
9 (HL) - 7 (B)
13 (M+) - 5 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
9 (HL) - 5 (E) 		Right Below 2 Ω
Off 10 kΩ or higher


3.

Select the mirror select switch to the R position.

4.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
12 (VR) - 7 (B)
13 (M+) - 5 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
12 (VR) - 5 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
11 (HR) - 7 (B)
13 (M+) - 5 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
11 (HR) - 5 (E) 		Right Below 2 Ω
Off 10 kΩ or higher





b.

w/ Auto Power Retract Mirror:

i.

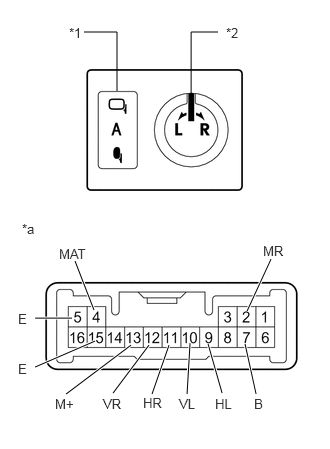

B551873C01
1.99,1 1.99,0.333 1.99,0.333 2.271,0.333 false 1.219,0.948 1.219,0.333 1.219,0.333 0.875,0.333 false 2.573,3.24 2.823,2.698 true 2.552,3.583 2.667,4.104 true 2.167,3.583 2.313,4.094 true 1.979,3.573 1.948,4.104 true 1.76,3.594 1.583,4.104 true 1.552,3.594 1.177,4.094 true 1.365,3.594 0.688,4.104 true 0.781,2.719 0.979,3.229 true 0.365,3.823 0.99,3.552 true 0.365,3.313 0.75,3.313 true 0.229,2.302 0.542,2.5 0.313,0.198 10 false *a 0.719,0.26 1.031,0.458 0.313,0.198 10 false *1 2.74,2.531 3.052,2.708 0.313,0.177 10 false MR 2.24,4.125 2.552,4.302 0.313,0.177 10 false HL 1.865,4.125 2.177,4.302 0.313,0.177 10 false VL 1.49,4.115 1.74,4.292 0.25,0.177 10 false HR 1.073,4.125 1.323,4.302 0.25,0.177 10 false VR 0.573,4.125 0.823,4.302 0.25,0.177 10 false M+ 2.646,4.125 2.896,4.302 0.25,0.177 10 false B 2.354,0.26 2.667,0.458 0.313,0.198 10 false *2 0.615,2.563 1.073,2.74 0.458,0.177 10 false MAT 0.188,3.76 0.438,3.938 0.25,0.177 10 false E 0.188,3.24 0.438,3.417 0.25,0.177 10 false E
*1 Mirror Retract Switch
*2 Mirror Select Switch
*a Component without harness connected
(Outer Mirror Switch Assembly)


Check the mirror retract switch.

1.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (MAT) - 5 (E)
2 (MR) - 5 (E) 		Return position 10 kΩ or higher
4 (MAT) - 5 (E) AUTO position Below 33 Ω
2 (MR) - 5 (E) Retract position Below 33 Ω


If the result is not as specified, replace the outer mirror switch assembly.



ii.

Check the mirror select switch and mirror adjust switch.

1.

Select the mirror select switch to the L position.

2.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
10 (VL) - 7 (B)
13 (M+) - 15 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
10 (VL) - 15 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
9 (HL) - 7 (B)
13 (M+) - 15 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
9 (HL) - 15 (E) 		Right Below 2 Ω
Off 10 kΩ or higher


3.

Select the mirror select switch to the R position.

4.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
12 (VR) - 7 (B)
13 (M+) - 15 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
12 (VR) - 15 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
11 (HR) - 7 (B)
13 (M+) - 15 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
13 (M+) - 7 (B)
11 (HR) - 15 (E) 		Right Below 2 Ω
Off 10 kΩ or higher





c.

Check that the LED illuminates.

i.

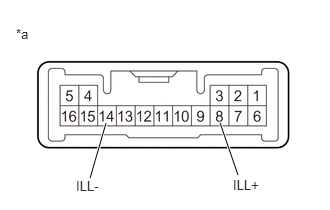

B504694C05
0.938,1.854 1.104,1.281 true 2.479,1.823 2.292,1.281 true 0.167,0.271 0.479,0.469 0.313,0.198 10 false *a 0.792,1.854 1.406,2.052 0.615,0.198 10 false ILL- 2.427,1.844 3.042,2.042 0.615,0.198 10 false ILL+
*a Component without harness connected
(Outer Mirror Switch Assembly)


Apply battery voltage to the outer mirror switch assembly and check that the LED illuminates.

OK:
Battery Connection Specified Condition
Battery positive (+) - 8 (ILL+)
Battery negative (-) - 14 (ILL-) 		LED illuminates




Hide 84870A 2.INSPECT OUTER MIRROR SWITCH ASSEMBLY (for RHD)

a.

w/o Auto Power Retract Mirror:

i.
B545831C01
2.167,1 2.167,0.333 2.167,0.333 2.448,0.333 false 1.417,0.99 1.417,0.323 1.417,0.323 1.073,0.323 false 2.167,3.583 2.688,4.073 true 1.979,3.573 2.302,4.083 true 1.771,3.604 1.906,4.063 true 1.552,3.594 1.458,4.083 true 1.365,3.594 1.063,4.073 true 0.385,3.781 0.729,3.542 true 3,2.729 2.781,3.219 true 2.344,2.719 2.542,3.229 true 0.979,3.552 0.583,4.073 true 0.229,2.302 0.542,2.5 0.313,0.198 10 false *a 2.51,0.219 2.823,0.417 0.313,0.198 10 false *1 0.125,3.708 0.438,3.885 0.313,0.177 10 false MR 0.99,4.104 1.302,4.281 0.313,0.177 10 false HL 1.396,4.094 1.708,4.271 0.313,0.177 10 false VL 1.865,4.094 2.115,4.271 0.25,0.177 10 false HR 2.25,4.094 2.5,4.271 0.25,0.177 10 false VR 2.677,4.083 2.927,4.26 0.25,0.177 10 false M+ 0.51,4.094 0.76,4.271 0.25,0.177 10 false B 0.917,0.24 1.229,0.438 0.313,0.198 10 false *2 2.229,2.542 2.479,2.719 0.25,0.177 10 false MF 3.021,2.51 3.271,2.688 0.25,0.177 10 false E
*1 Mirror Retract Switch
*2 Mirror Select Switch
*a Component without harness connected
(Outer Mirror Switch Assembly)


Check the mirror retract switch.

1.

Measure the resistance according to the value(s) in the table below.

If the result is not as specified, replace the outer mirror switch assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
15 (B) - 2 (MF)
1 (E) - 16 (MR) 		Return position Below 1 Ω
15 (B) - 2 (MF)
1 (E) - 16 (MR) 		Driving position 10 kΩ or higher
1 (E) - 2 (MF)
15 (B) - 16 (MR) 		Retract position Below 1 Ω




ii.

Check the mirror select switch and mirror adjust switch.

1.

Select the mirror select switch to the L position.

2.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
12 (VL) - 15 (B)
9 (M+) - 1 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
12 (VL) - 1 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
13 (HL) - 15 (B)
9 (M+) - 1 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
13 (HL) - 1 (E) 		Right Below 2 Ω
Off 10 kΩ or higher


3.

Select the mirror select switch to the R position.

4.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
10 (VR) - 15 (B)
9 (M+) - 1 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
10 (VR) - 1 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
11 (HR) - 15 (B)
9 (M+) - 1 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
11 (HR) - 1 (E) 		Right Below 2 Ω
Off 10 kΩ or higher





b.

w/ Auto Power Retract Mirror:

i.

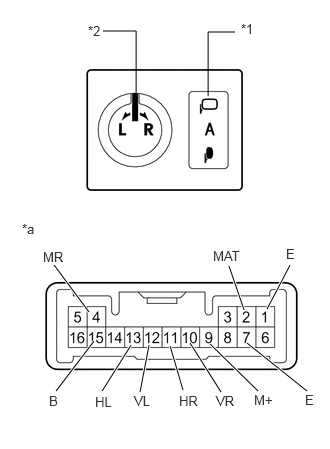

B551874C01
2.167,1 2.167,0.333 2.167,0.333 2.448,0.333 false 1.417,0.99 1.417,0.323 1.417,0.323 1.073,0.323 false 2.188,3.583 2.688,4.073 true 1.979,3.573 2.302,4.083 true 1.771,3.604 1.906,4.063 true 1.552,3.594 1.458,4.083 true 1.365,3.594 1.063,4.073 true 0.563,2.76 0.927,3.25 true 3.021,2.76 2.781,3.219 true 2.385,2.771 2.542,3.229 true 0.979,3.552 0.583,4.073 true 2.573,3.573 3.198,4.073 true 0.229,2.302 0.542,2.5 0.313,0.198 10 false *a 2.51,0.219 2.823,0.417 0.313,0.198 10 false *1 0.448,2.594 0.76,2.771 0.313,0.177 10 false MR 0.99,4.104 1.302,4.281 0.313,0.177 10 false HL 1.396,4.094 1.708,4.271 0.313,0.177 10 false VL 1.865,4.094 2.115,4.271 0.25,0.177 10 false HR 2.25,4.094 2.5,4.271 0.25,0.177 10 false VR 2.646,4.083 2.896,4.26 0.25,0.177 10 false M+ 0.51,4.094 0.76,4.271 0.25,0.177 10 false B 0.917,0.24 1.229,0.438 0.313,0.198 10 false *2 2.219,2.583 2.729,2.792 0.51,0.208 10 false MAT 2.979,2.563 3.229,2.74 0.25,0.177 10 false E 3.177,4.083 3.427,4.26 0.25,0.177 10 false E
*1 Mirror Retract Switch
*2 Mirror Select Switch
*a Component without harness connected
(Outer Mirror Switch Assembly)


Check the mirror retract switch.

1.

Measure the resistance according to the value(s) in the table below.

If the result is not as specified, replace the outer mirror switch assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (MAT) - 1 (E)
4 (MR) - 1 (E) 		Return position 10 kΩ or higher
2 (MAT) - 1 (E) AUTO position Below 33 Ω
4 (MR) - 1 (E) Retract position Below 33 Ω




ii.

Check the mirror select switch and mirror adjust switch.

1.

Select the mirror select switch to the L position.

2.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
12 (VL) - 15 (B)
9 (M+) - 1 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
12 (VL) - 1 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
13 (HL) - 15 (B)
9 (M+) - 1 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
13 (HL) - 1 (E) 		Right Below 2 Ω
Off 10 kΩ or higher


3.

Select the mirror select switch to the R position.

4.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
10 (VR) - 15 (B)
9 (M+) - 1 (E) 		Up Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
10 (VR) - 1 (E) 		Down Below 2 Ω
Off 10 kΩ or higher
11 (HR) - 15 (B)
9 (M+) - 1 (E) 		Left Below 2 Ω
Off 10 kΩ or higher
9 (M+) - 15 (B)
11 (HR) - 1 (E) 		Right Below 2 Ω
Off 10 kΩ or higher





c.

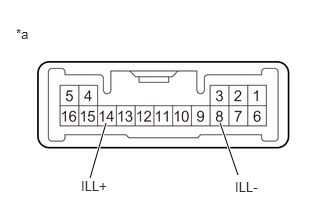

B504694C10
0.938,1.854 1.104,1.281 true 2.479,1.823 2.292,1.281 true 0.167,0.271 0.479,0.469 0.313,0.198 10 false *a 2.448,1.865 3.063,2.063 0.615,0.198 10 false ILL- 0.844,1.854 1.458,2.052 0.615,0.198 10 false ILL+
*a Component without harness connected
(Outer Mirror Switch Assembly)


Check that the LED illuminates.

i.

Apply battery voltage to the outer mirror switch assembly and check that the LED illuminates.

OK:
Battery Connection Specified Condition
Battery positive (+) - 14 (ILL+)
Battery negative (-) - 8 (ILL-) 		LED illuminates
