THEFT DETERRENT / KEYLESS ENTRY ENTRY AND START SYSTEM(for Start Function) TERMINALS OF ECU

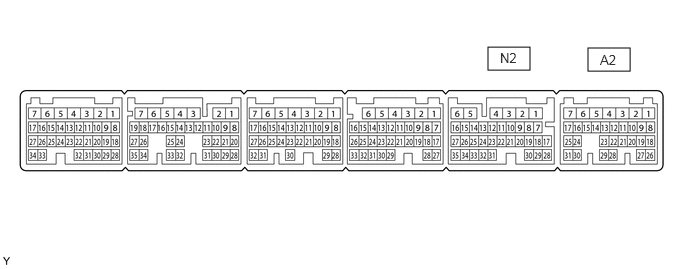

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

2.063,0.438 2.438,0.677 0.375,0.24 3.25,0.427 3.625,0.667 0.375,0.24 4.552,0.438 4.927,0.677 0.375,0.24 3.281,0.469 3.698,0.74 0.417,0.271 10 false N155 4.583,0.469 5.042,0.729 0.458,0.26 10 false N156 2.094,0.469 2.542,0.719 0.448,0.25 10 false N154

a.

Disconnect the N156, N155 and N154 certification ECU (smart key ECU assembly) connectors.

b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:: Measure the values on the wire harness side with the connector disconnected.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N154-16 (NE) - Body ground	for RHD: W - Body ground for LHD: W - Body ground2 BE - Body ground3	Input	Engine speed signal	Always	10 kΩ or higher	Power Source Control Engine Condition
N155-25 (STP1) - Body ground	BE - Body ground	Input	Stop light switch signal	Brake pedal depressed → Brake pedal released	9 V or higher → 1 V or less	Power Source Control Stop Light Switch1
N156-4 (+B) - N156-18 (E)	Y - BR	Input	Power source	Always	11 to 14 V	-
N156-15 (CUTB) - Body ground	BE - Body ground	Input	Dark current cut pin*1	Always	11 to 14 V	-
N156-18 (E) - Body ground	BR - Body ground	-	Ground	Always	Below 1 Ω	-
N156-21 (SSW2) - Body ground	V - Body ground	Input	SSW2 contact signal HINT: Backup for SSW1. Behaves the same way as SSW1.	Engine switch pushed → Engine switch not pushed	Below 15 Ω → 10 kΩ or higher	Power Source Control Start Switch2
N156-23 (SSW1) - Body ground	Y - Body ground	Input	SSW1 contact signal	Engine switch pushed → Engine switch not pushed	Below 15 Ω → 10 kΩ or higher	Power Source Control Start Switch1
N156-19 (SPD) - Body ground	V - Body ground	Input	Vehicle speed signal	Always	30 kΩ or higher	Power Source Control Vehicle Speed Signal

*1: In order to prevent the vehicle battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).

*2: for 7GR-FKS

*3: for 1GD-FTV

c.

Reconnect the N156, N155 and N154 certification ECU (smart key ECU assembly) connectors.

d.

Measure the voltage and resistance and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N154-20 (STA) - N156-18 (E)	R - BR	Input	When starting the engine, this monitors the voltage sent from terminal STAR to the starter relay to judge whether the engine is "being started".	Engine switch pressed and held with brake pedal depressed (starter on) → Approximately 1 second after engine switch released (starter off)	6 V or higher → 1 V or less HINT: While the engine is cranking, the battery voltage may drop to approximately 6 V.	-
N154-9 (STAR) - N156-18 (E)	W - BR	Input / Output	Outputs voltage to the starter relay · Outputs voltage (12 V) to the starter relay when starting the engine. (Max. 30 seconds. Turns off when the engine speed is 1000 rpm.) HINT: When Hi is selected, a start request signal (STAR) will not be output even though a start request signal (STSW) is input.	Engine switch pressed and held with brake pedal depressed (starter on) → Approximately 1 second after engine switch released (starter off)	6 V or higher → 1 V or less HINT: While the engine is cranking, the battery voltage may drop to approximately 6 V.	-
N154-16 (NE) - N156-18 (E)	for RHD: W - Body ground for LHD: W - Body ground1 BE - Body ground2	Input	Engine speed signal	Idling (engine warmed up)	Pulse generation (See waveform 7)	Power Source Control Engine Condition
N155-25 (STP1) - N156-18 (E)	BE - BR	Input	Stop light switch signal	Brake pedal released → Brake pedal depressed	1 V or less → 9 V or higher	Power Source Control Stop Light Switch1
N156-14 (SLP) - N156-18 (E)	P - BR	Input	Steering lock position signal	Steering locked → Steering unlocked	11 to 14 V → 1.5 V or less	Power Source Control Steering Unlock Switch
N156-25 (SLR+) - N156-18 (E)	G - BR	Output	Steering lock motor operation command signal (Steering lock motor operation permission signal sent from the certification ECU (smart key ECU assembly))	When a door is opened, the steering lock motor will be operated if all of the following conditions are met: · The steering is unlocked. · The engine switch is off. · The shift state is park (P).	Pulse generation (See waveform 1)	-
N156-13 (LIN) - N156-18 (E)	V - BR	Input/Output	LIN communication line	Engine switch on (IG)	Pulse generation	Entry&Start Steering Lock Start Cond
N156-22 (P) - N156-18 (E)	LG - BR	Input	P position signal	Shift state park (P) → Shift state not park (P)	9 V or higher → 2.76 V or less	Power Source Control Shift P Signal
N156-21 (SSW2) - N156-18 (E)	V - BR	Input	SSW2 contact signal HINT: Backup for SSW1. Behaves the same way as SSW1.	Engine switch not pushed → Engine switch pushed	9 V or higher → 1 V or less	Power Source Control Start Switch2
N156-23 (SSW1) - N156-18 (E)	Y - BR	Input	SSW1 contact signal	Engine switch not pushed → Engine switch pushed	9 V or higher → 1 V or less	Power Source Control Start Switch1
N156-16 (ACCD) - N156-18 (E)	B- BR	Output	ACC signal	Engine switch off → Engine switch on (ACC)	1 V or less → 8.5 V or higher	Power Source Control ACC Relay Monitor
N156-17 (IG1D) - N156-18 (E)	GR - BR	Output	IG1 signal	Engine switch on (ACC) → Engine switch on (IG)	1 V or less → 9 V or higher	Power Source Control IG Relay Monitor (Outside)
N156-19 (SPD) - N156-18 (E)	V - BR	Input	Vehicle speed signal	Vehicle being driven at approximately 5 km/h (3 mph)	Pulse generation (See waveform 2)	Power Source Control Vehicle Speed Signal
N156-8 (CLG5) - N156-18 (E)	L - BR	Output	Output to No. 1 indoor electrical key antenna assembly (front floor)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N156-9 (CG5B) - N156-18 (E)	GR - BR	Output	Output to No. 1 indoor electrical key antenna assembly (front floor) (terminal on opposite side of component from CLG5 output terminal)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-5 (CLG6) - N156-18 (E)	W - BR	Output	Output to No. 1 indoor electrical key antenna assembly (center front floor)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-6 (CG6B) - N156-18 (E)	R - BR	Output	Output to No. 1 indoor electrical key antenna assembly (center front floor) (terminal on opposite side of component from CLG6 output terminal)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-11 (CLG7) - N156-18 (E)	Y - BR	Output	Output to No. 1 indoor electrical key antenna assembly (center rear floor)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-10 (CG7B) - N156-18 (E)	G - BR	Output	Output to No. 1 indoor electrical key antenna assembly (center rear floor) (terminal on opposite side of component from CLG7 output terminal)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-4 (CLGP) - N156-18 (E)	LG - BR	Output	Output to No. 1 indoor electrical key antenna assembly (rear LH floor)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-3 (CGPB) - N156-18 (E)	SB - BR	Output	Output to No. 1 indoor electrical key antenna assembly (rear LH floor) (terminal on opposite side of component from CLG7 output terminal)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-13 (CLG8) - N156-18 (E)	P - BR	Output	Output to No. 1 indoor electrical key antenna assembly (rear RH floor)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N155-12 (CG8B) - N156-18 (E)	G - BR	Output	Output to No. 1 indoor electrical key antenna assembly (rear RH floor) (terminal on opposite side of component from CLG7 output terminal)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door	Pulse generation (See waveform 3)	-
N156-5 (TXCT) - N156-11 (AGND)	L - LG	Output	Signal output to transponder key amplifier	Engine switch off, brake pedal not depressed, 30 seconds or more elapsed after driver door opened and then closed	Below 1 V	Entry&Start · BCC Malfunction · Abnormal Status · Different Encrypt Code · Different Serial Number · Frame Error · Response
N156-6 (CODE) - N156-11 (AGND)	G - LG	Input	Signal input from transponder key amplifier	Engine switch off, brake pedal not depressed, 30 seconds or more elapsed after driver door opened and then closed	Below 1 V
N156-7 (VC5) - N156-11 (AGND)	B - LG	Output	Transponder key amplifier power supply	Engine switch off, brake pedal not depressed, 30 seconds or more elapsed after driver door opened and then closed	Below 1 V
N156-11 (AGND) - Body ground	LG - Body ground	-	Transponder key amplifier ground	Always	Below 1 Ω
N156-5 (TXCT) - N156-11 (AGND)	L - LG	Output	Signal output to transponder key amplifier (Code sent from certification ECU (smart key ECU assembly) to transponder key amplifier built into engine switch, and then transmitted by transponder key amplifier antenna as radio waves)	Engine switch off, key not in cabin, within 30 seconds after engine switch pressed	Pulse generation (See waveform 4)	Entry&Start · BCC Malfunction · Abnormal Status · Different Encrypt Code · Different Serial Number · Frame Error · Response HINT: If immobiliser key code verification communication is not performed correctly, the malfunction may be indicated by one or more of the Data List items listed above
N156-6 (CODE) - N156-11 (AGND)	G - LG	Input	Signal input from transponder key amplifier (Radio waves from transponder key amplifier built into engine switch used to detect key information. Key information then sent to certification ECU (smart key ECU assembly))	Engine switch off, engine switch pressed with key held near engine switch HINT: Remove the transmitter battery before performing this inspection.	Pulse generation (See waveform 5)
N156-7 (VC5) - N156-11 (AGND)	B - LG	Output	Transponder key amplifier power supply (Power supplied from certification ECU (smart key ECU assembly) when transponder key amplifier built into engine switch activated)	Engine switch off, key not in cabin, within 30 seconds after engine switch pressed	Pulse generation (See waveform 6)
N156-20 (IND) - N156-18 (E)	SB - BR	Output	Security indicator output	Engine switch off → on (IG)	Pulse generation → Below 2 V	-

*1: for 7GR-FKS

*2: for 1GD-FTV

HINT:: ·

The waveform of the steering lock actuator motor stopped can be checked without performing any particular operation.

·

The waveform of the steering lock actuator motor operating can be checked if either of the following operations is performed:

-

To unlock the steering, bring the electrical key transmitter sub-assembly into the cabin and turn the engine switch on (ACC) or on (IG).

-

To lock the steering, open a door with the engine switch off and the shift state park (P).

e.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:: The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

0.229,0.406 1.635,0.573 1.406,0.167 1.469,1.573 2.438,1.698 0.969,0.125 2.281,0.469 2.708,0.625 0.427,0.156 1.938,1.698 2.021,1.979 2.021,1.979 2.073,1.979 false 1.646,0.438 2.76,0.198 2.76,0.198 2.833,0.198 false 2.75,0.208 2.552,0.458 false 2.906,1.583 3.281,1.729 0.375,0.146 10 GND 2.125,1.896 2.615,2.042 0.49,0.146 10 *b 2.865,0.125 3.229,0.354 0.365,0.229 10 *a

*a	Steering lock motor not operating
*b	Steering lock motor operating

Waveform 1

Item	Content

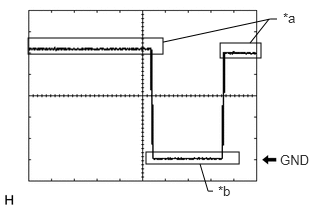

Tester Connection	N156-25 (SLR+) - N156-18(E)
Tool Setting	2 V/DIV., 200 ms./DIV.
Condition	When a door is opened, the steering lock motor will be operated if all of the following conditions are met: · The steering is unlocked. · The engine switch is off. · The shift state is park (P).

ii.

2.875,1.164 3.228,1.332 0.353,0.168 10 GND

Waveform 2

Item	Content

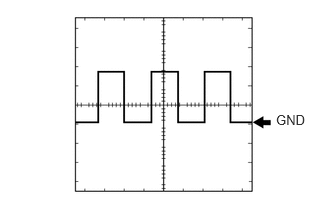

Tester Connection	N156-19 (SPD) - N156-18(E)
Tool Setting	5 V/DIV., 20 ms./DIV.
Condition	Vehicle being driven at approximately 5 km/h (3 mph)

HINT:: The wavelength becomes shorter as the vehicle speed increases.

iii.

0.188,1.042 0.646,1.24 0.458,0.198 10 false GND 1.01,1.917 1.469,2.115 0.458,0.198 10 false *a 2.135,1.938 2.594,2.135 0.458,0.198 10 false *b

*a	For 30 seconds after any door closed
*b	After 30 seconds or more have elapsed since any door closed

Waveform 3

Item	Content

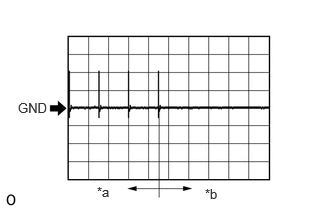

Tester Connection	N156-8 (CLG5) - N156-18 (E) N156-9 (CG5B) - N156-18 (E) N155-5 (CLG6) - N156-18 (E) N155-6 (CG6B) - N156-18 (E) N155-11 (CLG7) - N156-18 (E) N155-10 (CG7B) - N156-18 (E) N155-13 (CLG8) - N156-18 (E) N155-12 (CG8B) - N156-18 (E) N155-4 (CLGP) - N156-18 (E) N155-3 (CGPB) - N156-18 (E)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly not inside vehicle 3. Within 30 seconds of closing any door

iv.

2.802,0.781 3.156,0.969 0.354,0.188 10 GND

Waveform 4

Item	Content

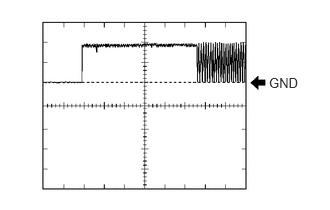

Tester Connection	N156-5 (TXCT) - N156-11 (AGND)
Tool Setting	2 V/DIV., 20 ms./DIV.
Condition	Engine switch off, key not in cabin, within 30 seconds after engine switch pressed

v.

0.104,0.135 0.417,0.292 0.313,0.156 10 false *a 0.094,1.896 0.406,2.052 0.313,0.156 10 false *b 3.031,1.219 3.427,1.49 0.396,0.271 10 false GND 3.031,2.948 3.427,3.219 0.396,0.271 10 false GND

*a	Waveform
*b	Waveform (detail)

Waveform 5

Item	Content

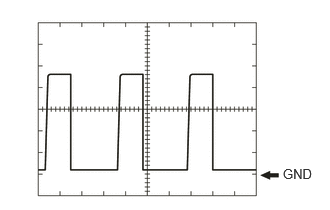

Tester Connection	N156-6 (CODE) - N156-11 (AGND)

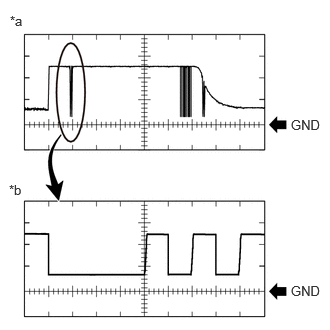

Tool Setting	· Waveform: 2 V/DIV., 20 ms./DIV. · Waveform (detail): 2 V/DIV., 100 μs./DIV.
Condition	Engine switch off, engine switch pressed with key held near engine switch HINT: Remove the transmitter battery before performing this inspection.

vi.

2.885,1.031 3.427,1.375 0.542,0.344 10 GND

Waveform 6

Item	Content
Tester Connection	N156-7 (VC5) - N156-11 (AGND)
Tool Setting	2 V/DIV., 200 ms./DIV.
Condition	Engine switch off, key not in cabin, within 30 seconds after engine switch pressed

vii.

2.948,1.729 3.281,1.885 0.333,0.156 10 false GND

Waveform 7

Item	Content

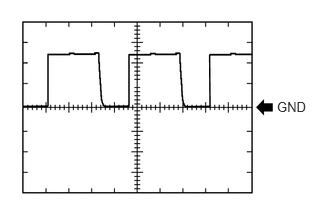

Tester Connection	N154-16 (NE) - N156-18 (E)
Tool Setting	2 V/DIV., 2 ms./DIV.
Condition	Idling (engine warmed up)

HINT:: The wavelength becomes shorter as the engine speed increases.

CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

1.927,0.646 2.323,0.885 0.396,0.24 1.969,0.688 2.406,0.948 0.438,0.26 10 false N157

a.

Disconnect the N157 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:: Measure the values on the wire harness side with the connector disconnected.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N157-1 (GND) - Body ground	W-B - Body ground	-	Ground	Always	Below 1 Ω	-
N157-6 (IG2) - N157-1 (GND)	R - W-B	Input	Power source mode signal	Engine switch off → Engine switch on (IG)	Below 1 V → 11 to 14 V	-
N157-7 (B) - Body ground	B - Body ground	Input	Power source	Always	11 to 14 V	-

c.

Reconnect the N157 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

d.

Measure the voltage and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N157-4 (SLP1) - N157-1 (GND)	P - W-B	Output	Steering lock bar position signal (output signal from steering unlock sensor)	Steering locked → unlocked	11 to 14 V → Below 1.5 V	Entry&Start Sensor Value
N157-5 (LIN) - N157-1 (GND)	LG - W-B	Input/Output	LIN communication line	Engine switch on (IG)	Pulse generation	Entry&Start Steering Lock Start Cond

e.

Check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Wiring Color	Terminal Description	Condition	Specified Condition	Related Data List Item
N157-3 (IGE) - N157-1 (GND)	G - W-B	Input	Steering lock motor activation command signal	Any door opened when following conditions are met, and then steering lock motor activated: · Shift state park (P) · Steering lock unlocked in advance by carrying key and turning engine switch on (IG) · After above conditions are met, engine switch turned off	Pulse generation (see waveform 1)	Entry&Start · Power Supply Short · Unlock Request Receive · Lock Request Receive

HINT:: ·

When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.

·

In order to take measurements when the lock motor is operating, perform either of the following operations:

-

To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).

-

To lock the steering, turn the engine switch off with the shift state park (P), and then open a door.

f.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:: The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

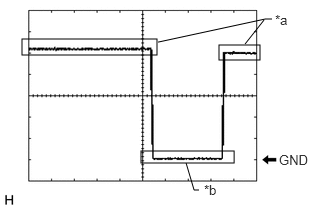

0.292,0.396 1.698,0.563 1.406,0.167 1.521,1.583 2.49,1.708 0.969,0.125 2.292,0.448 2.719,0.604 0.427,0.156 2.083,1.708 2.167,1.99 2.167,1.99 2.219,1.99 false 1.698,0.438 2.813,0.198 2.813,0.198 2.885,0.198 false 2.802,0.198 2.604,0.448 false 2.917,1.583 3.385,1.958 0.469,0.375 10 GND 2.271,1.906 2.76,2.052 0.49,0.146 10 *b 2.948,0.104 3.313,0.333 0.365,0.229 10 *a

*a	Steering lock motor not operating
*b	Steering lock motor operating

Waveform 1

Item	Content
Tester Connection	N157-3 (IGE) - N157-1 (GND)
Tool Setting	2 V/DIV., 200 ms./DIV.
Condition	Any door opened when following conditions are met, and then steering lock motor activated: · Shift state park (P) · Steering lock unlocked in advance by carrying key and turning engine switch on (IG) · After above conditions are met, engine switch turned off

CHECK ID CODE BOX (IMMOBILISER CODE ECU)

3.396,0.156 3.792,0.385 0.396,0.229 3.448,0.188 4.021,0.385 0.573,0.198 10 false N158

a.

Disconnect the N158 ID code box (immobiliser code ECU) connector.

b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:: Measure the values on the wire harness side with the connector disconnected.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N158-1 (+B) - Body ground	P - Body ground	Input	Power source	Always	11 to 14 V	-
N158-5 (GND) - Body ground	W-B - Body ground	-	Ground	Always	Below 1 Ω	-

c.

Reconnect the N158 ID code box (immobiliser code ECU) connector.

d.

Measure the voltage and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N158-3 (EFII) - N158-5 (GND)	V - W-B	Input	EFI communication input (Signal input from ECM to ID code box (immobiliser code ECU))	Engine switch off	11 to 14 V	Entry&Start · EFI Code Receive · Engine Start Request
N158-3 (EFII) - N158-5 (GND)	V - W-B	Input	EFI communication input (Signal input from ECM to ID code box (immobiliser code ECU))	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 1)
N158-4 (EFIO) - N158-5 (GND)	BE - W-B	Output	EFI communication output (Signal output from ID code box (immobiliser code ECU) to ECM)	Engine switch off	Below 1 V
N158-4 (EFIO) - N158-5 (GND)	BE - W-B	Output	EFI communication output (Signal output from ID code box (immobiliser code ECU) to ECM)	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 2)
N158-2 (LIN1) - N158-5 (GND)	V - W-B	Input/Output	LIN communication line	Engine switch on (IG)	Pulse generation	Entry&Start Steering Lock Start Cond

e.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:: The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

Waveform 1

0.917,1.271 1.375,1.469 0.458,0.198 10 GND 2.719,1.354 3.177,1.552 0.458,0.198 10 *a 2.906,1.354 3.365,1.552 0.458,0.198 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	N158-3 (EFII) - N158-5 (GND)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

ii.

Waveform 2

0.844,1.24 1.302,1.438 0.458,0.198 10 GND 3.115,1.323 3.344,1.531 0.229,0.208 10 *a 3.313,1.323 3.542,1.531 0.229,0.208 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	N158-4 (EFIO) - N158-5 (GND)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

CHECK ECM (for 7GR-FKS)

2.906,0.542 3.354,0.75 0.448,0.208 6.115,0.563 6.563,0.771 0.448,0.208 6.26,0.594 6.573,0.792 0.313,0.198 10 false A1 3.063,0.573 3.375,0.771 0.313,0.198 10 false E3

a.

Measure the voltage and resistance and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
A1-2 (BATT) - E3-1 (E1)	B- W-B	Input	Power source	Always	11 to 14 V	-
E3-1 (E1) - Body ground	W-B - Body ground	-	Ground	Always	Below 1 Ω	-
A1-9 (IMO) - E3-1 (E1)	L - W-B	Output	EFI communication output (Signal input from ECM to ID code box (immobiliser code ECU))	Engine switch off	11 to 14 V	Entry&Start · EFI Code Receive · Engine Start Request
A1-9 (IMO) - E3-1 (E1)	L - W-B	Output	EFI communication output (Signal input from ECM to ID code box (immobiliser code ECU))	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 1)
A1-8 (IMI) - E3-1 (E1)	R - W-B	Input	EFI communication input (Signal output from ID code box (immobiliser code ECU) to ECM)	Engine switch off	Below 1 V
A1-8 (IMI) - E3-1 (E1)	R - W-B	Input	EFI communication input (Signal output from ID code box (immobiliser code ECU) to ECM)	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 2)

b.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:: The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

Waveform 1

0.917,1.271 1.375,1.469 0.458,0.198 10 GND 2.719,1.354 3.177,1.552 0.458,0.198 10 *a 2.906,1.354 3.365,1.552 0.458,0.198 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	A1-9 (IMO) - E3-1 (E1)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

ii.

Waveform 2

0.844,1.24 1.302,1.438 0.458,0.198 10 GND 3.115,1.323 3.344,1.531 0.229,0.208 10 *a 3.313,1.323 3.542,1.531 0.229,0.208 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	A1-8 (IMI) - E3-1 (E1)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

CHECK ECM (for 1GD-FTV)

5.083,0.49 5.521,0.729 0.438,0.24 6.125,0.5 6.563,0.74 0.438,0.24 6.25,0.542 6.563,0.74 0.313,0.198 10 false A2 5.208,0.521 5.521,0.719 0.313,0.198 10 false N2

a.

Measure the voltage and resistance and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N2-1 (BATT) - A2-5 (E1)	L- W-B	Input	Power source	Always	11 to 14 V	-
A2-5 (E1) - Body ground	W-B - Body ground	-	Ground	Always	Below 1 Ω	-
A2-17 (IMO) - A2-5 (E1)	L - W-B	Output	EFI communication output (Signal input from ECM to ID code box (immobiliser code ECU))	Engine switch off	11 to 14 V	Entry&Start · EFI Code Receive · Engine Start Request
A2-17 (IMO) - A2-5 (E1)	L - W-B	Output	EFI communication output (Signal input from ECM to ID code box (immobiliser code ECU))	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 1)
A2-16 (IMI) - A2-5 (E1)	R - W-B	Input	EFI communication input (Signal output from ID code box (immobiliser code ECU) to ECM)	Engine switch off	Below 1 V
A2-16 (IMI) - A2-5 (E1)	R - W-B	Input	EFI communication input (Signal output from ID code box (immobiliser code ECU) to ECM)	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery	Pulse generation (See waveform 2)

b.

Using an oscilloscope, check the waveform of the ECU.

NOTICE:: The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

Waveform 1

0.917,1.271 1.375,1.469 0.458,0.198 10 GND 2.719,1.354 3.177,1.552 0.458,0.198 10 *a 2.906,1.354 3.365,1.552 0.458,0.198 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	A2-17 (IMO) - A2-5 (E1)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

ii.

Waveform 2

0.844,1.24 1.302,1.438 0.458,0.198 10 GND 3.115,1.323 3.344,1.531 0.229,0.208 10 *a 3.313,1.323 3.542,1.531 0.229,0.208 10 *b

*a

Approximately 160 ms

*b

Approximately 270 ms

Item	Content
Tester Connection	A2-16 (IMI) - A2-5 (E1)
Tool Setting	2 V/DIV., 500 ms./DIV.
Condition	Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery

CHECK ENGINE SWITCH

3.313,0.208 3.708,0.521 0.396,0.313 3.365,0.281 3.823,0.479 0.458,0.198 10 false N162

a.

Measure the voltage and resistance and check for pulses according to the value(s) in the table below.

Tester Connection	Wiring Color	Input/Output	Terminal Description	Condition	Specified Condition	Related Data List Item
N162-6 (AGND) - Body ground	LG - Body ground	-	Transponder key amplifier ground	Always	Below 1 Ω	-
N162-7 (TXCT) - N162-6 (AGND)	L - LG	Input	Immobiliser communication input	Engine switch off, brake pedal not depressed, 30 seconds or more after driver door opened and then closed	Below 1 V	-
N162-7 (TXCT) - N162-6 (AGND)	L - LG	Input	Signal input from certification ECU (smart key ECU assembly) (Code sent from certification ECU (smart key ECU assembly) to transponder key amplifier built into engine switch, and then transmitted by transponder key amplifier antenna as radio waves)	Engine switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds after engine switch pressed	Pulse generation (See waveform 1)	Entry&Start · BCC Malfunction · Abnormal Status · Different Encrypt Code · Different Serial Number · Frame Error · Response HINT: If immobiliser key code verification communication is not performed correctly, the malfunction may be indicated by one or more of the Data List items listed above
N162-8 (CODE) - N162-6 (AGND)	G - LG	Output	Immobiliser communication output	Engine switch off, brake pedal not depressed, 30 seconds or more after driver door opened and then closed	Below 1 V	-
N162-8 (CODE) - N162-6 (AGND)	G - LG	Output	Signal output to certification ECU (smart key ECU assembly) (Radio waves from transponder key amplifier built into engine switch used to detect key information. Key information then sent to certification ECU (smart key ECU assembly))	Engine switch off, engine switch pressed with electrical key transmitter sub-assembly held near engine switch HINT: Remove the transmitter battery before performing this inspection.	Pulse generation (See waveform 2)	Entry&Start · BCC Malfunction · Abnormal Status · Different Encrypt Code · Different Serial Number · Frame Error · Response HINT: If immobiliser key code verification communication is not performed correctly, the malfunction may be indicated by one or more of the Data List items listed above
N162-10 (VC5) - N162-6 (AGND)	B - LG	Input	Transponder key amplifier power supply	Engine switch off, brake pedal not depressed, 30 seconds or more after driver door opened and then closed	Below 1 V	-
N162-10 (VC5) - N162-6 (AGND)	B - LG	Input	Transponder key amplifier power supply (Power supplied from certification ECU (smart key ECU assembly) when transponder key amplifier built into engine switch activated)	Engine switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds after engine switch pressed	Pulse generation (See waveform 3)	Entry&Start · BCC Malfunction · Abnormal Status · Different Encrypt Code · Different Serial Number · Frame Error · Response HINT: If immobiliser key code verification communication is not performed correctly, the malfunction may be indicated by one or more of the Data List items listed above

b.

Using an oscilloscope, check the waveform.

NOTICE:: The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

i.

2.802,0.781 3.156,0.969 0.354,0.188 10 GND

Waveform 1

Item	Content
Tester Connection	N162-7 (TXCT) - N162-6 (AGND)
Tool Setting	2 V/DIV., 20 ms./DIV.
Condition	Engine switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds after engine switch pressed

ii.

0.104,0.135 0.417,0.292 0.313,0.156 10 false *a 0.094,1.896 0.406,2.052 0.313,0.156 10 false *b 3.031,1.219 3.427,1.49 0.396,0.271 10 false GND 3.031,2.948 3.427,3.219 0.396,0.271 10 false GND

*a	Waveform
*b	Waveform (detail)

Waveform 2

Item	Content
Tester Connection	N162-8 (CODE) - N162-6 (AGND)
Tool Setting	Procedure: · Waveform 2 V/DIV., 20 ms./DIV. · Waveform (detail) 2 V/DIV., 100 μs./DIV.
Condition	Engine switch off, engine switch pressed with electrical key transmitter sub-assembly held near engine switch HINT: Remove the transmitter battery before performing this inspection.

iii.

2.885,1.031 3.427,1.375 0.542,0.344 10 GND

Waveform 3

Item	Content
Tester Connection	N162-10 (VC5) - N162-6 (AGND)
Tool Setting	2 V/DIV., 200 ms./DIV.
Condition	Engine switch off, electrical key transmitter sub-assembly not in cabin, within 30 seconds after engine switch pressed
