RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0396934 RAIN SENSOR A

WIPER / WASHER  RAIN SENSOR  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.



PROCEDURE

Hide 89943 1.REMOVE RAIN SENSOR COVER

a.

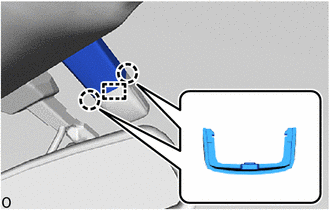

B545091

Detach the claw and guide to remove the rain sensor cover.


Hide 89941 2.REMOVE RAIN SENSOR

a.

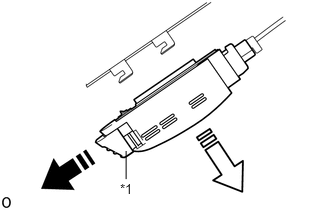

B545092C01
1.313,1.865 1.313,1.573 false 1.25,1.885 1.604,2.115 0.354,0.229 10 false *1
*1 Stopper
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (1)


Pull the stopper in the direction (1) indicated by the arrow shown in the illustration to release the lock.


b.

Pull the rain sensor in the direction (2) indicated by the arrow shown in the illustration and remove it.


c.
B545093

Disconnect the connector.

NOTICE:

If the rain sensor has been dropped, replace it with a new one.
