WIPER / WASHER  HEADLIGHT CLEANER ACTUATOR COVER  INSTALLATION


PROCEDURE

Hide 85354 1.INSTALL HEADLIGHT WASHER COVER LH

a.

Pull out the headlight washer actuator sub-assembly LH.


b.

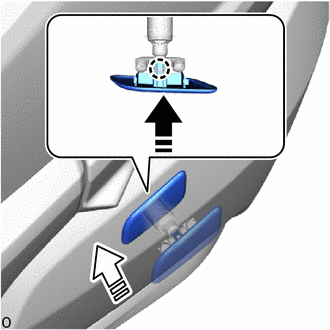

B545090C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the claw as indicated by the arrows in the order shown in the illustration to install the headlight washer cover LH.


Hide 85353 2.INSTALL HEADLIGHT WASHER COVER RH

HINT:

Use the same procedure as for the LH side.
