WIPER / WASHER  HEADLIGHT CLEANER ACTUATOR COVER  REMOVAL


PROCEDURE

Hide 85354 1.REMOVE HEADLIGHT WASHER COVER LH

a.
B545089C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

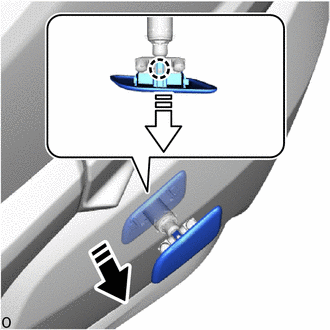

Detach the claw as indicated by the arrows in the order shown in the illustration to remove the headlight washer cover LH.


Hide 85353 2.REMOVE HEADLIGHT WASHER COVER RH

HINT:

Use the same procedure as for the LH side.
