RM35X0E _51 Engine / Hybrid System _078825 STOP AND START _0382334 STOP AND START SYSTEM C

STOP AND START STOP AND START SYSTEM P061519 Starter Relay Circuit Current Above Threshold

DESCRIPTION

When the engine is started by stop and start control, the engine stop and start ECU controls the starter assembly by activating the STARTER relay (for starter pinion operation) via voltage from terminal STA and then, using its built-in starter delay circuit, activating the STARTER NO.2 relay (for starter motor operation) via voltage from terminal STA2.

If overcurrent is detected in the starter relay circuit, the engine stop and start ECU stores DTC P061519 and blinks the stop and start cancel indicator.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Memory	Note
P061519	Starter Relay Circuit Current Above Threshold	Both of the following conditions are met for 1 second (1 trip detection logic): · Ignition switch ON. · Overcurrent to STARTER relay or STARTER NO.2 relay is detected.	· Wire harness or connector · STARTER relay · STARTER NO.2 relay · Engine stop and start ECU	Blinks	DTC stored	SAE Code: P0617

CONFIRMATION DRIVING PATTERN

CONFIRMATION AFTER TROUBLESHOOTING

HINT:: ·

If the cable is disconnected from the battery terminal, stop and start control is prohibited until refresh charge is completed.

In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item "Status of Battery Charge Control" changes from "Refresh Charge Mode". (Usually, idling the engine for 5 to 60 minutes with the battery fluid temperature at 11°C (51°F) or higher, the refresh charge will be completed.)

·

If the GTS is not available and the Data List item "Status of Battery Charge Control" cannot be checked, charge the battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

·

After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.

·

Allow the engine to idle for 3 minutes after it is warmed up and check that the engine idle speed is within 50 rpm of the target idle speed.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Stop and Start > Clear DTCs: 50002 392

Start the engine and warm it up.

Drive the vehicle at 7 km/h (4 mph) or more.

CAUTION:: When performing Confirmation Driving Pattern, obey all speed limits and traffic laws.

for Automatic Transmission:

Depress the brake pedal and stop the vehicle.

for Manual Transmission:

Stop the vehicle, move the shift lever to neutral and release the clutch pedal.

Keep the engine stopped by stop and start control for 1 second or more. (for Automatic Transmission: Keep the shift lever in D.)

for Automatic Transmission:

Release the brake pedal with the shift lever in D to start the engine.

for Manual Transmission:

Depress the clutch pedal and start the engine.

Check that DTCs are not output.

Powertrain > Stop and Start > Trouble Codes: 50001 392

STOP AND START SYSTEM OPERATION CHECK

HINT:: ·

If the cable is disconnected from the battery terminal, stop and start control is prohibited until refresh charge is completed.

In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item "Status of Battery Charge Control" changes from "Refresh Charge Mode". (Usually, idling the engine for 5 to 60 minutes with the battery fluid temperature at 11°C (51°F) or higher, the refresh charge will be completed.)

·

If the GTS is not available and the Data List item "Status of Battery Charge Control" cannot be checked, charge the battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

·

After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.

Start the engine and warm it up.

Turn the air conditioning system off.

Drive the vehicle at 7 km/h (4 mph) or more.

CAUTION:: When performing Confirmation Driving Pattern, obey all speed limits and traffic laws.

for Automatic Transmission:

Depress the brake pedal and stop the vehicle.

for Manual Transmission:

Stop the vehicle, move the shift lever to neutral and release the clutch pedal.

Allow the engine to stop by stop and start control. (for Automatic Transmission: Keep the shift lever in D.)

for Automatic Transmission:

Release the brake pedal with the shift lever in D to start the engine.

for Manual Transmission:

Depress the clutch pedal and start the engine.

WIRING DIAGRAM

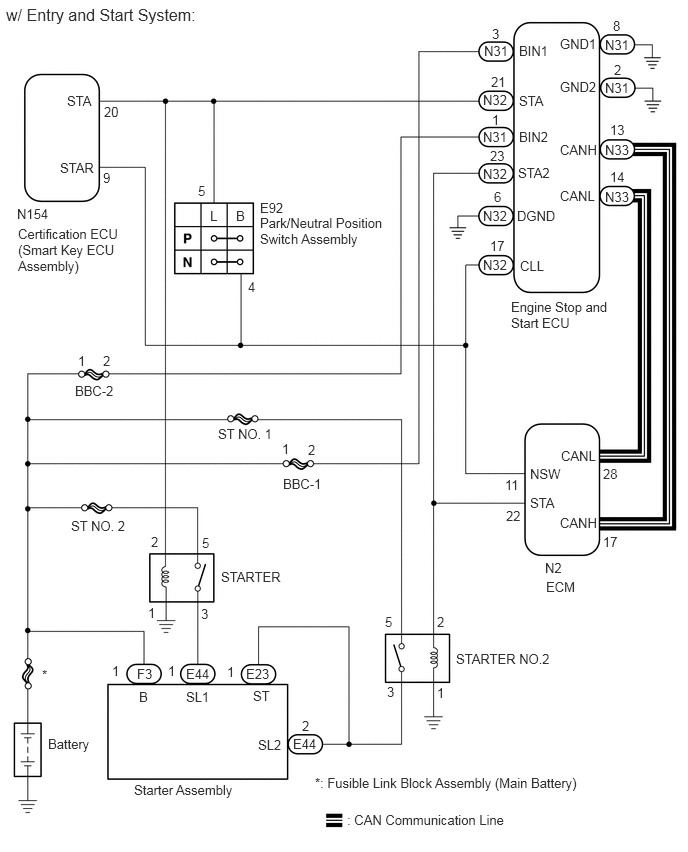

for Automatic Transmission:

0.063,0.052 2.625,0.292 2.563,0.24 12 false w/ Entry and Start System: 0.188,2.354 1.271,2.885 1.083,0.531 10 false Certification ECU (Smart Key ECU Assembly) 0.625,1.667 1.021,1.927 0.396,0.26 10 false STAR 1.073,1.771 1.385,1.969 0.313,0.198 10 false 9 0.698,0.969 1.156,1.167 0.458,0.198 10 false STA 1.083,1.083 1.396,1.281 0.313,0.198 10 false 20 2.708,2.24 4.031,3.042 1.323,0.802 10 false Park/Neutral Position Switch Assembly 2.063,1.906 2.219,2.104 0.156,0.198 10 false 5 2.583,2.906 2.74,3.104 0.156,0.198 10 false 4 5.323,3.115 6.375,3.656 1.052,0.542 10 false Engine Stop and Start ECU 5.406,0.969 5.865,1.167 0.458,0.198 10 false STA 5.406,1.344 5.865,1.542 0.458,0.198 10 false BIN2 5.396,1.719 6.01,1.917 0.615,0.198 10 false STA2 5.417,2.688 5.875,2.885 0.458,0.198 10 false CLL 5.406,0.448 5.865,0.646 0.458,0.198 10 false BIN1 5.385,2.167 5.875,2.365 0.49,0.198 10 false DGND 5.042,0.448 5.5,0.646 0.458,0.198 10 false N31 5.125,0.271 5.281,0.469 0.156,0.198 10 false 3 5.031,1.344 5.49,1.542 0.458,0.198 10 false N31 5.125,1.167 5.281,1.365 0.156,0.198 10 false 1 5.031,0.958 5.49,1.156 0.458,0.198 10 false N32 5.115,0.771 5.427,0.969 0.313,0.198 10 false 21 5.031,1.729 5.49,1.927 0.458,0.198 10 false N32 5.104,1.542 5.417,1.74 0.313,0.198 10 false 23 5.031,2.677 5.49,2.875 0.458,0.198 10 false N32 5.104,2.479 5.417,2.677 0.313,0.198 10 false 17 5.031,2.167 5.49,2.365 0.458,0.198 10 false N32 5.146,1.969 5.302,2.167 0.156,0.198 10 false 6 5.833,1.479 6.448,1.677 0.615,0.198 10 false CANH 6.302,1.479 6.76,1.677 0.458,0.198 10 false N33 6.354,1.271 6.667,1.469 0.313,0.198 10 false 13 5.833,1.958 6.448,2.156 0.615,0.198 10 false CANL 6.302,1.969 6.76,2.167 0.458,0.198 10 false N33 6.354,1.76 6.667,1.958 0.313,0.198 10 false 14 0.781,3.99 1.531,4.198 0.75,0.208 10 false BBC-2 2.948,4.958 3.781,5.177 0.833,0.219 10 false BBC-1 5.688,6.031 6.146,6.229 0.458,0.198 10 false ECM 5.844,4.667 6.458,4.865 0.615,0.198 10 false CANL 5.833,5.365 6.448,5.563 0.615,0.198 10 false CANH 1.448,7.177 1.604,7.375 0.156,0.198 10 false B 1.938,7.177 2.396,7.375 0.458,0.198 10 false SL1 2.688,7.677 3.146,7.875 0.458,0.198 10 false SL2 2.635,7.167 2.927,7.385 0.292,0.219 10 false ST 2.271,4.438 3.5,4.635 1.229,0.198 10 false ST NO. 1 0.74,5.396 1.969,5.594 1.229,0.198 10 false ST NO. 2 1.573,5.563 1.729,5.76 0.156,0.198 10 false 2 2.104,5.573 2.26,5.771 0.156,0.198 10 false 5 0.5,7.667 1.573,7.865 1.073,0.198 10 false Battery 1.396,8.146 3.844,8.344 2.448,0.198 10 false Starter Assembly 3.615,8.458 5.458,8.677 1.844,0.219 10 false : CAN Communication Line 4.75,6.781 5.979,6.979 1.229,0.198 10 false STARTER NO.2 2.094,6.313 2.25,6.51 0.156,0.198 10 false 3 2.302,5.927 3.219,6.156 0.917,0.229 10 false STARTER 1.542,6.302 1.698,6.5 0.156,0.198 10 false 1 4.552,6.396 4.708,6.594 0.156,0.198 10 false 2 4.01,6.396 4.167,6.594 0.156,0.198 10 false 5 4.031,7.125 4.188,7.323 0.156,0.198 10 false 3 4.552,7.135 4.708,7.333 0.156,0.198 10 false 1 5.521,4.854 5.979,5.052 0.458,0.198 10 false NSW 5.521,5.156 5.979,5.354 0.458,0.198 10 false STA 1.073,3.677 1.229,3.875 0.156,0.198 10 false 2 0.813,3.677 0.969,3.875 0.156,0.198 10 false 1 2.938,4.594 3.094,4.792 0.156,0.198 10 false 1 3.208,4.604 3.365,4.802 0.156,0.198 10 false 2 5.833,0.375 6.448,0.573 0.615,0.198 10 false GND1 6.302,0.385 6.76,0.583 0.458,0.198 10 false N31 6.385,0.188 6.542,0.385 0.156,0.198 10 false 8 5.833,0.823 6.448,1.021 0.615,0.198 10 false GND2 6.396,0.646 6.552,0.844 0.156,0.198 10 false 2 6.302,0.833 6.76,1.031 0.458,0.198 10 false N31 6.281,4.854 6.594,5.052 0.313,0.198 10 false 28 6.281,5.563 6.594,5.76 0.313,0.198 10 false 17 5.26,4.969 5.573,5.167 0.313,0.198 10 false 11 5.271,5.292 5.583,5.49 0.313,0.198 10 false 22 5.677,5.833 6.135,6.031 0.458,0.198 10 false N2 2.708,2.083 3.167,2.281 0.458,0.198 10 false E92 1.427,6.938 1.74,7.135 0.313,0.198 10 false F3 1.167,6.906 1.323,7.104 0.156,0.198 10 false 1 0.177,2.146 0.635,2.344 0.458,0.198 10 false N154 1.938,6.938 2.396,7.135 0.458,0.198 10 false E44 1.75,6.906 1.906,7.104 0.156,0.198 10 false 1 2.563,6.938 3.021,7.135 0.458,0.198 10 false E23 2.365,6.917 2.521,7.115 0.156,0.198 10 false 1 3.052,7.667 3.51,7.865 0.458,0.198 10 false E44 3.146,7.479 3.302,7.677 0.156,0.198 10 false 2 2.188,2.167 2.344,2.365 0.156,0.198 10 false L 2.458,2.167 2.615,2.365 0.156,0.198 10 false B 3.281,8.073 6.125,8.354 2.844,0.281 10 false *: Fusible Link Block Assembly (Main Battery) 0.438,6.948 0.594,7.146 0.156,0.198 10 false *

0.813,1.333 3.063,1.563 2.25,0.229 10 false Ignition or Starter Switch Assembly 0.823,1.188 3.073,1.417 2.25,0.229 10 false N28 0.896,0.833 1.146,1 0.25,0.167 10 false 1 1.125,0.833 1.594,1.031 0.469,0.198 10 false AM2 2.021,0.823 2.438,1.021 0.417,0.198 10 false ST2 2.365,0.844 2.719,1.052 0.354,0.208 10 false 4 2.479,2.156 2.833,2.365 0.354,0.208 10 false L 2.719,2.156 3.073,2.365 0.354,0.208 10 false B 2.344,1.917 2.698,2.125 0.354,0.208 10 false 5 2.677,2.906 3.031,3.115 0.354,0.208 10 false 4 2.979,2.115 3.406,2.323 0.427,0.208 10 false E92 2.969,2.281 4.042,2.844 1.073,0.563 10 false Park/Neutral Position Switch Assembly 0.708,7.74 1.375,7.958 0.667,0.219 10 false Battery 0.615,6.885 0.969,7.021 0.354,0.135 10 false * 0.979,5.385 1.646,5.604 0.667,0.219 10 false ST NO.2 2.417,4.448 3.24,4.677 0.823,0.229 10 false BBC-1 2.344,4.938 3.01,5.156 0.667,0.219 10 false ST NO.1 1.031,3.99 1.938,4.208 0.906,0.219 10 false BBC-2 0.271,2.75 1.104,3.302 0.833,0.552 10 false AM2 1.646,8.156 2.875,8.385 1.229,0.229 10 false Starter Assembly 4.635,8.458 6.448,8.677 1.813,0.219 10 false : CAN Communication Line 4.865,6.802 5.948,7 1.083,0.198 10 false STARTER NO.2 2.521,5.927 3.302,6.125 0.781,0.198 10 false STARTER 1.833,5.583 2.188,5.792 0.354,0.208 10 false 2 4.708,6.406 5.063,6.615 0.354,0.208 10 false 2 2.167,5.583 2.521,5.792 0.354,0.208 10 false 5 4.198,6.417 4.552,6.625 0.354,0.208 10 false 5 4.698,7.146 5.052,7.354 0.354,0.208 10 false 1 1.823,6.292 2.177,6.5 0.354,0.208 10 false 1 2.177,6.313 2.531,6.521 0.354,0.208 10 false 3 4.219,7.135 4.573,7.344 0.354,0.208 10 false 3 5.646,5.938 6.313,6.156 0.667,0.219 10 false N2 5.646,6.125 6.313,6.344 0.667,0.219 10 false ECM 5.417,5.167 6.083,5.385 0.667,0.219 10 false STA 5.427,4.865 6.094,5.083 0.667,0.219 10 false NSW 5.823,4.667 6.49,4.885 0.667,0.219 10 false CANL 5.802,5.354 6.469,5.573 0.667,0.219 10 false CANH 5.188,4.969 5.542,5.177 0.354,0.208 10 false 11 5.177,5.281 5.531,5.49 0.354,0.208 10 false 22 6.271,4.865 6.625,5.073 0.354,0.208 10 false 28 6.292,5.563 6.646,5.771 0.354,0.208 10 false 17 1.667,6.938 1.948,7.167 0.281,0.229 10 false F3 5.396,2.375 6.063,2.594 0.667,0.219 10 false DGND 5.292,3.25 6.333,3.635 1.042,0.385 10 false Engine Stop and Start ECU 3.042,7.833 3.708,8.052 0.667,0.219 10 false E44 1.667,7.167 1.948,7.396 0.281,0.229 10 false B 2.177,6.938 2.844,7.156 0.667,0.219 10 false E44 3.042,7.354 3.708,7.573 0.667,0.219 10 false E23 2.177,7.167 2.5,7.385 0.323,0.219 10 false SL1 2.74,7.354 3.063,7.573 0.323,0.219 10 false ST 2.677,7.813 3,8.031 0.323,0.219 10 false SL2 5.396,1.917 5.844,2.115 0.448,0.198 10 false STA2 5.396,1.458 6.063,1.677 0.667,0.219 10 false BIN2 5.396,0.99 6.063,1.208 0.667,0.219 10 false STA 5.396,0.458 6.063,0.677 0.667,0.219 10 false BIN1 5.833,1.948 6.5,2.167 0.667,0.219 10 false CANL 5.813,1.469 6.479,1.688 0.667,0.219 10 false CANH 5.802,0.365 6.469,0.583 0.667,0.219 10 false GND1 5.823,0.823 6.49,1.042 0.667,0.219 10 false GND2 5.042,0.448 5.469,0.656 0.427,0.208 10 false N31 5.031,2.354 5.469,2.563 0.438,0.208 10 false N32 6.292,1.469 6.729,1.698 0.438,0.229 10 false N33 5.031,1.917 5.469,2.125 0.438,0.208 10 false N32 5.031,0.969 5.469,1.177 0.438,0.208 10 false N32 5.042,1.458 5.469,1.667 0.427,0.208 10 false N31 6.292,0.375 6.719,0.583 0.427,0.208 10 false N31 6.292,0.833 6.719,1.042 0.427,0.208 10 false N31 6.292,1.958 6.729,2.188 0.438,0.229 10 false N33 5.125,0.25 5.479,0.458 0.354,0.208 10 false 3 5.073,0.75 5.427,0.958 0.354,0.208 10 false 21 5.104,1.208 5.458,1.417 0.354,0.208 10 false 1 5.083,1.698 5.438,1.906 0.354,0.208 10 false 23 5.115,2.156 5.469,2.365 0.354,0.208 10 false 6 6.385,0.167 6.74,0.375 0.354,0.208 10 false 8 6.396,0.635 6.75,0.844 0.354,0.208 10 false 2 6.354,1.271 6.708,1.479 0.354,0.208 10 false 13 6.344,1.76 6.698,1.969 0.354,0.208 10 false 14 1.042,3.656 1.25,3.865 0.208,0.208 10 false 1 2.438,4.104 2.646,4.313 0.208,0.208 10 false 1 1.313,3.667 1.667,3.875 0.354,0.208 10 false 2 2.698,4.115 3.052,4.323 0.354,0.208 10 false 2 1.427,6.927 1.583,7.156 0.156,0.229 10 false 1 1.969,6.927 2.125,7.156 0.156,0.229 10 false 1 3.125,7.135 3.281,7.365 0.156,0.229 10 false 1 3.125,7.635 3.479,7.844 0.354,0.208 10 false 2 5.031,2.792 5.469,3 0.438,0.208 10 false N32 5.396,2.802 6.063,3.021 0.667,0.219 10 false CLL 5.073,2.583 5.427,2.792 0.354,0.208 10 false 17 4.042,8.052 7.094,8.292 3.052,0.24 10 false *: Fusible Link Block Assembly (Main Battery) 0,0.01 3.979,0.208 3.979,0.198 12 false w/o Entry and Start System:

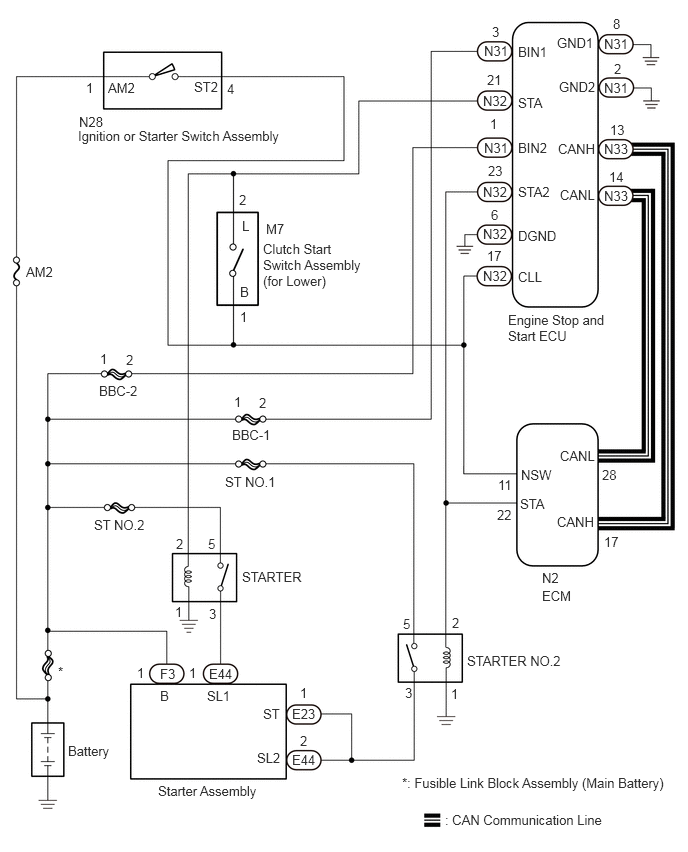

for Manual Transmission:

0.813,1.333 3.063,1.563 2.25,0.229 10 false Ignition or Starter Switch Assembly 0.823,1.188 3.073,1.417 2.25,0.229 10 false N28 0.896,0.833 1.146,1 0.25,0.167 10 false 1 1.125,0.833 1.594,1.031 0.469,0.198 10 false AM2 2.021,0.823 2.438,1.021 0.417,0.198 10 false ST2 2.365,0.844 2.719,1.052 0.354,0.208 10 false 4 2.521,2.271 2.875,2.479 0.354,0.208 10 false L 2.5,2.958 2.854,3.167 0.354,0.208 10 false B 2.49,2 2.844,2.208 0.354,0.208 10 false 2 2.5,3.219 2.854,3.427 0.354,0.208 10 false 1 2.771,2.302 3.198,2.51 0.427,0.208 10 false M7 2.74,2.51 3.813,3.073 1.073,0.563 10 false Clutch Start Switch Assembly (for Lower) 0.708,7.74 1.375,7.958 0.667,0.219 10 false Battery 0.604,6.917 1.271,7.135 0.667,0.219 10 false * 0.979,5.385 1.646,5.604 0.667,0.219 10 false ST NO.2 2.417,4.448 3.24,4.677 0.823,0.229 10 false BBC-1 2.344,4.938 3.01,5.156 0.667,0.219 10 false ST NO.1 1.031,3.99 1.938,4.208 0.906,0.219 10 false BBC-2 0.271,2.75 1.104,3.302 0.833,0.552 10 false AM2 1.646,8.156 2.875,8.385 1.229,0.229 10 false Starter Assembly 4.635,8.458 6.448,8.677 1.813,0.219 10 false : CAN Communication Line 4.865,6.802 5.948,7 1.083,0.198 10 false STARTER NO.2 2.521,5.927 3.302,6.125 0.781,0.198 10 false STARTER 1.833,5.583 2.188,5.792 0.354,0.208 10 false 2 4.708,6.406 5.063,6.615 0.354,0.208 10 false 2 2.167,5.583 2.521,5.792 0.354,0.208 10 false 5 4.198,6.417 4.552,6.625 0.354,0.208 10 false 5 4.698,7.146 5.052,7.354 0.354,0.208 10 false 1 1.823,6.292 2.177,6.5 0.354,0.208 10 false 1 2.177,6.313 2.531,6.521 0.354,0.208 10 false 3 4.219,7.135 4.573,7.344 0.354,0.208 10 false 3 5.646,5.938 6.313,6.156 0.667,0.219 10 false N2 5.646,6.125 6.313,6.344 0.667,0.219 10 false ECM 5.417,5.167 6.083,5.385 0.667,0.219 10 false STA 5.427,4.865 6.094,5.083 0.667,0.219 10 false NSW 5.833,4.667 6.5,4.885 0.667,0.219 10 false CANL 5.802,5.354 6.469,5.573 0.667,0.219 10 false CANH 5.188,4.969 5.542,5.177 0.354,0.208 10 false 11 5.177,5.281 5.531,5.49 0.354,0.208 10 false 22 6.271,4.865 6.625,5.073 0.354,0.208 10 false 28 6.292,5.563 6.646,5.771 0.354,0.208 10 false 17 1.667,6.938 1.948,7.167 0.281,0.229 10 false F3 5.396,2.375 6.063,2.594 0.667,0.219 10 false DGND 5.292,3.25 6.333,3.635 1.042,0.385 10 false Engine Stop and Start ECU 3.042,7.833 3.708,8.052 0.667,0.219 10 false E44 1.667,7.167 1.948,7.396 0.281,0.229 10 false B 2.177,6.938 2.844,7.156 0.667,0.219 10 false E44 3.042,7.354 3.708,7.573 0.667,0.219 10 false E23 2.156,7.167 2.479,7.385 0.323,0.219 10 false SL1 2.74,7.354 3.063,7.573 0.323,0.219 10 false ST 2.677,7.813 3,8.031 0.323,0.219 10 false SL2 5.396,1.917 5.844,2.115 0.448,0.198 10 false STA2 5.396,1.458 6.063,1.677 0.667,0.219 10 false BIN2 5.396,0.99 6.063,1.208 0.667,0.219 10 false STA 5.396,0.458 6.063,0.677 0.667,0.219 10 false BIN1 5.833,1.948 6.5,2.167 0.667,0.219 10 false CANL 5.813,1.469 6.479,1.688 0.667,0.219 10 false CANH 5.802,0.365 6.469,0.583 0.667,0.219 10 false GND1 5.823,0.823 6.49,1.042 0.667,0.219 10 false GND2 5.042,0.448 5.469,0.656 0.427,0.208 10 false N31 5.031,2.354 5.469,2.563 0.438,0.208 10 false N32 6.292,1.469 6.729,1.698 0.438,0.229 10 false N33 5.031,1.917 5.469,2.125 0.438,0.208 10 false N32 5.031,0.969 5.469,1.177 0.438,0.208 10 false N32 5.042,1.458 5.469,1.667 0.427,0.208 10 false N31 6.292,0.375 6.719,0.583 0.427,0.208 10 false N31 6.292,0.833 6.719,1.042 0.427,0.208 10 false N31 6.292,1.958 6.729,2.188 0.438,0.229 10 false N33 5.125,0.25 5.479,0.458 0.354,0.208 10 false 3 5.073,0.75 5.427,0.958 0.354,0.208 10 false 21 5.104,1.208 5.458,1.417 0.354,0.208 10 false 1 5.083,1.698 5.438,1.906 0.354,0.208 10 false 23 5.115,2.156 5.469,2.365 0.354,0.208 10 false 6 6.385,0.167 6.74,0.375 0.354,0.208 10 false 8 6.396,0.635 6.75,0.844 0.354,0.208 10 false 2 6.354,1.271 6.708,1.479 0.354,0.208 10 false 13 6.344,1.76 6.698,1.969 0.354,0.208 10 false 14 1.042,3.656 1.25,3.865 0.208,0.208 10 false 1 2.438,4.104 2.646,4.313 0.208,0.208 10 false 1 1.313,3.667 1.667,3.875 0.354,0.208 10 false 2 2.698,4.115 3.052,4.323 0.354,0.208 10 false 2 1.427,6.927 1.583,7.156 0.156,0.229 10 false 1 1.969,6.927 2.125,7.156 0.156,0.229 10 false 1 3.125,7.135 3.281,7.365 0.156,0.229 10 false 1 3.125,7.635 3.479,7.844 0.354,0.208 10 false 2 5.031,2.792 5.469,3 0.438,0.208 10 false N32 5.396,2.802 6.063,3.021 0.667,0.219 10 false CLL 5.073,2.583 5.427,2.792 0.354,0.208 10 false 17 4.188,8.073 7.083,8.302 2.896,0.229 10 false *: Fusible Link Block Assembly (Main Battery)

CAUTION / NOTICE / HINT

NOTICE:: ·

Before replacing the engine stop and start ECU, read the number of starter operations and write it into a new engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

After replacing the engine stop and start ECU or air conditioning amplifier assembly, reset and perform learning of the air conditioning information in the engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

After replacing the engine stop and start ECU or airbag sensor assembly, clear and calibrate the deceleration sensor zero point in the engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

for Automatic Transmission:

When the engine stop and start ECU or electromagnetic oil pump is replaced, check the electromagnetic oil pump.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:: ·

Using the GTS, read the freeze frame data before troubleshooting. System condition information is recorded as freeze frame data the moment a DTC is stored. This information can be useful when troubleshooting.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>FREEZE FRAME DATA201906,999999,_51,_078825,_0382334,RM100000001IKMF,

·

DTCs for the stop and start system are not cleared even if the malfunction has been repaired. After repairing the malfunction, be sure to clear the DTCs.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>DTC CHECK / CLEAR201902,999999,_51,_078825,_0382334,RM100000001GBQA,

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - BBC-1 FUSE AND BBC-2 FUSE)

Disconnect the engine stop and start ECU connector.

Remove the BBC-1 fuse and BBC-2 fuse from the No. 1 engine room relay block and No. 1 junction block assembly.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N31-1 (BIN2) - BBC-2 fuse terminal 2	Always	Below 1 Ω
N31-3 (BIN1) - BBC-1 fuse terminal 2	Always	Below 1 Ω
N31-1 (BIN2) or BBC-2 fuse terminal 2 - Body ground and other terminals	Always	10 kΩ or higher
N31-3 (BIN1) or BBC-1 fuse terminal 2 - Body ground and other terminals	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STARTER RELAY AND STARTER NO.2 RELAY)

REPAIR OR REPLACE HARNESS OR CONNECTOR (ENGINE STOP AND START ECU - BBC NO. 1 FUSE OR BBC NO. 2 FUSE)

2.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STARTER RELAY AND STARTER NO.2 RELAY)

Disconnect the engine stop and start ECU connectors.

Remove the STARTER relay and STARTER NO.2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.

w/ Entry and Start System:

Disconnect the certification ECU (smart key ECU assembly) connector.

for Automatic Transmission:

Disconnect the park/neutral position switch assembly connector.

for Manual Transmission:

Disconnect the clutch start switch assembly (for lower) connector.

Disconnect the ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N32-21 (STA) - 2 (STARTER relay)	Always	Below 1 Ω
N32-23 (STA2) - 2 (STARTER NO.2 relay)	Always	Below 1 Ω
N32-21 (STA) or 2 (STARTER relay) - Body ground and other terminals	Always	10 kΩ or higher
N32-23 (STA2) or 2 (STARTER NO.2 relay) - Body ground and other terminals	Always	10 kΩ or higher
N31-1 (BIN2) - N32-21 (STA)	Always	10 kΩ or higher
N31-3 (BIN1) - N32-21 (STA)	Always	10 kΩ or higher
N31-1 (BIN2) - N32-23 (STA2)	Always	10 kΩ or higher
N31-3 (BIN1) - N32-23 (STA2)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

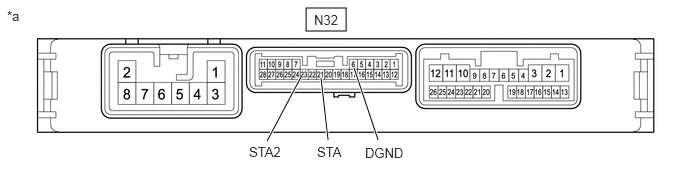

3.CHECK ENGINE STOP AND START ECU

REPAIR OR REPLACE HARNESS OR CONNECTOR (ENGINE STOP AND START ECU - STARTER RELAY OR STARTER NO.2 RELAY)

3.CHECK ENGINE STOP AND START ECU

3.188,0.083 3.604,0.323 0.417,0.24 2.781,1.469 3.135,0.802 true 3.417,1.458 3.344,0.813 true 3.938,1.458 3.688,0.708 true 0.073,0.083 0.385,0.281 0.313,0.198 10 false *a 3.271,0.125 3.667,0.323 0.396,0.198 10 false N32 2.594,1.5 3.125,1.698 0.531,0.198 10 false STA2 3.302,1.5 3.833,1.698 0.531,0.198 10 false STA 3.802,1.51 4.333,1.708 0.531,0.198 10 false DGND

Component without harness connected
(Engine Stop and Start ECU)

Disconnect the engine stop and start ECU connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
