STOP AND START STOP AND START SYSTEM P033562 Crankshaft Position Sensor "A" Signal Compare Failure

DESCRIPTION

The crankshaft position sensor sends an engine speed signal (NE signal) to the ECM. The engine speed signal is then sent directly from the NEO terminal of the ECM to the engine stop and start ECU. Additionally, the ECM sends the engine speed to the engine stop and start ECU via CAN communication. The engine stop and start ECU compares the NE signal and engine speed received via CAN communication to check for errors in the NE signal.

If the NE signal is abnormal, the engine stop and start ECU will blink the stop and start cancel indicator and stores DTC P033562.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Memory	Note
P033562	Crankshaft Position Sensor "A" Signal Compare Failure	All of the following conditions are met for 10 seconds (1 trip detection logic): · Normal communication between the ECM and the engine stop and start ECU. · Engine speed (NE signal) is below 6000 rpm. · Difference between the NE signal that is sent directly from ECM and the engine speed that is sent via CAN is 300 rpm or higher.	· Wire harness or connector · Crankshaft position sensor · ECM · Engine stop and start ECU	Blinks	DTC stored	SAE Code: P0335

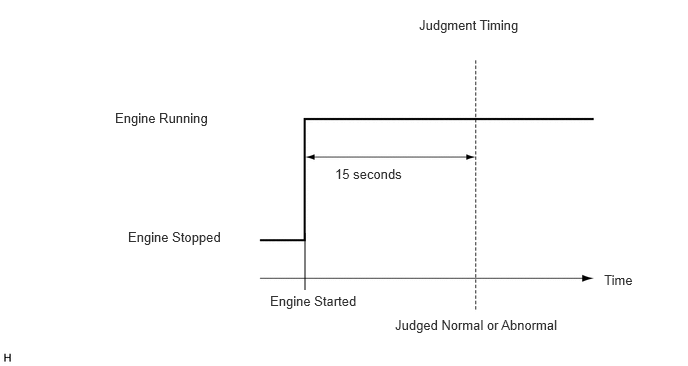

CONFIRMATION DRIVING PATTERN

CONFIRMATION AFTER TROUBLESHOOTING

HINT:: ·

If the cable is disconnected from the battery terminal, stop and start control is prohibited until refresh charge is completed.

In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item "Status of Battery Charge Control" changes from "Refresh Charge Mode". (Usually, idling the engine for 5 to 60 minutes with the battery fluid temperature at 11°C (51°F) or higher, the refresh charge will be completed.)

·

If the GTS is not available and the Data List item "Status of Battery Charge Control" cannot be checked, charge the battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

·

After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.

·

Allow the engine to idle for 3 minutes after it is warmed up and check that the engine idle speed is within 50 rpm of the target idle speed.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Stop and Start > Clear DTCs: 50002 392

Start the engine and wait for at least 15 seconds.

Check that DTCs are not output.

Powertrain > Stop and Start > Trouble Codes: 50001 392

3.177,2.427 3.177,3.021 false 1.198,1.146 2.417,1.438 1.219,0.292 10 false Engine Running 4.365,0.177 5.573,0.354 1.208,0.177 10 false Judgment Timing 3.49,1.729 4.302,1.906 0.813,0.177 10 false 15 seconds 6.292,2.833 6.656,3.01 0.365,0.177 10 false Time 1.333,2.385 2.417,2.615 1.083,0.229 10 false Engine Stopped 2.813,3.052 3.833,3.292 1.021,0.24 10 false Engine Started 4.115,3.302 6.313,3.51 2.198,0.208 10 false Judged Normal or Abnormal

STOP AND START SYSTEM OPERATION CHECK

HINT:: ·

If the cable is disconnected from the battery terminal, stop and start control is prohibited until refresh charge is completed.

In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item "Status of Battery Charge Control" changes from "Refresh Charge Mode". (Usually, idling the engine for 5 to 60 minutes with the battery fluid temperature at 11°C (51°F) or higher, the refresh charge will be completed.)

·

If the GTS is not available and the Data List item "Status of Battery Charge Control" cannot be checked, charge the battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

·

After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.

Start the engine and warm it up.

Turn the air conditioning system off.

Drive the vehicle at 7 km/h (4 mph) or more.

CAUTION:: When performing Confirmation Driving Pattern, obey all speed limits and traffic laws.

for Automatic Transmission:

Depress the brake pedal and stop the vehicle.

for Manual Transmission:

Stop the vehicle, move the shift lever to neutral and release the clutch pedal.

Allow the engine to stop by stop and start control. (for Automatic Transmission: Keep the shift lever in D.)

for Automatic Transmission:

Release the brake pedal with the shift lever in D to start the engine.

for Manual Transmission:

Depress the clutch pedal and start the engine.

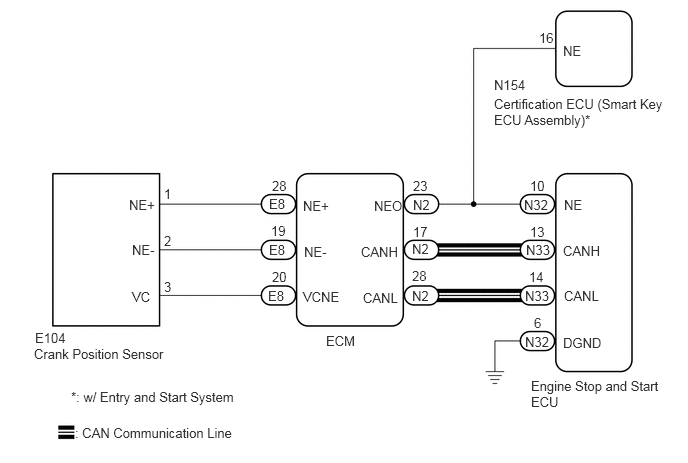

WIRING DIAGRAM

0.781,4.427 2.781,4.615 2,0.188 10 false : CAN Communication Line 0.354,3.604 2.427,3.802 2.073,0.198 10 false Crank Position Sensor 3.396,3.469 3.854,3.677 0.458,0.208 10 false ECM 5.531,3.938 6.938,4.323 1.406,0.385 10 false Engine Stop and Start ECU 5.146,1 6.969,1.344 1.823,0.344 10 false Certification ECU (Smart Key ECU Assembly)* 0.365,3.438 0.75,3.604 0.385,0.167 10 false E104 2.802,2.042 3.115,2.24 0.313,0.198 10 false E8 2.802,2.521 3.115,2.719 0.313,0.198 10 false E8 2.792,3 3.104,3.198 0.313,0.198 10 false E8 5.146,0.802 5.604,1 0.458,0.198 10 false N154 4.302,2.052 4.76,2.25 0.458,0.198 10 false N2 4.292,2.51 4.75,2.708 0.458,0.198 10 false N2 4.292,3 4.75,3.198 0.458,0.198 10 false N2 5.458,2.052 5.917,2.25 0.458,0.198 10 false N32 5.479,2.521 5.958,2.719 0.479,0.198 10 false N33 5.469,3 5.885,3.156 0.417,0.156 10 false N33 5.469,3.479 5.927,3.677 0.458,0.198 10 false N32 5.875,2.052 6.188,2.25 0.313,0.198 10 false NE 5.865,0.448 6.177,0.646 0.313,0.198 10 false NE 5.865,2.531 6.406,2.74 0.542,0.208 10 false CANH 5.875,3 6.417,3.208 0.542,0.208 10 false CANL 5.865,3.49 6.406,3.698 0.542,0.208 10 false DGND 3.896,2.063 4.208,2.26 0.313,0.198 10 false NEO 3.76,2.542 4.302,2.75 0.542,0.208 10 false CANH 3.781,3.021 4.323,3.229 0.542,0.208 10 false CANL 3.156,2.063 3.469,2.26 0.313,0.198 10 false NE+ 3.167,2.542 3.479,2.74 0.313,0.198 10 false NE- 3.156,3.01 3.573,3.208 0.417,0.198 10 false VCNE 1.344,2.052 1.656,2.25 0.313,0.198 10 false NE+ 1.375,2.521 1.688,2.719 0.313,0.198 10 false NE- 1.375,3.01 1.625,3.198 0.25,0.188 10 false VC 1.708,1.938 1.865,2.135 0.156,0.198 10 false 1 1.708,2.427 1.865,2.625 0.156,0.198 10 false 2 1.708,2.906 1.865,3.104 0.156,0.198 10 false 3 2.833,1.854 3.146,2.052 0.313,0.198 10 false 28 2.823,2.323 3.281,2.521 0.458,0.198 10 false 19 2.833,2.802 3.292,3 0.458,0.198 10 false 20 4.302,1.854 4.615,2.052 0.313,0.198 10 false 23 4.302,2.333 4.615,2.531 0.313,0.198 10 false 17 4.292,2.792 4.604,2.99 0.313,0.198 10 false 28 5.521,1.854 5.833,2.052 0.313,0.198 10 false 10 5.521,2.333 5.833,2.531 0.313,0.198 10 false 13 5.51,2.802 5.823,3 0.313,0.198 10 false 14 5.563,3.281 5.719,3.479 0.156,0.198 10 false 6 5.615,0.313 5.927,0.51 0.313,0.198 10 false 16 0.74,4.052 3.24,4.24 2.5,0.188 10 false *: w/ Entry and Start System

CAUTION / NOTICE / HINT

NOTICE:: ·

Before replacing the engine stop and start ECU, read the number of starter operations and write it into a new engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

After replacing the engine stop and start ECU or air conditioning amplifier assembly, reset and perform learning of the air conditioning information in the engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

After replacing the engine stop and start ECU or airbag sensor assembly, clear and calibrate the deceleration sensor zero point in the engine stop and start ECU.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

·

for Automatic Transmission:

When the engine stop and start ECU or electromagnetic oil pump is replaced, check the electromagnetic oil pump.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_078825,_0382334,RM100000001IKMD,

HINT:: ·

Using the GTS, read the freeze frame data before troubleshooting. System condition information is recorded as freeze frame data the moment a DTC is stored. This information can be useful when troubleshooting.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>FREEZE FRAME DATA201906,999999,_51,_078825,_0382334,RM100000001IKMF,

·

DTCs for the stop and start system are not cleared even if the malfunction has been repaired. After repairing the malfunction, be sure to clear the DTCs.

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>DTC CHECK / CLEAR201902,999999,_51,_078825,_0382334,RM100000001GBQA,

PROCEDURE

1.CHECK DTC OUTPUT (ECD SYSTEM)

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Read the DTCs.

Powertrain > Engine > Trouble Codes: 50001 372

Result:

Result	Proceed to
ECD system DTCs are not output	A
ECD system crankshaft position sensor circuit DTC is output	B

2.READ VALUE USING GTS (ENGINE SPEED)

GO TO ECD SYSTEM

Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ DPF)>DIAGNOSTIC TROUBLE CODE CHART201906,202310,_51,_078856,_0385516,RM100000001JA4L,202310,999999,_51,_078856,_0385516,RM100000002G29I,

2.READ VALUE USING GTS (ENGINE SPEED)

Connect the GTS to the DLC3

Start the engine.

Turn the GTS on.

Enter the following menus: Powertrain / Stop and Start / Data List / Engine Speed.

Powertrain > Stop and Start > Data List

Tester Display
Engine Speed

50003 392 502

According to the display on the GTS, read the Data List.

OK:: Engine speed signal is input (the speeds displayed on the tachometer and the GTS are almost the same).

Result:

Proceed to
OK
NG

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

3.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - ECM)

Disconnect the engine stop and start ECU connector.

Disconnect the ECM connector.

w/ Entry and Start System:

Disconnect the certification ECU (smart key ECU assembly) connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N32-10 (NE) - N2-23 (NEO)	Always	Below 1 Ω
N32-10 (NE) or N2-23 (NEO) - Body ground and other terminals	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - BODY GROUND)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - BODY GROUND)

Disconnect the engine stop and start ECU connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N32-6 (DGND) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

5.CHECK ENGINE STOP AND START ECU (NE SIGNAL INPUT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK ENGINE STOP AND START ECU (NE SIGNAL INPUT)

Start the engine and warm it up.

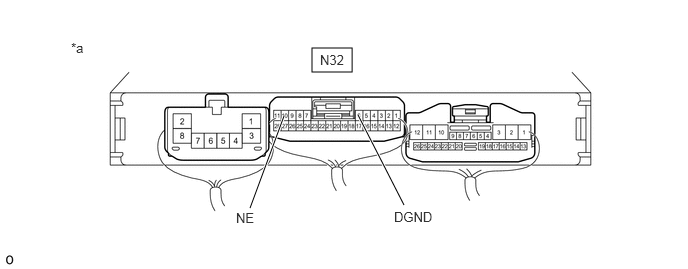

Connect an oscilloscope to the NE and DGND terminals of the engine stop and start ECU connector.

3.25,0.5 3.667,0.75 0.417,0.25 2.604,2.167 2.958,1.208 true 4.208,2.135 3.729,1.198 true 3.333,0.542 3.76,0.771 0.427,0.229 10 false N32 2.458,2.188 2.885,2.417 0.427,0.229 10 false NE 4.104,2.177 4.625,2.417 0.521,0.24 10 false DGND 0.74,0.417 1.167,0.646 0.427,0.229 10 false *a

Component with harness connected
(Engine Stop and Start ECU)

2.792,1.042 3.25,1.24 0.458,0.198 10 false GND 0.26,0.073 1.49,0.271 1.229,0.198 10 false 5 V/DIV. 1.313,1.906 2.844,2.104 1.531,0.198 10 false 2 ms./DIV.

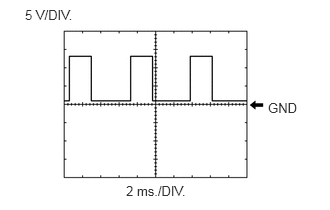

Check the signal waveform according to the condition(s) in the table below.

Item	Condition
Tester Connection	N32-10 (NE) - N32-6 (DGND)
Tool Setting	5 V/DIV., 2 ms./DIV.
Condition	Idling after engine warmed up

Result:

Result	Proceed to
Pulse generation (See waveform)	A
Stuck at 0 to 1.5 V	B
Stuck at 8 to 14 V	C

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL201906,202310,_51,_078825,_0383278,RM100000001IZVW,202310,999999,_51,_078825,_0383278,RM100000002G4R3,

6.CHECK ENGINE STOP AND START ECU (NE TERMINAL VOLTAGE)

GO TO ECD SYSTEM

Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ DPF)>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078856,_0385516,RM100000001H9CA,

6.CHECK ENGINE STOP AND START ECU (NE TERMINAL VOLTAGE)

Component with harness connected
(Engine Stop and Start ECU)

Disconnect the ECM connector.

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
N32-10 (NE) - N32-6 (DGND)	Ignition switch ON	8 to 14 V

HINT:: DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.

Result:

Proceed to
OK
NG

GO TO ECD SYSTEM

Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ DPF)>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078856,_0385516,RM100000001H9CA,

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL201906,202310,_51,_078825,_0383278,RM100000001IZVW,202310,999999,_51,_078825,_0383278,RM100000002G4R3,
