STOP AND START  STOP AND START SYSTEM  DATA LIST / ACTIVE TEST


DATA LIST


HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.


NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.


a.

Warm up the engine.


b.

Turn the ignition switch off.


c.

Connect the GTS to the DLC3.


d.

Turn the ignition switch to ON.


e.

Turn the GTS on.


f.

Enter the following menus: Powertrain / Stop and Start / Data List.


g.

According to the display on the GTS, read the Data List.



Powertrain > Stop and Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Total Distance Traveled Total distance traveled Min.: 0
Max.: 1677721.5 		- -
Total Distance Traveled - Unit Unit of Total Distance Traveled km / mile - -
Neutral Switch
·

Park/Neutral position switch assembly status*1

·

Neutral position switch status*2


OFF / ON
·

for Automatic Transmission:

ON: Shift lever in P or N

OFF: Shift lever not in P or N

·

for Manual Transmission:

ON: Shift lever in neutral

OFF: Shift lever not in neutral


-
IG Switch Ignition or starter switch assembly*3 or push start switch assembly*4 signal OFF / ON ON: Ignition switch ON -
Stop Light SW (ECM) Stop light switch assembly signal from ECM OFF / ON ON: Brake pedal depressed
OFF: Brake pedal fully released 		This is sent from the ECM.
Stop Light SW (ABS/VSC) Stop light switch assembly signal from electronically controlled brake system OFF / ON ON: Brake pedal depressed
OFF: Brake pedal fully released 		This is sent from the skid control ECU (brake actuator assembly).
Driver Courtesy Switch Signal Driver door courtesy switch signal OFF / ON ON: Driver side door open
OFF: Driver side door closed 		-
Hood Courtesy Switch Hood courtesy switch signal OFF / ON ON: Engine hood closed
OFF: Engine hood open 		-
Stop&Start Cancel Switch Stop and start system cancel switch (eco run cancel switch assembly) signal OFF / ON ON: Stop and start system cancel switch (eco run cancel switch assembly) pressed
OFF: Stop and start system cancel switch (eco run cancel switch assembly) not pressed 		-
Starter Starter status OFF / ON ON: Cranking
OFF: Not cranking 		-
Starter Motor Starter motor status OFF / ON ON: Cranking
OFF: Not cranking 		-
Engine Starter Signal Starter signal status OFF / ON ON: Cranking
OFF: Not cranking 		This is sent from the ECM.
Driver Seat Belt Buckle Switch Driver seat belt buckle switch status Buckled / Not Buckled / Unfix / Abnormal Buckled: Driver seat belt fastened
Not Buckled: Driver seat belt not fastened 		-
Engine Speed (ECM) Engine speed signal from ECM via CAN communication Min.: -25600 rpm
Max.: 25599.21875 rpm 		650 to 750 rpm: When idling after warm up, shift lever in N and no load This is sent from the ECM.
Battery Current Battery current Min.: -125 A
Max.: 124.99618 A 		- -
Brake Boost Pressure Brake booster pressure (absolute pressure) Min.: -640 kPa(abs) (-4800 mmHg(abs), -189 in.Hg(abs))
Max.: 639.98 kPa(abs) (4800.25 mmHg(abs), 188.99 in.Hg(abs)) 		Approx. 100 kPa (750 mmHg, 29.5 in.Hg): Ignition switch ON, brake pedal depressed several times (differs according to atmospheric pressure) -
Brake Negative Pressure Brake booster vacuum (negative pressure) Min.: -640 kPa(gauge) (-4800 mmHg(gauge), -189 in.Hg(gauge))
Max.: 639.98 kPa(gauge) (4800.25 mmHg(gauge), 188.99 in.Hg(gauge)) 		Approx. 0 kPa (0 mmHg, 0 in.Hg): Ignition switch ON, brake pedal depressed several times This item cannot be checked if a malfunction occurs in communication with ECM.
Master Cylinder Pressure Brake fluid pressure Min.: 0 MPa
Max.: 655.35 MPa 		0 to 5 MPa
(When normal pedal effort is applied) 		for Automatic Transmission
Gradient of Road Surface Degree of road gradient Min.: -10.24 m/s2
Max.: 10.16 m/s2 		-1.4 to 1.4 m/s2: Vehicle stopped on level surface -
Battery Fluid Temperature (Start) Battery fluid temperature at engine start Min.: -40°C (-40°F)
Max.: 215°C (419 °F) 		Differs according to battery fluid temperature: Engine start -
Battery Fluid Temperature Estimated temperature inside battery Min.: -40°C (-40°F)
Max.: 215°C (419 °F) 		Changes according to actual temperature: Driving after engine warmed up -
Buzzer Buzzer status OFF / ON ON: Buzzer on
OFF: Buzzer does not sound 		Refer to warning buzzer operation conditions.
Eco Indicator Light Stop and start indicator status OFF / ON ON: Stop and start indicator on or blinking
OFF: Stop and start indicator off 		-
Oil Pressure Warning Light Prohibit Oil pressure warning status Permit / Prohibit Prohibit: During engine stop by stop and start control
Permit: Not during engine stop by stop and start control 		Engine stop and start ECU informs the combination meter assembly that the oil pressure warning does not come on during engine stop by stop and start control.
Oil Pump Relay Oil pump motor relay inside ECU status OFF / ON ON: Oil pump motor relay inside ECU is on for Automatic Transmission
Electromagnetic Oil Pump Drive Request Electromagnetic oil pump drive request status OFF / ON ON: Drive requested
OFF: Drive not requested 		for Automatic Transmission
Electromagnetic Oil Pump Check Request Request to perform the check before operating when the electromagnetic oil pump receives a drive request OFF / ON -
·

for Automatic Transmission

·

This item displays ON when a check is requested


Stop&Start Cancel Light Code Transmission code from the engine stop and start ECU to the combination meter assembly 0 / 1 / 2 / 3 / 4
0: Extinction
1: Lighting
2: Blink
3: -
4: DTC output 		0: Stop and start cancel indicator off
1: Stop and start cancel indicator on 		Stop and start cancel indicator on/blinking/off request sent to combination meter assembly.
Brake Pressure Hold Request Brake fluid pressure holding request during stop and start control OFF / ON ON: Shift lever in D and engine stopped by stop and start control
OFF: Shift lever in D and engine not stopped by stop and start control
·

for Automatic Transmission:

·

ON is displayed when a brake fluid pressure holding request is sent during stop and start control or the engine is stopped by stop and start control with the shift lever in D.


Brake Pressure Hold Request Status Brake fluid pressure holding status during stop and start control Normal Release / Quick Release / Hold / Immediate Release - for Automatic Transmission
Stop&Start Operating Permission (Neutral Switch)
·

Permission of stop and start control based on the park/neutral position switch assembly conditions*1

·

Permission of stop and start control based on the neutral position switch conditions*2


NG / OK - -
Stop&Start Operating Permission (Vehicle Speed) Permission of stop and start control based on the vehicle speed conditions NG / OK OK: Vehicle stopped -
Stop&Start Precondition Permission of stop and start control with all preconditions met OFF / ON ON: Preconditions for stop and start control have been met Condition of permission or prohibition for terms listed below.
(ECM 1, ECM 2, ABS/VSC, Elapsed Time After IG-ON, DTC, A/C, Idling Stop Performance Waiting Time, After Running, Engine Hood Closed, Driver Door Closed, Cancel Switch, AT/CVT, AT/CVT 2, Interval For Starter, Key Operation, Driver Side Buckle SW, Ambient Temperature)
For details on the preconditions, refer to System Description.
Stop&Start Precondition 2 Permission of stop and start control with all preconditions met OFF / ON ON: Preconditions for stop and start control have been met Condition of permission or prohibition for terms listed below.
(Idling, Road Surface Gradient, No Shift Operation, Brake Negative Pressure, Steering, Electromagnetic Oil Pump, Starter Check Complete)
Hill Judging Hill judgment Not Hill / Hill - -
IG-ON State Before Starting Permission of stop and start control based on the vehicle speed since ignition switch turned to ON OFF / ON - -
Stop&Start Operating Permission (Shift D Position) Permission of stop and start control based on shift lever position NG / OK OK: Vehicle being driven with shift lever in D for Automatic Transmission
Stop&Start Operating Prohibition (CVT) Prohibition of stop and start control by continuously variable transaxle system Permit / Prohibit - -
Engine Start Request (Accelerator) Engine start request due to accelerator pedal operation OFF / ON ON: Engine start requested due to accelerator pedal being depressed for Automatic Transmission
Engine Start Request (Brake Negative Pressure Low) Engine start request due to low brake booster vacuum OFF / ON ON: Brake booster vacuum insufficient while engine stopped by stop and start control
·

OFF is usually displayed

·

ON is displayed when the engine is started due to decreased brake booster vacuum caused by depressing the brake pedal several times


Engine Start Request (Brake Release) Engine start request due to brake pedal operation OFF / ON ON: Engine start requested due to brake pedal being released for Automatic Transmission
Engine Start Request (Shift Lever) Engine start request due to shift lever operation OFF / ON ON: Engine start requested due to operation of shift lever for Automatic Transmission
Engine Start Request (Shift Uncertain) Engine start request due to uncertain shift lever position OFF / ON ON: Engine start requested due to uncertain shift lever position while engine is stopped by stop and start control for Automatic Transmission
Engine Start Request (ABS Vehicle Speed) Engine start request based on vehicle speed signal from the electronically controlled brake system OFF / ON ON: Engine start requested due to speed signal while the engine is stopped by stop and start Engine start request based on the speed sensor signal
Engine Start Request (Steering) Engine start request by the power steering system OFF / ON ON: Engine start requested due to operation of power steering system -
Engine Start Request (Cancel SW) Engine start request by stop and start system cancel switch (eco run cancel switch assembly) OFF / ON ON: Engine start requested due to operation of the stop and start system cancel switch (eco run cancel switch assembly) while the engine is stopped by stop and start control -
Engine Start Request (IG Switch) Engine start request due to ignition or starter switch assembly*3 or push start switch assembly*4 operation OFF / ON ON: Engine started using ignition or starter switch assembly*3 or push start switch assembly*4 while engine stopped by stop and start control -
Engine Start Request (A/C) Engine start request from air conditioning system OFF / ON ON: Engine start requested by air conditioning system -
Engine Start Request (AT/CVT) Engine start request from automatic transmission system OFF / ON ON: Engine start requested by automatic transmission system while the engine is stopped by stop and start control for Automatic Transmission
Engine Start Request (Battery Condition) Engine start request based on battery performance OFF / ON OFF: No engine start requested due to low battery voltage while the engine is stopped by stop and start control -
Engine Start Request (ABS/VSC) Engine start request from electronically controlled brake system OFF / ON ON: Engine start requested by skid control ECU (brake actuator assembly) for Automatic Transmission
Engine Start Request (ECM) Engine start request from ECM OFF / ON ON: Engine start requested by ECM -
Engine Start Request (Detect DTC) Engine start request due to output of DTCs OFF / ON ON: Engine start requested due to output of stop and start system DTCs -
Engine Start Request (Shift P Position and Brake) Engine start request due to brake being depressed when the shift lever in P and the engine is stopped due to stop and start control OFF / ON ON: Engine start requested for Automatic Transmission
Engine Start Request (4WD and Rear Differential Lock) Engine start request by 4WD and rear differential lock OFF / ON ON: Vehicle is switched to 4WD or rear differential is locked while the engine is stopped due to stop and start control Unused
Engine Stall History during Stop&Start (Hood Open) History of engine stall due to the engine hood being opened with shift lever in D while the engine is stopped by stop and start control No / Yes No: No history -
Engine Stall History during Stop&Start (Collision or Battery Voltage Low) History of engine stall due to a collision or low battery voltage when stop and start control operating No / Yes No: No history -
Engine Stall History during Engine Starting (Collision) History of engine stall due to a collision while engine stopped by stop and start control No / Yes No: No history -
Engine Start Fail History of engine restart failure while engine stopped by stop and start control No / Yes No: No history -
Starter Operation # Number of starter operations (count record) Min.: 0 times
Max.: 16777215 times 		- -
Number of Engine Starts (IG-ON) The number of starter operations by ignition or starter switch assembly*3 or push start switch assembly*4 operation Min.: 0 times
Max.: 16777215 times 		- -
Number of Engine Starts (Stop & Start) The number of starter operations by stop and start control Min.: 0 times
Max.: 16777215 times 		- -
Deceleration Sensor Offset Value Deceleration sensor offset value Min.: -1176.04 m/s2
Max.: 1176 m/s2 		-0.9 to 0.9 m/s2: After deceleration sensor zero point learning completion -
Deceleration Sensor Calibration Deceleration sensor calibration status Incomplete / Running / Complete / Err1 / Err2 / Err3 Complete: After deceleration sensor zero point learning completion -
Stop&Start of Engine State Stop and start control status IG / Run / Stop Request / Stop / Restart
·

IG: Engine stopped

·

Run: Engine running

·

Stop Request: Engine stop requested

·

Stop: Engine stopped (by stop and start control)

·

Restart: Engine restarted


-
Idling Stop Rate Rate of the idling stop time to the entire ignition switch ON time of this trip Min.: 0%
Max.: 255% 		- -
Total Idling Stop Rate Rate of the overall idling stop time to the overall ignition switch ON time Min.: 0%
Max.: 255% 		- -
Stop & Start A/C Mode Selected air conditioning mode Undefined / Normal / Stop&Start Prioritized / A/C Prioritized - -

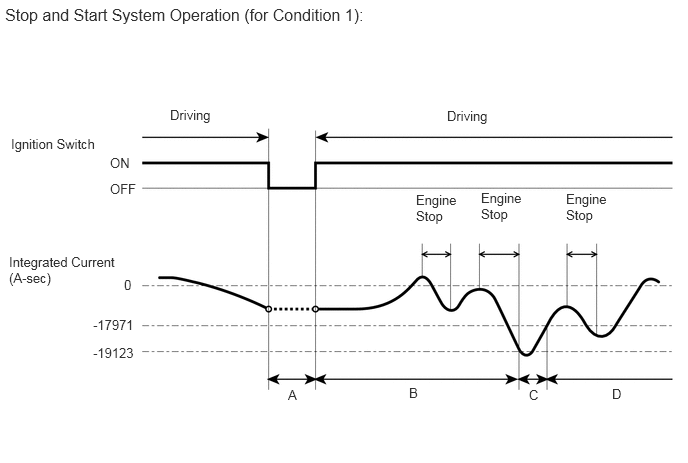

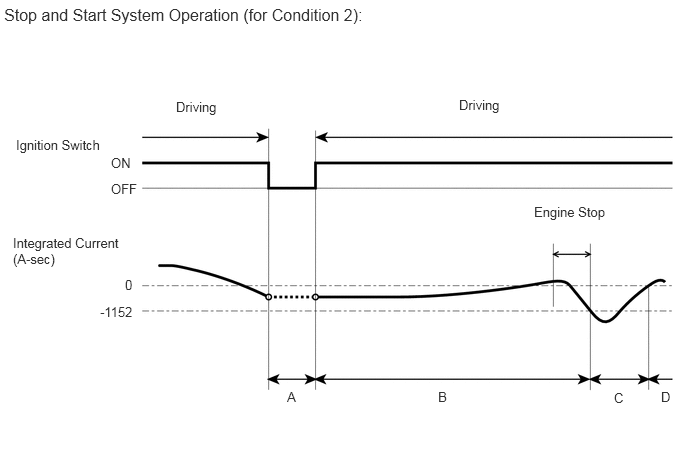

Integrated Current Battery integrated current Min.: -268435 Asec
Max.: 268435 Asec 		Differs according to vehicle condition (charge/discharge conditions) Refer to "Regarding Battery Integrated Current" for details.*5
Status of Battery Charge Control Battery charge control status Charge Control Coordination Mode / Stop and Start Standalone Mode / Refresh Charge Mode / Stop and Start Restriction Mode / Temperature High/Low Mode / Abnormal Mode / Battery Condition Judgment Mode / Low Temperature Mode - -
Cranking Time Engine cranking time Min.: 0 msec
Max.: 134215.68 msec 		300 to 3000 msec: Duration of starter operation by stop and start control -
Minimum Voltage (Cranking) Minimum voltage when cranking engine Min.: -327.68 V
Max.: 327.67 V 		6 to 11 V Minimum battery voltage measured after the cranking.
Minimum Voltage (Starter Solenoid Engagement) Minimum voltage when starter begins operation Min.: -327.68 V
Max.: 327.67 V 		6 to 11 V Minimum battery voltage the starter starts operating.
Starter Type Starter assembly type Other than Tandem Starter / Tandem Starter Tandem Starter -
State of BBC Backup boost converter status Cycle Err / Overvoltage / Overload / Normal / Low Vol / Duty Err / Stop&Start Sensor Electric Supply Low / Stop&Start CPU Malfunction / BBC Overcurrent / Stop&Start Starter Overcurrent / Stop&Start Reduced Voltage Reset Normal: Backup boost converter operating normally
·

Duty Err:

-

Abnormal duty ratio is detected.


·

Cycle Err:

-

Abnormal output voltage cycle is detected.


·

Low Vol:

-

A decrease in the voltage of the control IC power source within the backup boost converter is detected when ignition switch is turned to ON.


·

Overload:

-

Overcurrent is detected.


·

Overvoltage:

-

When the ignition switch is ON:

(1)

Overvoltage is detected at the control IC power source in the backup boost converter

(2)

Overheating is detected at the control IC power source in the backup boost converter


-

When boosting:

(1)

Malfunction is detected in the feedback circuit in the backup boost converter

(2)

Too high or low output voltage.




State of External BBC External backup boost converter status Cycle Err / Overvoltage / Overload / Normal / Low Vol / Duty Err / Low Temp - -
External BBC Overcurrent History External backup boost converter overcurrent history No / Yes - -
Stop&Start Operating Permission (Idling) Permission of stop and start control based on the engine idle conditions NG / OK OK: Engine idling (engine speed below 1250 rpm) without accelerator pedal being depressed -
Stop&Start Operating Permission (Brake Master Pressure 0 Point Correction) Permission of stop and start control due to completion of brake master cylinder pressure zero point calibration NG / OK OK: Brake master cylinder pressure zero point calibration completed normally for Automatic Transmission
Stop&Start Operating Permission (ABS/VSC 2) Permission of stop and start control by electronically controlled brake system NG / OK OK: Stop and start control permitted based on brake system normal condition, or Active Test (forced permission) performed for Automatic Transmission
Stop&Start Operating Permission (Brake Negative Pressure) Permission of stop and start control based on the brake booster vacuum conditions NG / OK OK: Brake vacuum is 31.5 kPa to 56.8 kPa (236 mmHg, 9.3 in.Hg to 426 mmHg, 16.8 in.Hg) or more for 1 second or longer -
Stop&Start Operating Permission (No Shift Operation) Permission of stop and start control based on the shift lever operation condition NG / OK OK: Shift lever not moved for 1 second or more for Automatic Transmission
Stop&Start Operating Permission (After Running) Permission of stop and start control based on the initial trip conditions after the ignition switch is turned to ON NG / OK OK: Vehicle has been driven at 7 km/h (4 mph) or more OK is displayed after the initial trip until the ignition switch is turned off.
Stop&Start Operating Permission (Steering) Permission of stop and start control by the power steering ECU (rack and pinion power steering gear assembly) NG / OK OK: Power steering system is normal operated -
Stop&Start Operating Permission (Engine Hood Closed) Permission of stop and start control based on the engine hood open/close conditions NG / OK OK: Engine hood closed -
Stop&Start Operating Permission (Cancel Switch) Permission of stop and start control based on the stop and start system cancel switch (eco run cancel switch assembly) operation NG / OK OK: Stop and start control is permitted (stop and start cancel indicator is not illuminated) -
Stop&Start Operating Permission (Driver Side Buckle SW) Permission of stop and start control based on the driver seat belt condition NG / OK OK: The driver side buckle switch fastened -
Stop&Start Operating Permission (Driver Door Closed) Permission of stop and start control based on the driver door open/close conditions NG / OK OK: Driver door closed -
Stop&Start Operating Permission (Key Operation) Permission of stop and start control based on the ignition or starter switch assembly*3 or push start switch assembly*4 operation NG / OK OK: Ignition or starter switch assembly*3 or push start switch assembly*4 not operated -
Stop&Start Operating Permission (Interval For Starter) Permission of stop and start control based on the conditions after engine restart NG / OK OK: 4 minutes or less have elapsed after engine restarted -
Stop&Start Operating Permission (Starter Check Complete) Permission of stop and start control based on the starter circuit self-check result NG / OK OK: Stop and start control enabled (starter circuit normal) When the engine stop and start ECU is abnormal, the starter drive circuit is judged to be abnormal, and NG is displayed
Stop&Start Operating Permission (A/C) Permission of stop and start control based on the air conditioning conditions NG / OK OK: Air conditioning conditions met -
Stop&Start Operating Permission (AT/CVT 2) Permission of stop and start control by automatic transmission system NG / OK OK: Electromagnetic oil pump normal
·

for Automatic Transmission

·

This is sent from the ECM via CAN communication.


Stop&Start Operating Permission (AT/CVT) Permission of stop and start control by automatic transmission system NG / OK OK: When the automatic transmission system is normal and the automatic transmission fluid temperature is within in the permissible operating range (25 to 110°C (77 to 230°F)) for stop and start system operation
·

for Automatic Transmission

·

This is sent from the ECM via CAN communication.


Stop&Start Operating Permission (Electromagnetic Oil Pump) Electromagnetic oil pump preliminary check status NG / OK OK: Check completed for Automatic Transmission
Stop&Start Operating Permission (Power Management) Permission of stop and start control based on the battery conditions NG / OK OK: Stop and start control permitted based on battery conditions, or Active Test (forced permission) performed -
Stop&Start Operating Permission (ABS/VSC) Permission of stop and start control by electronically controlled brake system NG / OK OK: Stop and start control permitted based on brake system normal condition, or Active Test (forced permission) performed for Automatic Transmission
Stop&Start Operating Permission (ECM 2) Permission of stop and start control by ECD system NG / OK OK: Stop and start control enabled (ECD system is normal) This is sent from the ECM through CAN communication.
Stop&Start Operating Permission (ECM 1) Permission of stop and start control by the ECM NG / OK OK: Stop and start control enabled (ECD system is normal) -
Stop&Start Operating Permission (Elapsed Time After IG-ON) Permission of stop and start control based on time elapsed since ignition switch turned to ON NG / OK OK: Permitted
NG: Not permitted 		-
Stop&Start Operating Permission (Idling Stop Performance Waiting Time) Permission of stop and start control to be operated 2 or more times during a stop based on stop time NG / OK OK: Permitted
NG: Not permitted 		-
Stop&Start Operating Permission (Ambient Temperature) Permission of stop and start control based on the air conditioning conditions NG / OK OK: Ambient temperature -5°C (23°F) or higher -
Stop&Start Operating Permission (Road Surface Gradient) Permission of stop and start control based on the road grade conditions NG / OK OK: Vehicle stopped on level road (not steep grade) -
Stop&Start Operating Permission (DTC) Permission of stop and start control based on the DTC output conditions NG / OK OK: DTC not output -
Stop&Start Operating Permission (Minimum Voltage (Starter Solenoid Engagement)) Permission of stop and start control based on minimum voltage during starter solenoid engagement NG / OK OK: Minimum voltage when starter begins operation is equal to the threshold or higher If both Minimum Voltage (Cranking) condition and Minimum Voltage (Starter Solenoid Engagement) condition are OK, stop and start control is permitted.
Stop&Start Operating Permission (Minimum Voltage (Cranking)) Permission of stop and start control based on minimum voltage during cranking NG / OK OK: Minimum voltage when cranking is equal to the threshold or higher If both Minimum Voltage (Cranking) condition and Minimum Voltage (Starter Solenoid Engagement) condition are OK, stop and start control is permitted.
Stop&Start Operating Permission (4WD and Rear Differential Lock) Permission of stop and start control by the 4WD and rear differential lock NG / OK OK: Permitted
NG: When in 4WD or with the rear differential in the lock condition 		Unused
Steering Angle Steering angle Min.: -49152 deg
Max.: 49150.5 deg 		- -
Steering Angle Velocity Steering wheel turning speed Min.: -32768 deg/s
Max.: 32767 deg/s 		- -
Shift Position Shift lever position Unset / B / D / R / N / P Shift lever position for Automatic Transmission
Engine Stop Request Engine stop request OFF / ON ON: During engine stop by stop and start control
OFF: Not during engine stop by stop and start control 		ON is displayed when fuel-cut is performed by stop and start control, engine start is not requested, or starter is forced to operate.
Stop&Start Cancel Stop and start system cancel status Not Cancel / Cancel Cancel: Stop and start system cancel switch (eco run cancel switch assembly) depressed -
Auto A/C Availability of air conditioning system on vehicle Without / With With: Equipped with air conditioning system
Without: Not equipped with air conditioning system 		Air conditioning information needs to be registered after engine stop and start ECU replacement.
Running History Vehicle driving record OFF / ON ON: History of driving vehicle at 7 km/h (4 mph) or more (without DTC output) Turns OFF when the engine is stopped by stop and start control.
Wheel Speed Malfunction Wheel speed sensor malfunction status OFF / ON OFF: Input value from speed sensor is normal ON remains displayed when any input values from the wheel speed sensors are abnormal.
Fuel Cut Signal Fuel cut signal OFF / ON ON: Fuel cut operating -
Idle Engine idling status OFF / ON ON: Accelerator pedal fully released
OFF: Accelerator pedal depressed 		This is sent from the ECM.
Engine Start (IG SW) Engine start by ignition or starter switch assembly*3 or push start switch assembly*4 operation OFF / ON ON: Engine start by ignition or starter switch assembly*3 or push start switch assembly*4 operation
OFF: Except engine start by ignition or starter switch assembly*3 or push start switch assembly*4 operation 		Indicates starter operation by operation of the ignition or starter switch assembly*3 or push start switch assembly*4.
Engine Start Request (Courtesy SW or Buckle SW) Engine start request by courtesy switch (for driver side) or driver side buckle switch OFF / ON ON: Engine start requested due to operation of the courtesy switch (for driver side) or driver side buckle switch while the engine is stopped by stop and start control -
Stop&Start Operating Permission (Integrated Current) Permission of stop and start control based on the integrated current value conditions NG / OK OK: Integrated current value is equal to the threshold or more The status depends on the value of "Integrated Current", and the OK/NG threshold differs according to the status of battery charge control.
Refer to "Regarding Battery Integrated Current" below for details.*5
Stop&Start Operating Prohibition (Jump Start) Prohibition of stop and start control based on the jump start conditions Prohibit / Permit Permit: Except for Jump start conditions When Prohibit is displayed, stop and start control will be prohibited until the ignition switch is turned off.
Jump start conditions: Engine started with the engine hood open and the ignition switch START
Deceleration Sensor Output Stuck Deceleration sensor output stuck Normal / Abnormal Normal: Deceleration sensor output normal -
ABS Running Operating condition of the electronically controlled brake system OFF / ON ON: Electronically controlled brake system operating -
Engine Type Information Information on the engine type from the ECD system Avail / Not Avl Avail: Information of engine type received from ECM through CAN communication Not Avl is displayed if improper engine type information is received from the ECM via CAN communication.
Stop&Start Operating Permission (Master Cylinder Pressure) Permission of stop and start control based on the master cylinder pressure NG / OK OK: Brake pedal depressed while vehicle stopped for Automatic Transmission
Slip History Slip history existence Without / With - for Automatic Transmission
Engine Start Request (A/C 2) Engine start request from the air conditioning system OFF / ON ON: Engine start requested to ensure air conditioning system performance
OFF: Engine start not requested to ensure air conditioning system performance 		-
Blower Switch Blower switch status OFF / ON ON: Blower switch on
OFF: Blower switch off 		-
Steering Angle Sensor Malfunction Steering sensor malfunction OFF / ON OFF: Normal -
Steering Angle Sensor Circuit Open (+B) Steering sensor +B circuit malfunction OFF / ON OFF: Normal -
Steering Angle Sensor Abnormal Value Steering sensor value malfunction OFF / ON OFF: Normal -
Battery Type Set battery type Specified / Other Specified: Specified battery
Other: Non-specified battery 		-
Shift Mode Shift mode status OFF / S / M / D D or S: Shift lever in D or S
M: Unused
OFF: Shift lever not in D and S 		for Automatic Transmission
Air Suspension Available Availability of air suspension system on vehicle No / Yes No Unused
Welcab Available Availability of side left up seat system on vehicle No / Yes No Unused
External BBC Available Availability of external backup boost converter (eco run vehicle converter assembly) on vehicle No / Yes Yes: External backup boost converter (eco run vehicle converter assembly) equipped
No: External backup boost converter (eco run vehicle converter assembly) not equipped 		-
Brake Hold Function Available Availability of brake hold function on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
Steering Angle Sensor Available Availability of steering sensor on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
4WD Available Whether the vehicle is equipped with a 4WD ECU assembly No / Yes No Unused
PCS Available Availability of pre-collision system on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
Communication Method of Brake Boost Sensor Method of communication with vacuum sensor assembly Not CAN / CAN Not CAN: Vacuum sensor signal not received via CAN communication CAN: Vacuum sensor signal received via CAN communication
IPA Available Whether the vehicle is equipped with the intelligent parking assist function No / Yes No Unused
Cancel Switch (Multi-display) Available Whether the vehicle is equipped with a stop and start system cancel switch (eco run cancel switch assembly) No / Yes No: A stop and start system cancel switch (eco run cancel switch assembly) is not available
Yes: A stop and start system cancel switch (eco run cancel switch assembly) is available 		-
Number of Stop&Start Operating Prohibition (Elapsed Time After IG-ON) Number of times stop and start control prohibited due to time elapsed since ignition switch turned to ON Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (DTC) Number of stop and start control prohibitions due to DTC output Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Brake Negative Pressure) Number of stop and start control prohibitions due to brake negative pressure condition Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Interval) Number of stop and start control prohibitions due to periodic control prohibition after engine stop Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Driver Door Closed) Number of stop and start control prohibitions due to open driver door Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (Engine Hood Closed) Number of stop and start control prohibitions due to open engine hood Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (A/C) Number of stop and start control prohibitions due to air conditioning condition Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (After Running) Number of stop and start control prohibitions based on the initial trip conditions Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Power Management) Number of stop and start control prohibitions due to battery condition Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (Interval For Starter) Number of stop and start control prohibitions due to starter fail-safe operation Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Cancel Switch) Number of stop and start control prohibitions due to stop and start system cancel switch (eco run cancel switch assembly) operation Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Idling) Number of stop and start control prohibitions due to idling condition Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Road Surface Gradient) Number of stop and start control prohibitions due to road surface gradient condition Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (Steering) Number of stop and start control prohibitions due to power steering system condition Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Key Operation) Number of stop and start control prohibitions due to ignition or starter switch assembly*3 or push start switch assembly*4 operation Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Starter Check Complete) Number of stop and start control prohibitions due to incomplete starter circuit check Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Driver Side Buckle SW) Number of stop and start control prohibitions due to unfastened driver seat belt Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Ambient Temperature) Number of stop and start control prohibitions due to ambient temperature condition Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (ECM 2) Number of stop and start control prohibitions due to ECD system Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Start Minimum Voltage) Number of stop and start control prohibitions due to battery condition Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Battery Current) Number of stop and start control prohibitions due to battery condition Min.: 0 times
Max.: 4294967295 times 		- Unused
Number of Stop&Start Operating Prohibition (Integrated Current) Number of stop and start control prohibitions due to battery condition Min.: 0 times
Max.: 4294967295 times 		- -
Number of Stop&Start Operating Prohibition (Jump Start) Number of stop and start control prohibitions due to jump start Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Deceleration Sensor Abnormal) Number of stop and start control prohibitions due to deceleration sensor malfunction Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Engine F/C) Number of stop and start control prohibitions due to fuel-cut Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Abnormal Wheel Speed Sensor Inputs) Number of stop and start control prohibitions due to abnormal vehicle speed signal input Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Total Number of Engine Starts) Number of times stop and start control prohibited due to total number times engine started Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (Accelerator) Number of stop and start control prohibitions due to accelerator pedal operation Min.: 0 times
Max.: 65535 times 		- -
Number of Stop&Start Operating Prohibition (ABS/VSC 1) Number of stop and start control prohibitions due to electronically controlled brake system condition Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (No Shift Operation) Number of stop and start control prohibitions based on shift lever position condition Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (AT/CVT 2) Number of stop and start control prohibitions due to automatic transmission system condition Min.: 0 times
Max.: 4294967295 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (AT/CVT 1) Number of stop and start control prohibitions due to automatic transmission system condition Min.: 0 times
Max.: 4294967295 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (Brake Master Pressure 0 Pt Calibration Incomplete) Number of stop and start control prohibitions due to incomplete brake master cylinder pressure zero point calibration Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (Electromagnetic Oil Pump) Number of stop and start control prohibitions due to the electromagnetic oil pump before stop and start control was performed Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Stop&Start Operating Prohibition (4WD and Rear Differential Lock) Number of stop and start control prohibitions due to 4WD and rear differential lock Min.: 0 times
Max.: 65535 times 		- Unused
Number of Engine Start Request (Brake Negative Pressure Insufficient) Number of engine start requests due to insufficient brake booster vacuum Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (IG Switch) Number of engine start requests due to ignition or starter switch assembly*3 or push start switch assembly*4 operation Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (ECM) Number of engine start requests from ECD system Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (A/C) Number of engine start requests from air conditioning system Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Steering) Number of engine start requests due to steering operation Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Detect DTC) Number of engine start requests due to DTC output Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Battery Condition) Number of engine start requests due to low battery performance Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Cancel SW) Number of engine start requests due to stop and start system cancel switch (eco run cancel switch assembly) operation Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (CVT Vehicle Speed) Number of engine start requests due to CVT vehicle speed signal input Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (ABS Vehicle Speed) Number of engine start requests due to electronically controlled brake system vehicle speed signal input Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Driver Side Buckle) Number of engine start requests due to driver seat belt condition Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (Driver Door) Number of engine start requests due to driver door condition Min.: 0 times
Max.: 65535 times 		- -
Number of Engine Start Request (ABS/VSC) Number of engine start requests from electronically controlled brake system Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Engine Start Request (Accelerator) Number of engine start requests due to accelerator pedal operation Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Engine Start Request (Brake ON(P range)) Number of engine start requests due to brake pedal being depressed while shift lever is P Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Engine Start Request (AT) Number of engine start requests due to automatic transmission system conditions Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Engine Start Request (Shift Uncertain) Number of engine start requests due to uncertain shift lever position Min.: 0 times
Max.: 65535 times 		- for Automatic Transmission
Number of Engine Start Request (4WD and Rear Differential Lock) Number of engine start requests due to 4WD and rear differential lock Min.: 0 times
Max.: 65535 times 		- Unused
Number of Stop&Start Canceled (Hood Open) Number of times stop and start system canceled due to engine hood being opened Min.: 0 times
Max.: 255 times 		- -
Number of Engine Stall (Restart Failed) Number of times engine stalled due to engine restart failure while engine stopped by stop and start control Min.: 0 times
Max.: 255 times 		- -
Number of Stop&Start Canceled (Reduced Voltage) Number of times stop and start system canceled due to low battery voltage Min.: 0 times
Max.: 255 times 		- -
Number of Stop&Start Canceled (CPU Malfunction) Number of times stop and start system canceled due to engine stop and start ECU malfunction Min.: 0 times
Max.: 255 times 		- -
Coolant Temperature Engine coolant temperature Min.: -40°C (-40°F)
Max.: 215°C (419 °F) 		75 to 100°C (167 to 212°F): After warming up This is sent from the ECM.
Engine Speed Engine speed Min.: 0 rpm
Max.: 16383 rpm 		600 to 700 rpm: Idling (shift lever in N, engine warmed up and A/C off) -
Vehicle Speed Vehicle speed Min.: 0 km/h
Max.: 255 km/h (158 mph) 		Actual vehicle speed -
Atmospheric Pressure Atmospheric pressure (calculated value) Min.: 0 kPa(abs) (0 kgf/cm2(abs), 0 psi(abs))
Max.: 255 kPa(abs) (2.6 kgf/cm2(abs), 37 psi(abs)) 		Approx. 100 kPa(abs) (1.0 kgf/cm2(abs), 15 psi(abs)): Ignition switch ON (close to actual atmospheric pressure) ECM calculated value
Battery Voltage Battery voltage Min.: 0 V
Max.: 66.5 V 		9 to 14 V: Idling -
Ambient Temperature Ambient temperature Min.: -40°C (-40°F)
Max.: 215°C (419 °F) 		Close to ambient temperature -
Stop&Start Buzzer Buzzer status OFF / ON ON: Active Test [Stop&Start Buzzer] ON Active Test [Stop&Start Buzzer] support data.
Engine Start Request (Clutch Pedal ON) Engine start request due to clutch pedal operation OFF / ON ON: Engine start requested due to clutch pedal depressed for Manual Transmission
Engine Start Request (Clutch Lower Switch ON) Engine start request due to clutch start switch assembly (for lower) OFF / ON ON: Engine start requested due to clutch pedal fully depressed for Manual Transmission
Stop&Start Operating Permission (Manual Start) Permission of stop and start control based on manual start NG / OK OK: Stop and start control permitted based on manual start
NG: Stop and start control not permitted based on manual start
·

for Manual Transmission

·

Stop and start control is not permitted during the trip that a manual start is performed.


Stop&Start Operating Permission (Clutch) Permission of stop and start control based on clutch pedal operation history NG / OK - for Manual Transmission
Stop&Start Operating Permission (Shift Position) Permission of stop and start control based on shift operation history NG / OK - for Manual Transmission
ECB Available Availability of electronically controlled brake system on vehicle No / Yes No Unused
Total Number of Engine Starts Total number of engine starts Min.: 0
Max.: 1677721.5 		- -
Learning Status of External BBC Availability Learning status of external BBC availability Incomplete / Complete / Abort - -
ICS Available Availability of parking support brake system on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
LVN Available Availability of Traffic movement notification system on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
RSA Available Availability of road sign assist system on vehicle No / Yes Yes: Equipped
No: Not equipped 		-
Clutch Lower Switch Clutch start switch assembly signal OFF / ON ON: Clutch pedal fully depressed
OFF: Clutch pedal released 		for Manual Transmission
Clutch Upper Switch Clutch switch assembly signal OFF / ON ON: Clutch pedal fully released
OFF: Clutch pedal depressed 		for Manual Transmission
N Position Switch Signal Voltage Neutral position switch output voltage Min.: 0 V
Max.: 4.99 V 		0.7 to 4.3 V for Manual Transmission
Alternator Status Generator power generation status Normal / Abnormal Normal: Generator operation normal -
Number of Engine Starts (Clutch Released) The number of starter operations without clutch pedal being depressed Min.: 0 times
Max.: 4294967295 times 		- for Manual Transmission
Number of Engine Starts (Clutch Half-Depressed) The number of starter operations with clutch pedal depressed halfway Min.: 0 times
Max.: 4294967295 times 		- for Manual Transmission
Wrong Operation (Start) Incorrect start operation OFF / ON ON: Incorrect start operation
·

for Manual Transmission

·

A vehicle with a manual transmission was started by shifting without depressing the clutch pedal.


Manual Start History during Stop&Start History of engine started by manual start while engine stopped by stop and start system OFF / ON ON: Engine started by manual start while engine stopped by stop and start system
OFF: Engine not started by manual start while engine stopped by stop and start system
·

for Manual Transmission

·

Once "ON", this item remains "ON" until the ignition switch is turned off.


N/Clutch Lower Switch Malfunction Neutral position switch or clutch start switch assembly malfunction OFF / ON - for Manual Transmission
N/Clutch Upper Switch Malfunction Neutral position switch or clutch switch assembly malfunction OFF / ON - for Manual Transmission
Stop&Start Operating Prohibition (Manual Start for the First Time) Prohibition of stop and start control based on the manual start conditions Prohibit / Permit Permit: Except for manual start conditions for Manual Start
·

for Manual Transmission

·

When Prohibit is displayed, stop and start control will be prohibited until the ignition switch is turned off.

·

During manual start conditions for Manual Start:

-

Clutch start switch OFF or vehicle speed signal input

-

Neutral position switch OFF

-

Starter signal OFF



Clutch Status Clutch status Half Clutch / Disconnect / Connect / Unknown - for Manual Transmission
Number of Stop&Start Operating Prohibition (No Shift Operation (MT)) Number of times stop and start control prohibited due to no shift operation Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Stop&Start Operating Prohibition (Shift Operation without Clutch Pedal Operation) Number of times stop and start control prohibited due to shift operation without clutch operation Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Stop&Start Operating Prohibition (Manual Start for the First Time) Number of times stop and start control prohibited due to manual start condition Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Stop&Start Operating Prohibition (Manual Start during Stop&Start) Number of times stop and start control prohibited due to manual start while engine stopped by stop and start control Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Stop&Start Operating Prohibition (Neutral Switch Malfunction) Number of times stop and start control prohibited due to neutral position switch malfunction Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Engine Start Request (Clutch Release) Number of times engine started due to clutch release Min.: 0 times
Max.: 65535 times 		- for Manual Transmission
Number of Engine Start Request Prohibition (Wrong Shift Lever Operation) Number of times stop and start control prohibited due to incorrect start operation Min.: 0 times
Max.: 65535 times 		- for Manual Transmission

*1: for Automatic Transmission

*2: for Manual Transmission

*3: w/o Entry and Start System

*4: w/ Entry and Start System


*5: Regarding Battery Integrated Current

In the stop and start system, the engine stop and start ECU switches the system control mode (stop and start control permitted/prohibited) based on the battery condition (charge/discharge condition) to protect the battery and to ensure stable engine restarting performance.

The battery charge/discharge condition is determined from the integrated current value calculated from the battery sensor signal. The integrated current value is obtained by multiplying the current (Ampere) detected from the battery sensor by the time (seconds), and it is expressed in a unit A-sec.

HINT:

Example: Integrated current of -3110 A-sec corresponds to a load where current of 10 A flows out from the battery for 311 seconds.

The integrated current value can be read by checking the Data List item "Integrated Current" using GTS. The item "Stop&Start Operating Permission (Integrated Current)" shows the permission status of stop and start control (OK or NG) and is judged from the "Integrated Current" value.

Negative integrated current represents battery discharge, and positive represents battery charge. In other words, the "Integrated Current" value of the Data List item will decrease from the present value when the battery is discharged, and the value will increase when the battery is charged.

The engine stop and start ECU determines the amount of power available based on the integrated current value, and it prohibits stop and start control if the value is below the threshold, because the battery might not be able to start the engine.



Integrated Current Condition 1:

When "Status of Battery Charge Control" is Charge Control Coordination Mode, Stop and Start Standalone Mode, Low Temperature Mode or Temperature High/Low Mode:

A350035E46
0.052,0.052 3.813,0.313 3.76,0.26 12 false Stop and Start System Operation (for Condition 1): 1.771,1.115 2.344,1.333 0.573,0.219 10 false Driving 4.656,1.125 5.229,1.344 0.573,0.219 10 false Driving 1.146,1.615 1.458,1.813 0.313,0.198 10 false ON 1.146,1.885 1.604,2.083 0.458,0.198 10 false OFF 0.115,1.417 1.302,1.635 1.188,0.219 10 false Ignition Switch 4.333,2 4.802,2.406 0.469,0.406 10 false Engine Stop 5.896,1.99 6.365,2.396 0.469,0.406 10 false Engine Stop 5.01,1.979 5.479,2.385 0.469,0.406 10 false Engine Stop 0.094,2.646 1.208,3.094 1.115,0.448 10 false Integrated Current (A-sec) 1.292,2.885 1.448,3.083 0.156,0.198 10 false 0 0.969,3.302 1.469,3.5 0.5,0.198 10 false -17971 0.969,3.594 1.885,3.792 0.917,0.198 10 false -19123 3,4.031 3.156,4.229 0.156,0.198 10 false A 4.26,4.01 4.417,4.208 0.156,0.198 10 false B 5.51,4.031 5.667,4.229 0.156,0.198 10 false C 6.375,4.021 6.531,4.219 0.156,0.198 10 false D

Stop and Start System Operation (for Condition 1)

Phase A (previous trip integrated current storage):

When the ignition switch is turned off, the integrated current value is recorded in the ECU memory. The value is carried over to the next trip.

Phase B (stop and start control permitted):

Stop and start control is permitted to stop the engine until the integrated current reaches -19123 A-sec or less.

Phase C (charging):

When the integrated current has dropped to -19123 A-sec or less, stop and start control is prohibited from stopping the engine until the current reaches -17971 A-sec.

Phase D (stop and start control permitted):

Stop and start control is permitted to stop the engine until the integrated current reaches -19123 A-sec or less.



Integrated Current Condition 2:

When "Status of Battery Charge Control" is Stop and Start Restriction Mode:

A350036E32
0.042,0.052 3.938,0.344 3.896,0.292 12 false Stop and Start System Operation (for Condition 2): 1.833,1.031 2.906,1.229 1.073,0.198 10 false Driving 4.781,1.01 5.854,1.208 1.073,0.198 10 false Driving 1.156,1.615 1.469,1.813 0.313,0.198 10 false ON 1.156,1.885 1.615,2.083 0.458,0.198 10 false OFF 0.167,1.427 2.458,1.625 2.292,0.198 10 false Ignition Switch 5.563,2.125 6.406,2.344 0.844,0.219 10 false Engine Stop 0.135,2.448 1.26,2.823 1.125,0.375 10 false Integrated Current (A-sec) 1.302,2.885 1.458,3.083 0.156,0.198 10 false 0 1.042,3.167 1.833,3.365 0.792,0.198 10 false -1152 2.99,4.052 3.146,4.25 0.156,0.198 10 false A 4.563,4.052 4.719,4.25 0.156,0.198 10 false B 6.396,4.063 6.552,4.26 0.156,0.198 10 false C 6.885,4.052 7.042,4.25 0.156,0.198 10 false D

Stop and Start System Operation (for Condition 2)

Phase A (previous trip integrated current storage):

When the ignition switch is turned off, the integrated current value is recorded in the ECU memory. The value is carried over to the next trip.

Phase B (stop and start control permitted):

Stop and start control is permitted to stop the engine until the integrated current reaches -1152 A-sec or less.

Phase C (charging):

When the integrated current has dropped to -1152 A-sec or less, stop and start control is prohibited from stopping the engine until the current reaches 0 A-sec.

Phase D (stop and start control permitted):

Stop and start control is permitted to stop the engine until the integrated current reaches -1152 A-sec or less.



HINT:
·

Performance (internal resistance) of lead-acid batteries used in typical vehicles changes according to the battery fluid temperature. The internal resistance of the battery tends to be higher when the battery fluid temperature is low. Thus, the stop and start system switches the threshold of charging value according to the battery fluid temperature when performing stop and start control.

·

If the battery is deteriorated, the internal resistance has also increased and the stop and start rate becomes lower. (The total of idling time while the vehicle is stopped increases.)

·

When troubleshooting, if the malfunction cannot be identified, the battery might be deteriorated.



ACTIVE TEST


HINT:

Using the GTS to perform Active Tests allows relays, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.


a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Stop and Start / Active Test.


e.

Perform the Active Test by referring to the table below.



HINT:

Even if stop and start control is prohibited due to the condition of any of the systems listed above, performing the Active Tests allows stop and start control to be performed.


Powertrain > Stop and Start > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Stop&Start Buzzer Buzzer activation ON / OFF -
Stop&Start Permit Cond (Engine) When stop by stop and start control is prohibited, prohibition of control based on the ECD system conditions can be disabled/enabled. ON / OFF -
Stop&Start Permit Cond (Battery) When stop by stop and start control is prohibited, prohibition of control based on the battery conditions can be disabled/enabled. ON / OFF -
Stop&Start Permit Cond (ABS) When engine stop by stop and start control is prohibited, prohibition of control based on the brake system condition can be disabled/enabled. ON / OFF -
Stop&Start Permit Cond (A/C) When stop by stop and start control is prohibited, prohibition of control based on the air conditioning conditions can be disabled/enabled. ON / OFF -
Stop&Start Precondition2 (Control) Stop and start control can be permitted/prohibited based on precondition 2 ON / OFF Condition of permission or prohibition for terms listed below.
(Idling, Road Surface Gradient, No Shift Operation, Brake Negative Pressure, Steering, Electromagnetic Oil Pump, Starter Check Complete)
Electromagnetic Oil Pump Operates the electromagnetic oil pump ON / OFF Perform this test when the following conditions are met:
·

Ignition switch is ON

·

Engine is stopped


Starter(Hood Close) Starter activation ON / OFF Perform this test when the following conditions are met:
·

Engine is stopped

·

Stop and start control is not operating

·

Engine hood is closed

·

for Automatic Transmission:

Shift lever in P

·

for Manual Transmission:

Shift lever in neutral


NOTICE:
·

Do not perform Active Test for more than 3 seconds

·

Wait 5 seconds before performing Active Test again



Pinion Gear Plunger(Hood Close) Starter pinion gear can be moved inward/outward ON / OFF Perform this test when the following conditions are met:
·

Engine is stopped

·

Stop and start control is not operating

·

Engine hood is closed

·

for Automatic Transmission:

Shift lever in P

·

for Manual Transmission:

Shift lever in neutral


NOTICE:
·

Do not perform Active Test for more than 3 seconds

·

Wait 5 seconds before performing Active Test again



Starter Motor Drive Magnet Switch(Hood Close) Starter motor can be turned on/off ON / OFF Perform this test when the following conditions are met:
·

Engine is stopped

·

Stop and start control is not operating

·

Engine hood is closed

·

for Automatic Transmission:

Shift lever in P

·

for Manual Transmission:

Shift lever in neutral


NOTICE:
·

Do not perform Active Test for more than 3 seconds

·

Wait 5 seconds before performing Active Test again
