DOOR / HATCH  SLIDE DOOR CLOSER SYSTEM  PARTS LOCATION

ILLUSTRATION

3.75,3.396 2.385,0.354 2.385,0.354 2.198,0.354 true 5.021,4.115 5.708,5.406 5.708,5.406 5.906,5.406 true 4.427,4.198 5.156,1 5.156,1 5.333,1 true 3.198,3.5 2.146,1.188 2.146,1.188 1.969,1.188 true 4.302,6.792 4.094,6.792 4.094,6.792 3.021,4.344 true 5.104,6.073 4.927,6.073 4.927,6.073 4.333,4.875 true 1.729,0.271 2.448,0.51 0.719,0.24 10 false *1 (*B) 5.99,5.313 6.708,5.552 0.719,0.24 10 false *2 (*C) 1.521,1.104 2.24,1.344 0.719,0.24 10 false *3 (*B) 5.406,0.927 6.125,1.167 0.719,0.24 10 false *4 (*C) 4.385,6.719 5.104,6.958 0.719,0.24 10 false *5 (*B) 5.188,6 5.906,6.24 0.719,0.24 10 false *6 (*C) 0.198,0.156 0.917,0.396 0.719,0.24 12 false *A

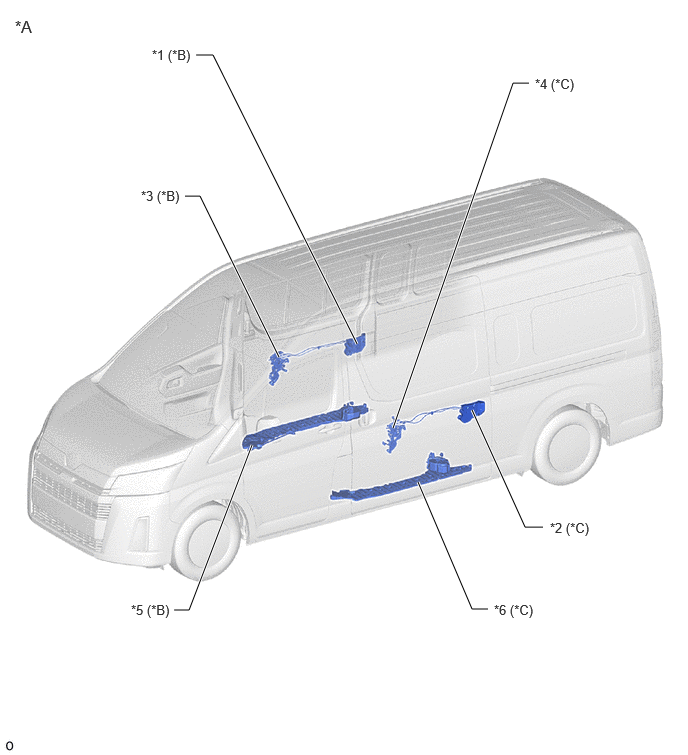

*A	for Standard Roof	*B	w/ Power Slide Door RH
*C	w/ Power Slide Door LH	-	-
*1	POWER SLIDE DOOR LOCK ASSEMBLY RH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH - PAWL SWITCH	*2	POWER SLIDE DOOR LOCK ASSEMBLY LH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH - PAWL SWITCH
*3	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY RH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH	*4	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY LH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH
*5	SLIDE DOOR MOTOR UNIT RH - SLIDE DOOR ECU RH	*6	SLIDE DOOR MOTOR UNIT LH - SLIDE DOOR ECU LH

ILLUSTRATION

3.719,3.583 2.219,0.573 2.219,0.573 2.042,0.573 true 2.906,3.719 2.083,2.042 2.083,2.042 1.927,2.042 true 1.813,6.354 1.969,6.354 1.969,6.354 2.625,4.635 true 4.094,4.458 5.344,0.865 5.344,0.865 5.51,0.865 true 4.917,4.271 5.469,5.49 5.469,5.49 5.656,5.49 true 5.083,6.344 4.917,6.344 4.917,6.344 4.354,5.021 true 0.156,0.177 0.542,0.438 0.385,0.26 12 false *A 1.583,0.49 2.104,0.708 0.521,0.219 10 false *1 (*B) 5.729,5.417 6.344,5.656 0.615,0.24 10 false *2 (*C) 1.469,1.958 2.01,2.177 0.542,0.219 10 false *3 (*B) 5.573,0.792 6.208,1.031 0.635,0.24 10 false *4 (*C) 1.365,6.271 1.927,6.521 0.563,0.25 10 false *5 (*B) 5.146,6.271 5.771,6.51 0.625,0.24 10 false *6 (*C)

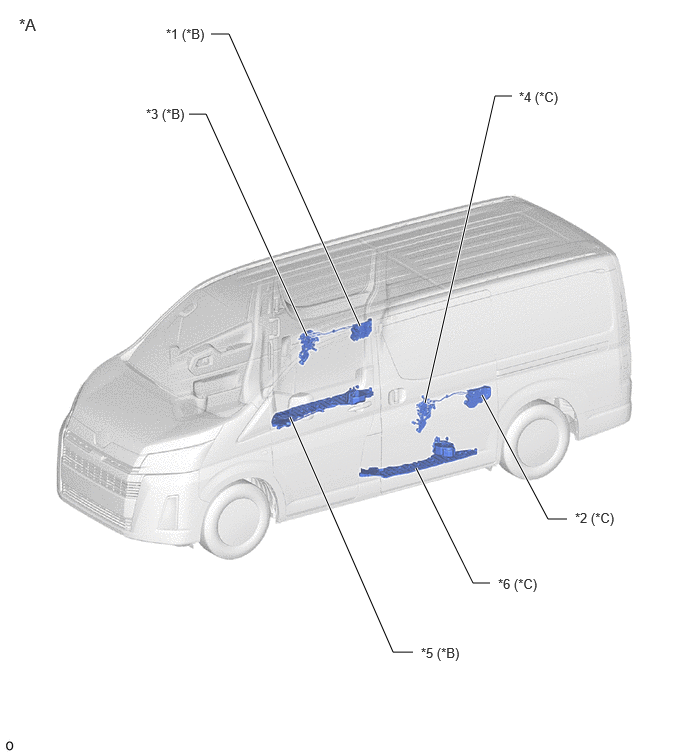

*A	for High Roof	*B	w/ Power Slide Door RH
*C	w/ Power Slide Door LH	-	-
*1	POWER SLIDE DOOR LOCK ASSEMBLY RH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH - PAWL SWITCH	*2	POWER SLIDE DOOR LOCK ASSEMBLY LH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH - PAWL SWITCH
*3	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY RH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH	*4	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY LH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH
*5	SLIDE DOOR MOTOR UNIT RH - SLIDE DOOR ECU RH	*6	SLIDE DOOR MOTOR UNIT LH - SLIDE DOOR ECU LH

ILLUSTRATION

3.823,3.406 3.417,1.375 3.417,1.375 3.125,1.375 true 3.198,3.479 2.375,2.042 2.375,2.042 2.083,2.042 true 3.958,6.292 3.708,6.292 3.708,6.292 3.073,4.344 true 0.688,3.823 3.594,3.823 true 5.604,6.427 5.281,6.427 5.281,6.427 4.417,4.854 true 6.219,5.458 5.958,5.458 5.958,5.458 4.823,4.49 true 4.427,4.188 4.604,0.875 4.604,0.875 4.885,0.875 true 5.01,4.083 5.74,1.635 5.74,1.635 6.021,1.635 true 0.188,0.135 0.5,0.333 0.313,0.198 12 false *A 2.625,1.281 3.271,1.49 0.646,0.208 10 false *1 (*B) 6.094,1.552 6.74,1.76 0.646,0.208 10 false *2 (*B) 1.875,1.958 2.521,2.167 0.646,0.208 10 false *3 4.958,0.813 5.604,1.021 0.646,0.208 10 false *4 4.021,6.24 4.667,6.448 0.646,0.208 10 false *5 (*B) 5.677,6.344 6.323,6.552 0.646,0.208 10 false *6 (*B) 0.208,3.719 0.854,3.927 0.646,0.208 10 false *7 (*C) 6.271,5.406 6.917,5.615 0.646,0.208 10 false *8 (*C)

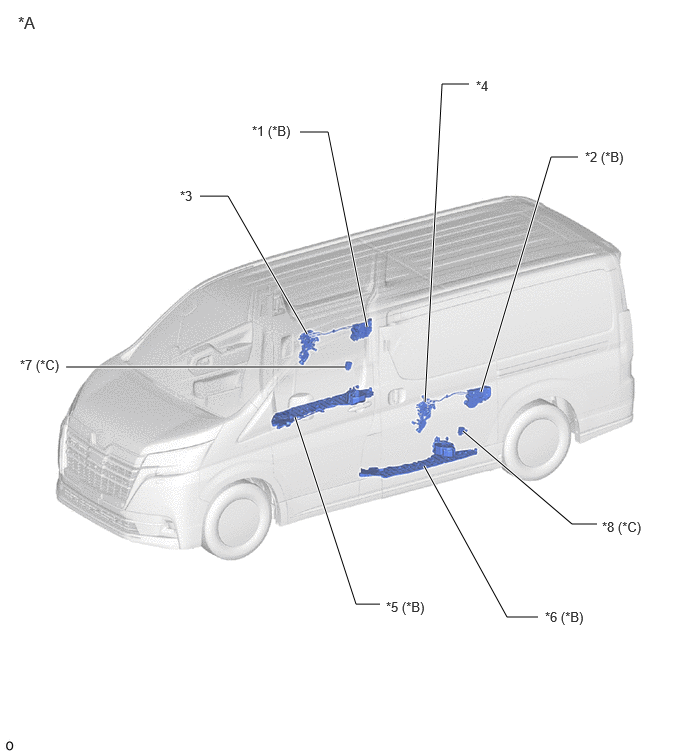

*A	for Wagon	*B	w/ Power Slide Door System
*C	w/o Power Slide Door System	-	-
*1	POWER SLIDE DOOR LOCK ASSEMBLY RH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH (w/ Power Slide Door System) - PAWL SWITCH	*2	POWER SLIDE DOOR LOCK ASSEMBLY LH - CLOSER MOTOR - HALF-LATCH SWITCH - FULL-LATCH SWITCH - NEUTRAL POSITION CLOSE SWITCH - NEUTRAL POSITION RELEASE SWITCH (w/ Power Slide Door System) - PAWL SWITCH
*3	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY RH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH	*4	SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY LH - OPEN SWITCH (for Inside Handle) - OPEN SWITCH (for Outside Handle) - CLOSE SWITCH
*5	SLIDE DOOR MOTOR UNIT RH - SLIDE DOOR ECU RH	*6	SLIDE DOOR MOTOR UNIT LH - SLIDE DOOR ECU LH
*7	SLIDE DOOR CLOSER RELAY RH	*8	SLIDE DOOR CLOSER RELAY LH

ILLUSTRATION

1.229,3.813 1.427,3.813 1.427,3.813 1.615,3.49 true 1.052,2.479 1.281,2.479 1.281,2.479 1.5,2.833 true 6.031,6.385 5.865,6.385 5.865,6.385 5.667,5.979 true 1.167,6.083 1.333,6.083 1.333,6.083 1.573,6.49 true 0.135,0.396 0.563,0.698 0.427,0.302 12 false *A 0.229,4.625 0.625,4.969 0.396,0.344 12 false *B 0.896,2.396 1.208,2.552 0.313,0.156 10 false *1 6.073,6.302 6.385,6.458 0.313,0.156 10 false *2 1,6.021 1.313,6.177 0.313,0.156 10 false *1 1.063,3.74 1.375,3.896 0.313,0.156 10 false *2

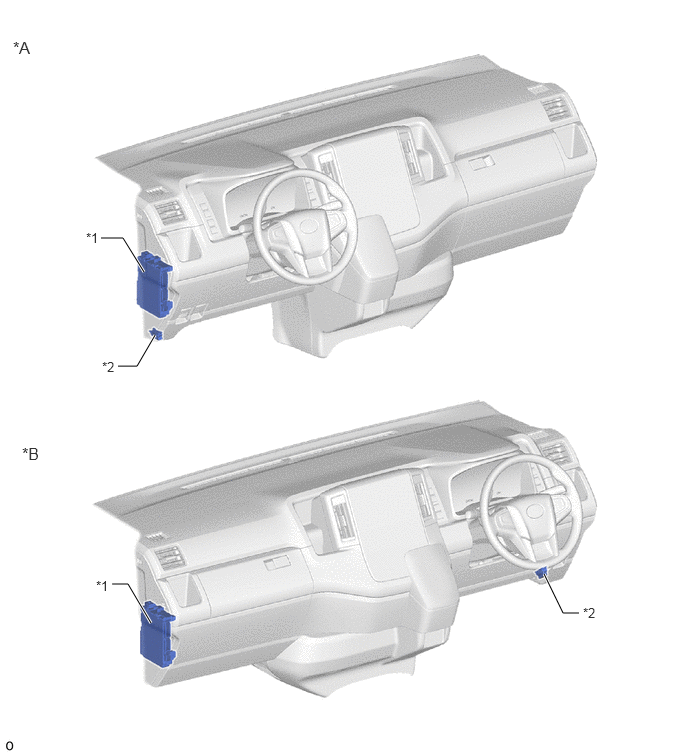

*A	for LHD	*B	for RHD
*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO.1 FUSE - PSD RH FUSE (w/ Power Slide Door LH) - BD CLS FUSE (w/ Power Slide Door RH)	*2	DLC3
