RM35X0E _58 Vehicle Interior _079317 POWER OUTLETS (INT) _0396521 POWER OUTLET SOCKET(for Console Box) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Console Box) REMOVAL

PROCEDURE

Hide Display 58903E 1.REMOVE NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY

Hide Display 85532 2.REMOVE USB CHARGER SOCKET

0,0 0,0 false

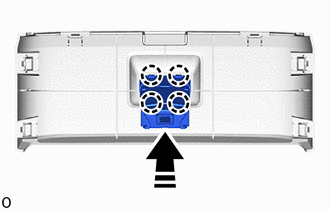

Remove in this Direction

Detach the claw and remove the USB charger socket as shown in the illustration.
