RM35X0E _59 Vehicle Exterior _079321 HORN _0385005 HORN A

HORN  HORN  INSTALLATION


PROCEDURE

Hide 86520 1.INSTALL LOW PITCHED HORN ASSEMBLY

a.

except Wagon:

i.
B533101C01

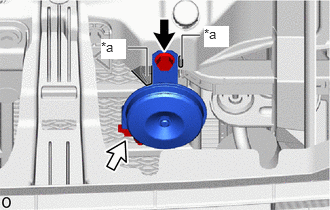

1.531,0.792 1.531,0.5 1.531,0.5 1.333,0.5 true 1.896,0.615 1.896,0.365 1.896,0.365 2.083,0.365 true 1.052,0.406 1.313,0.615 0.26,0.208 10 true *a 2.125,0.271 2.385,0.49 0.26,0.219 10 true *a
*a Location
V100135

Bolt
V100136

Connector


Connect the connector.


ii.

Align the stay of the low pitched horn assembly with the location on the body side.

NOTICE:

Do not allow the stay of the low pitched horn assembly to overlap the location.



iii.

Install the low pitched horn assembly with the bolt.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)



b.

for Wagon:

i.
B545055C01

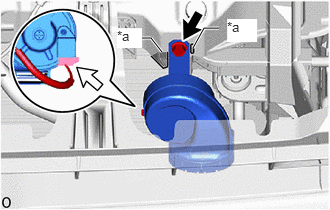

1.688,0.542 1.573,0.396 1.573,0.396 1.458,0.396 true 2.01,0.5 2.125,0.292 2.125,0.292 2.281,0.292 true 1.219,0.292 1.479,0.5 0.26,0.208 10 true *a 2.365,0.198 2.677,0.438 0.313,0.24 10 true *a
*a Location
V100135

Bolt
V100136

Connector


Connect the connector.


ii.

Align the stay of the low pitched horn assembly with the location on the body side.

NOTICE:

Do not allow the stay of the low pitched horn assembly to overlap the location.



iii.

Install the low pitched horn assembly with the bolt.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)



Hide 86510 2.INSTALL HIGH PITCHED HORN ASSEMBLY

a.

except Wagon, 2-piece Type:

i.
B533100C01

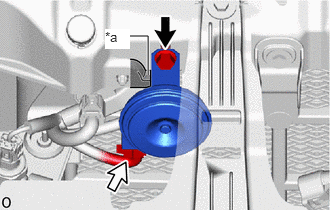

1.542,0.781 1.542,0.375 1.542,0.375 1.344,0.375 true 1.094,0.302 1.354,0.51 0.26,0.208 10 true *a
*a Location
V100135

Bolt
V100136

Connector


Connect the connector.


ii.

Align the stay of the high pitched horn assembly with the location on the body side.


iii.

Install the high pitched horn assembly with the bolt.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)



b.

for Wagon:

i.
B545056C01

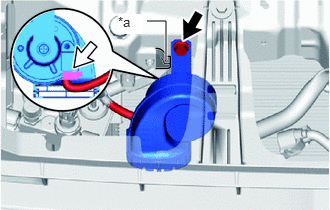

1.729,0.625 1.729,0.219 1.729,0.219 1.531,0.219 true 1.229,0.146 1.49,0.354 0.26,0.208 10 true *a
*a Location
V100135

Bolt
V100136

Connector


Connect the connector.


ii.

Align the stay of the high pitched horn assembly with the location on the body side.


iii.

Install the high pitched horn assembly with the bolt.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)
