HORN HORN INSPECTION

PROCEDURE

Hide Display 86510 1.INSPECT HIGH PITCHED HORN ASSEMBLY

except Wagon, 2-piece Type:

0.094,0.073 0.458,0.417 0.365,0.344 10 false *a

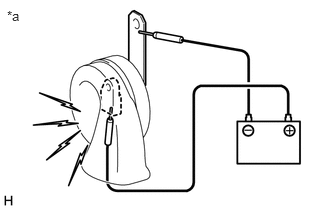

*a	Component without harness connected (High Pitched Horn Assembly)

Apply battery voltage and check the operation of the high pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Body ground	High pitched horn sounds

If the result is not as specified, replace the high pitched horn assembly.

for Wagon:

0.073,0.073 0.385,0.229 0.313,0.156 10 *a

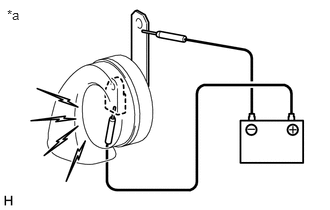

*a	Component without harness connected (High Pitched Horn Assembly)

Apply battery voltage and check operation of the high pitched horn according to the table below.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Body ground	High pitched horn sounds

If the result is not as specified, replace the high pitched horn assembly.

Hide Display 86520 2.INSPECT LOW PITCHED HORN ASSEMBLY

except Wagon:

0.094,0.094 0.458,0.438 0.365,0.344 10 false *a

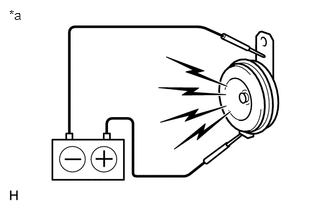

*a	Component without harness connected (Low Pitched Horn Assembly)

Apply battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Body ground	Low pitched horn sounds

If the result is not as specified, replace the low pitched horn assembly.

for Wagon:

0.073,0.083 0.385,0.24 0.313,0.156 10 *a

*a	Component without harness connected (Low Pitched Horn Assembly)

Apply battery voltage and check operation of the low pitched horn according to the table below.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Body ground	Low pitched horn sounds

If the result is not as specified, replace the low pitched horn assembly.
