RM35X0E _59 Vehicle Exterior _079321 HORN _0385005 HORN A

HORN  HORN  REMOVAL


PROCEDURE

Hide 86510 2.REMOVE HIGH PITCHED HORN ASSEMBLY

a.

except Wagon, 2-piece Type:

i.

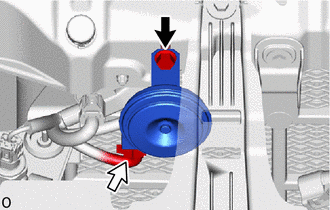

B533032C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Remove the bolt.


ii.

Disconnect the connector to remove the high pitched horn assembly.



b.

for Wagon:

i.

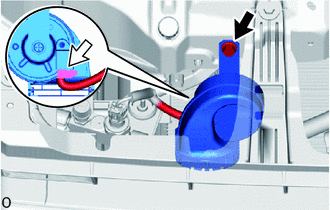

B545053C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Remove the bolt.


ii.

Disconnect the connector to remove the high pitched horn assembly.



Hide 86520 3.REMOVE LOW PITCHED HORN ASSEMBLY

a.

except Wagon:

i.

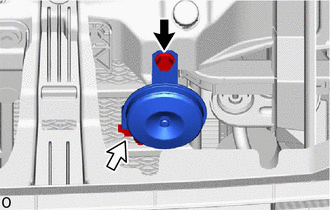

B533031C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Remove the bolt.


ii.

Disconnect the connector to remove the low pitched horn assembly.



b.

for Wagon:

i.

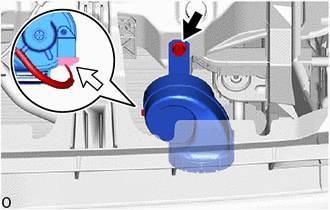

B545054C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Remove the bolt.


ii.

Disconnect the connector to remove the low pitched horn assembly.
