RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384879 FRONT BLOWER MOTOR A

HEATING / AIR CONDITIONING  FRONT BLOWER MOTOR  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 87103B 1.INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY

a.

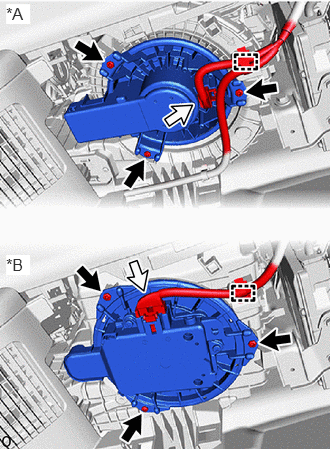

E400969C01
0.063,0.042 0.313,0.25 0.25,0.208 12 true *A 0.063,2.656 0.313,2.865 0.25,0.208 12 true *B
*A except Automatic Air Conditioning System
*B for Automatic Air Conditioning System
V100135

Screw
V100136

Connector


for LHD:

i.

Install the blower with fan motor sub-assembly with the 3 screws.


ii.

Connect the connector.


iii.

Attach the clamp.



b.

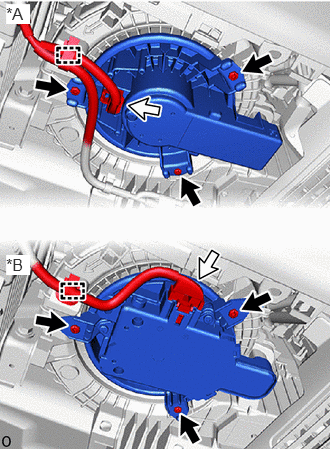

E421719C01
0.063,0.042 0.313,0.25 0.25,0.208 12 true *A 0.063,2.656 0.313,2.865 0.25,0.208 12 true *B
*A except Automatic Air Conditioning System
*B for Automatic Air Conditioning System
V100135

Screw
V100136

Connector


for RHD:

i.

Install the blower with fan motor sub-assembly with the 3 screws.


ii.

Connect the connector.


iii.

Attach the clamp.
