RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384878 BLOWER UNIT A

HEATING / AIR CONDITIONING  BLOWER UNIT  DISASSEMBLY


PROCEDURE

Hide 88899M 1.REMOVE AIR FILTER COVER PLATE

a.

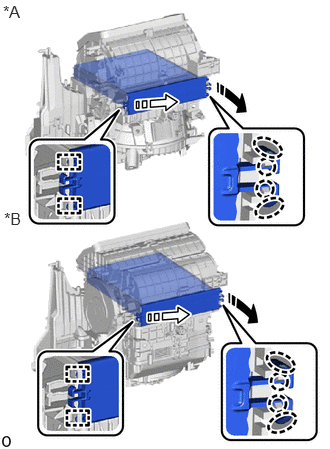

E400952C01
0.042,2.177 0.417,2.417 0.375,0.24 12 false *B 0.031,0.021 0.406,0.26 0.375,0.24 12 false *A
*A Single Layer Blower Type
*B Two Layer Blower Type
V113146

Pinch
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


for LHD:

i.

Lightly pinch the area shown in the illustration and rotate the claw in the direction indicated by the arrow shown in the illustration to detach it.


ii.

Pull in the removal direction shown in the illustration to detach the guide and remove the air filter cover plate.



b.

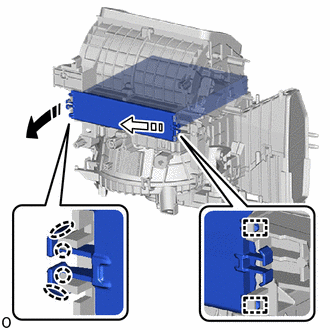

E415222C01
0,0 0,0 false
V113146

Pinch
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


for RHD:

i.

Lightly pinch the area shown in the illustration and rotate the claw in the direction indicated by the arrow shown in the illustration to detach it.


ii.

Pull in the removal direction shown in the illustration to detach the guide and remove the air filter cover plate.



Hide 88548B 2.REMOVE AIR FILTER CASE

a.

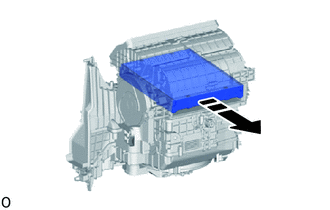

E416488C01
0,0 0,0 false
V113147

Remove in this Direction


for LHD, Two Layer Blower Type:

i.

Remove the air filter case.



Hide 87139C 3.REMOVE CLEAN AIR FILTER

a.

for LHD, Two Layer Blower Type:

i.
E396103

Detach the guide and remove the clean air filter.



b.

for LHD, Single Layer Blower Type:

i.

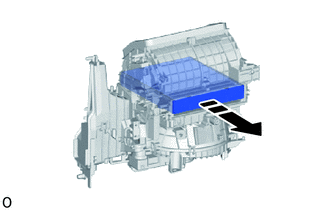

E400953C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clean air filter.



c.

for RHD:

i.

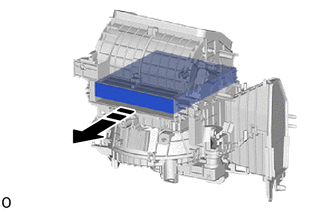

E415223C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clean air filter.



Hide 87103B 4.REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

a.

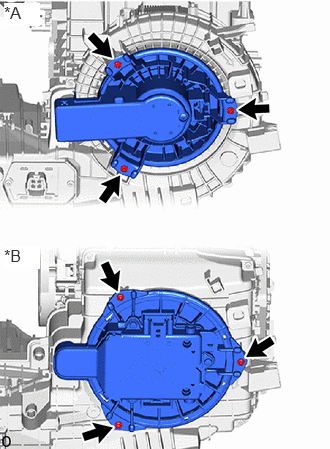

E400954C01
0.042,0.031 0.417,0.271 0.375,0.24 12 true *A 0.042,2.563 0.417,2.802 0.375,0.24 12 true *B
*A except Automatic Air Conditioning System
*B Automatic Air Conditioning System


for LHD:

i.

Remove the 3 screws and blower with fan motor sub-assembly.



b.

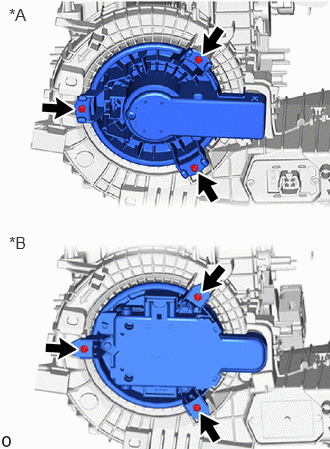

E421477C01
0.094,0.052 0.469,0.292 0.375,0.24 12 false *A 0.094,2.427 0.469,2.667 0.375,0.24 12 false *B
*A except Automatic Air Conditioning System
*B Automatic Air Conditioning System


for RHD:

i.

Remove the 3 screws and blower with fan motor sub-assembly.



Hide 5.REMOVE BLOWER RESISTOR (except Automatic Air Conditioning System)

a.

for LHD:

i.
E400955

Remove the 2 screws and blower resistor.



b.

for RHD:

i.
E415225

Remove the 2 screws and blower resistor.



Hide 87130K 6.REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY (for LHD)

a.

for Automatic Air Conditioning System:

i.
E400957

Remove the 2 screws.


ii.

Detach the guide and remove the No. 1 blower damper servo sub-assembly.



b.

except Automatic Air Conditioning System:

i.
E400956

Remove the 2 screws.


ii.

Detach the guide and remove the No. 1 blower damper servo sub-assembly.



Hide 87130K 7.REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY (for RHD)

a.

for Automatic Air Conditioning System:

i.
E421478

Remove the 2 screws.


ii.

Detach the guide and remove the No. 1 blower damper servo sub-assembly.



b.
E415226

except Automatic Air Conditioning System:

i.

Remove the 2 screws.


ii.

Detach the guide and remove the No. 1 blower damper servo sub-assembly.
