RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0396516 ION GENERATOR(for Front) A

HEATING / AIR CONDITIONING  ION GENERATOR(for Front)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 88051B 1.INSTALL NO. 1 ION GENERATOR SUB-ASSEMBLY

a.

for LHD:

i.

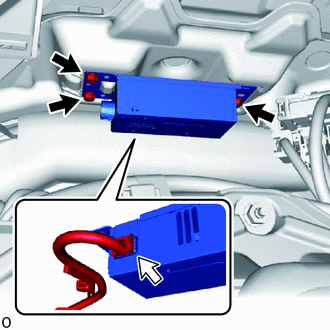

E421496C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Install the No. 1 ion generator sub-assembly with the 3 screws.


ii.

Connect the connector.


iii.

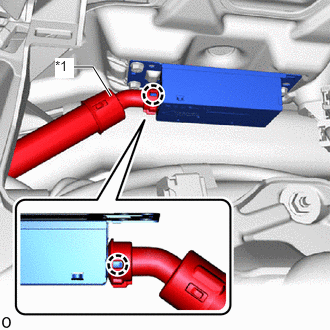

E421495C01
1.156,1 0.969,0.698 0.969,0.698 0.729,0.698 true 0.573,0.604 0.771,0.813 0.198,0.208 10 true *1
*1 Air Duct Sub-assembly


Attach the claw and install the air duct sub-assembly to the No. 1 ion generator sub-assembly.



b.

for RHD:

i.

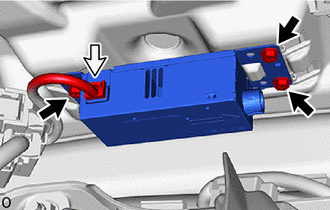

E421551C01
0,0 0,0 false
V100135

Screw
V100136

Connector


Install the No. 1 ion generator sub-assembly with the 3 screws.


ii.

Connect the connector.


iii.

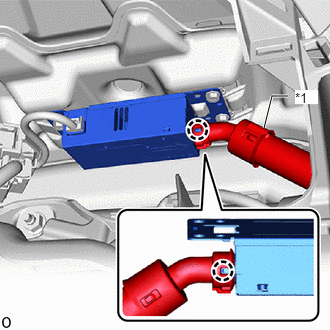

E421550C02
2.75,1.333 2.833,1 2.833,1 3,1 true 3.073,0.938 3.313,1.083 0.24,0.146 10 true *1
*1 Air Duct Sub-assembly


Attach the claw and install the air duct sub-assembly to the No. 1 ion generator sub-assembly.
