HEATING / AIR CONDITIONING  REAR EVAPORATOR TEMPERATURE SENSOR(for Rear Air Conditioning System)  INSPECTION


PROCEDURE

Hide 88605C 1.INSPECT NO. 2 AIR CONDITIONING HARNESS ASSEMBLY (REAR EVAPORATOR TEMPERATURE SENSOR)

a.

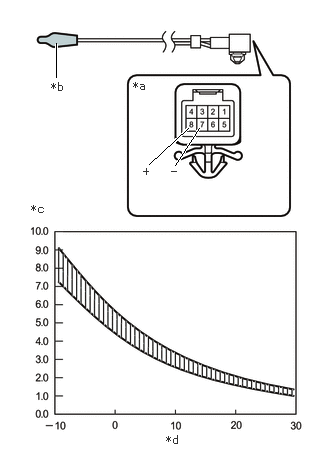

E430932C01
0.583,0.802 0.583,0.448 true 1.552,1.708 1.958,1.333 true 1.823,1.719 2.073,1.333 true 0.531,0.833 0.844,0.99 0.313,0.156 10 false *b 1.385,0.823 1.698,0.979 0.313,0.156 10 false *a 0.323,2.104 0.635,2.26 0.313,0.156 10 false *c 1.729,4.51 2.042,4.667 0.313,0.156 10 false *d 1.49,1.719 1.646,1.917 0.156,0.198 10 false + 1.781,1.719 1.938,1.917 0.156,0.198 10 false -
*a Component without harness connected
(No. 2 Air Conditioning Harness Assembly (Rear Evaporator Temperature Sensor))
*b Sensing Portion
*c Resistance (kΩ)
*d Temperature (°C (°F))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7(-) - 8(+) -10°C (14°F) 7.40 to 9.20 kΩ
-5°C (23°F) 5.65 to 7.00 kΩ
0°C (32°F) 4.35 to 5.40 kΩ
5°C (41°F) 3.40 to 4.20 kΩ
10°C (50°F) 2.68 to 3.30 kΩ
15°C (59°F) 2.10 to 2.60 kΩ
20°C (68°F) 1.66 to 2.10 kΩ
25°C (77°F) 1.32 to 1.66 kΩ
30°C (86°F) 1.05 to 1.35 kΩ


NOTICE:
·

Hold the sensor only by its connector. Touching the sensor may change the resistance value.

·

When measuring, the sensor temperature must be the same as the ambient temperature.



HINT:

As the temperature increases, the resistance decreases (See the graph).


If the result is not as specified, replace the No. 2 air conditioning harness assembly (rear evaporator temperature sensor).
