HEATING / AIR CONDITIONING  ROOM TEMPERATURE SENSOR(for Rear Side)  INSPECTION


PROCEDURE

Hide 88625C 1.INSPECT COOLER THERMISTOR

a.

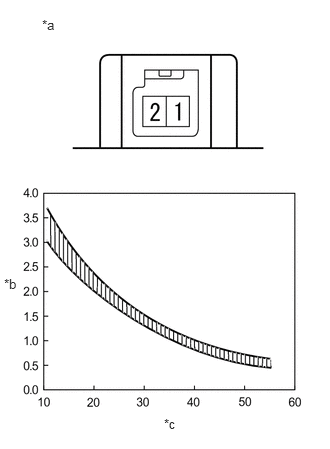

E292714C06
0.438,0.177 0.75,0.333 0.313,0.156 10 false *a 0.042,2.875 0.354,3.031 0.313,0.156 10 false *b 1.708,4.333 2.021,4.49 0.313,0.156 10 false *c
*a Component without harness connected
(Cooler Thermistor)
*b Resistance (kΩ)
*c Temperature (°C (°F))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 10°C (50°F) 3.00 to 3.73 kΩ
15°C (59°F) 2.45 to 2.88 kΩ
20°C (68°F) 1.95 to 2.30 kΩ
25°C (77°F) 1.60 to 1.80 kΩ
30°C (86°F) 1.28 to 1.47 kΩ
35°C (95°F) 1.00 to 1.22 kΩ
40°C (104°F) 0.80 to 1.00 kΩ
45°C (113°F) 0.65 to 0.85 kΩ
50°C (122°F) 0.50 to 0.70 kΩ
55°C (131°F) 0.44 to 0.60 kΩ
60°C (140°F) 0.36 to 0.50 kΩ


NOTICE:
·

Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.

·

When measuring, the sensor temperature must be the same as the ambient temperature.



HINT:

As the temperature increases, the resistance decreases (see the graph).


If the result is not as specified, replace the cooler thermistor.
