RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0396514 ROOM TEMPERATURE SENSOR(for Rear Side) A

HEATING / AIR CONDITIONING  ROOM TEMPERATURE SENSOR(for Rear Side)  REMOVAL


PROCEDURE

Hide 88625C 1.REMOVE COOLER THERMISTOR

a.

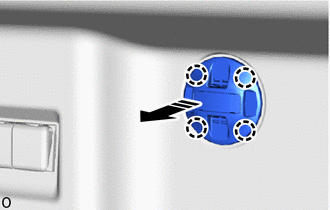

E421498C01
0,0 0,0 false
V113147

Remove in this Direction


Using a screwdriver, detach the claw and remove the cooler thermistor.

HINT:

Tape the screwdriver tip before use.



b.

Disconnect the connector.
