REAR BLOWER MOTOR(for Rear Air Conditioning System)
G
HEATING / AIR CONDITIONING REAR BLOWER MOTOR(for Rear Air Conditioning System) INSPECTION
PROCEDURE
87103D
1.INSPECT REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a.
1.813,1.771 2.24,0.833
true
1.677,1.771 1.167,0.833
true
0.104,0.073 0.417,0.271
0.313,0.198
10
false
*a
2.24,0.646 2.396,0.844
0.156,0.198
10
false
1
1.073,0.656 1.229,0.854
0.156,0.198
10
false
2

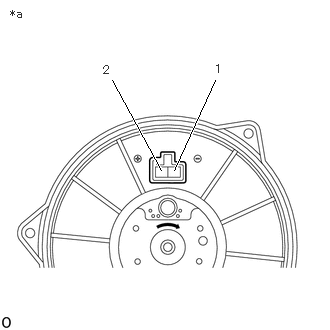

| *a | Component without harness connected
(Rear Blower with Fan Motor Sub-assembly) |
Check the motor operation.
i.
Apply the positive (+) lead of the battery to terminal 2 and the negative (-) lead to terminal 1.
- OK:
Measurement Condition Specified Condition Battery positive (+) → 2
Battery negative (-) → 1Rear blower with fan motor sub-assembly operates smoothly
If the result is not as specified, replace the rear blower with fan motor sub-assembly.
