LIGHTING (INT)  ILLUMINATION ECU(for Rear Side)  COMPONENTS

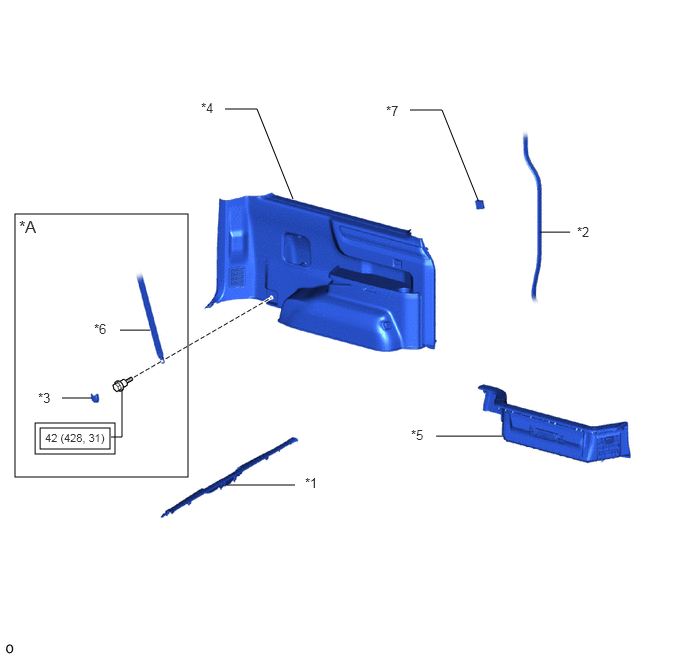

ILLUSTRATION

0.417,4.458 1.146,4.677 0.729,0.219 0.365,4.406 1.198,4.729 0.833,0.323 0.156,2.229 1.958,4.969 1.802,2.74 1.156,4.552 1.271,4.552 1.271,4.552 1.271,4.063 false 0.958,4.146 0.646,4.146 false 1.563,3.438 1.25,3.438 false 5.938,2.417 5.625,2.417 false 5.25,4.542 4.542,4.542 false 3.052,2.073 2.677,1.135 2.677,1.135 2.344,1.135 false 4.979,2.083 4.604,1.146 4.604,1.146 4.271,1.146 false 3.073,5.052 2.365,5.052 false 3.177,4.948 3.417,5.125 0.24,0.177 10 false *1 6.01,2.333 6.26,2.521 0.25,0.188 10 false *2 0.396,4.063 0.635,4.271 0.24,0.208 10 false *3 2.094,1.042 2.323,1.229 0.229,0.188 10 false *4 4.281,4.448 4.5,4.656 0.219,0.208 10 false *5 0.979,3.344 1.25,3.542 0.271,0.198 10 false *6 4.021,1.073 4.25,1.26 0.229,0.188 10 false *7 0.469,4.49 1.188,4.677 0.719,0.188 8 false 42 (428, 31) 0.198,2.26 0.458,2.469 0.26,0.208 12 false *A

*A	w/ Seat Belt	-	-
*1	BACK DOOR SCUFF PLATE	*2	NO. 1 SLIDE DOOR WEATHERSTRIP LH
*3	OUTER LAP BELT ANCHOR COVER	*4	QUARTER TRIM PANEL ASSEMBLY LH
*5	REAR DOOR SCUFF PLATE LH	*6	REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
*7	ROOM LIGHT CONTROL RELAY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
