RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396486 INTERIOR ILLUMINATION LIGHT(for Side Trim) G

LIGHTING (INT)  INTERIOR ILLUMINATION LIGHT(for Side Trim)  INSPECTION


PROCEDURE

Hide 81080M 1.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for RH Side)

a.

Check the illumination. (Blue illumination)

i.

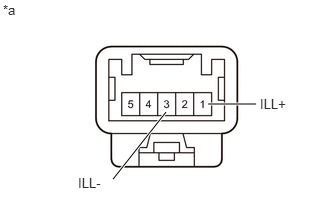

E417774C01
2.167,1.083 2.667,1.083 true 1.729,1.167 1.177,1.865 true 0.031,0.021 0.313,0.271 0.281,0.25 10 false *a 0.813,1.823 1.115,2.01 0.302,0.188 10 false ILL- 2.708,1 3.01,1.188 0.302,0.188 10 false ILL+
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 3 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



b.

Check the illumination. (White illumination)

i.

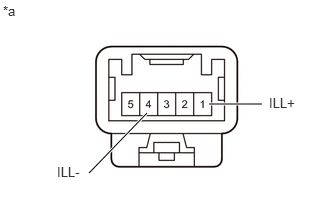

E417774C02
2.177,1.083 2.729,1.083 true 1.531,1.177 0.927,1.802 true 0.594,1.708 0.917,1.875 0.323,0.167 10 false ILL- 2.802,0.99 3.156,1.156 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 4 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



c.

Check the illumination. (Amber illumination)

i.
E417774C03
2.188,1.094 2.75,1.094 true 0.719,1.083 1.281,1.083 true 0.031,0.031 0.25,0.219 0.219,0.188 10 false *a 0.417,1.01 0.698,1.198 0.281,0.188 10 false ILL- 2.802,1.01 3.125,1.198 0.323,0.188 10 false ILL+
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 5 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



Hide 81080V 2.INSPECT NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for LH Side)

a.

Check the illumination. (Blue illumination)

i.
E417774C01
2.167,1.083 2.667,1.083 true 1.729,1.167 1.177,1.865 true 0.031,0.021 0.313,0.271 0.281,0.25 10 false *a 0.813,1.823 1.115,2.01 0.302,0.188 10 false ILL- 2.708,1 3.01,1.188 0.302,0.188 10 false ILL+
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 3 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.



b.

Check the illumination. (White illumination)

i.
E417774C02
2.177,1.083 2.729,1.083 true 1.531,1.177 0.927,1.802 true 0.594,1.708 0.917,1.875 0.323,0.167 10 false ILL- 2.802,0.99 3.156,1.156 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 4 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.



c.

Check the illumination. (Amber illumination)

i.
E417774C03
2.188,1.094 2.75,1.094 true 0.719,1.083 1.281,1.083 true 0.031,0.031 0.25,0.219 0.219,0.188 10 false *a 0.417,1.01 0.698,1.198 0.281,0.188 10 false ILL- 2.802,1.01 3.125,1.198 0.323,0.188 10 false ILL+
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 5 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.
