RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396485 INTERIOR ILLUMINATION LIGHT(for Rear Door) G

LIGHTING (INT)  INTERIOR ILLUMINATION LIGHT(for Rear Door)  INSPECTION


PROCEDURE

Hide 81080J 1.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for RH Side)

a.

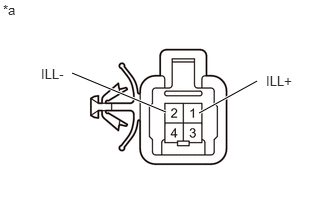

Check the illumination. (Blue illumination)

i.
E417773C01
2.073,1.177 2.677,0.844 true 1.729,1.167 0.75,0.76 true 0.031,0.021 0.313,0.271 0.281,0.25 10 false *a 0.427,0.688 0.729,0.875 0.302,0.188 10 false ILL- 2.771,0.76 3.073,0.948 0.302,0.188 10 false ILL+
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 2 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



b.

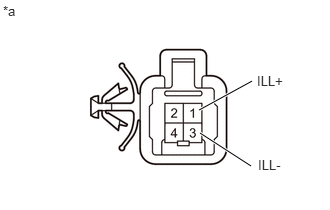

Check the illumination. (White illumination)

i.
E417773C02
2.073,1.146 2.625,0.844 true 2.083,1.385 2.615,1.729 true 2.688,1.635 3.042,1.802 0.354,0.167 10 false ILL- 2.677,0.76 3.031,0.927 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 3 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



c.

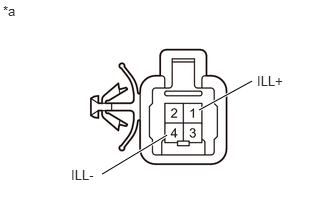

Check the illumination. (Amber illumination)

i.
E417773C03
2.073,1.146 2.625,0.844 true 1.74,1.406 1.063,1.813 true 0.74,1.74 1.042,1.906 0.302,0.167 10 false ILL- 2.677,0.76 3.031,0.927 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 1 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 4 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 1 interior illumination light assembly.



Hide 81090 2.INSPECT NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for LH Side)

a.

Check the illumination. (Blue illumination)

i.
E417773C01
2.073,1.177 2.677,0.844 true 1.729,1.167 0.75,0.76 true 0.031,0.021 0.313,0.271 0.281,0.25 10 false *a 0.427,0.688 0.729,0.875 0.302,0.188 10 false ILL- 2.771,0.76 3.073,0.948 0.302,0.188 10 false ILL+
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 2 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.



b.

Check the illumination. (White illumination)

i.
E417773C02
2.073,1.146 2.625,0.844 true 2.083,1.385 2.615,1.729 true 2.688,1.635 3.042,1.802 0.354,0.167 10 false ILL- 2.677,0.76 3.031,0.927 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 3 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.



c.

Check the illumination. (Amber illumination)

i.
E417773C03
2.073,1.146 2.625,0.844 true 1.74,1.406 1.063,1.813 true 0.74,1.74 1.042,1.906 0.302,0.167 10 false ILL- 2.677,0.76 3.031,0.927 0.354,0.167 10 false ILL+ 0.031,0.031 0.281,0.24 0.25,0.208 10 false *a
*a Component without harness connected
(No. 2 Interior Illumination Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (ILL+)
Battery negative (-) → 4 (ILL-) 		Illuminates


If the result is not as specified, replace the No. 2 interior illumination light assembly.
