LIGHTING (INT)  INTERIOR ILLUMINATION LIGHT(for Rear Door)  INSTALLATION

81090 1.INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

0.042,0.042 0.333,0.26 0.292,0.219 12 false *A 0.052,2.229 0.333,2.5 0.281,0.271 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Attach the guide and claw to install the No. 2 interior illumination light assembly for the slide door trim ornament LH.

b.

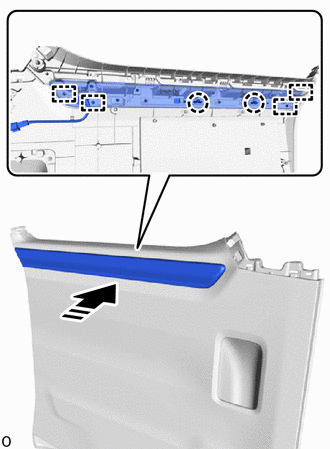

w/o Rear Sunshade:

i.

0,0 0,0 false

Install in this Direction

Attach the guide and claw to install the No. 2 interior illumination light assembly with slide door trim ornament LH as shown in the illustration.

c.

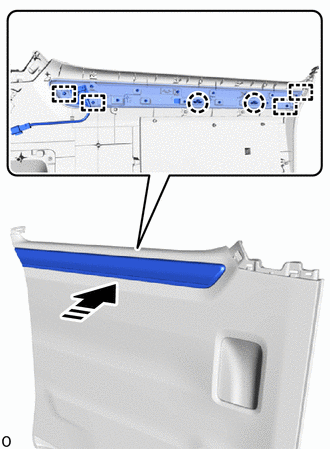

w/ Rear Sunshade:

i.

0,0 0,0 false

Install in this Direction

Attach the guide and claw to install the No. 2 interior illumination light assembly with slide door trim ornament LH as shown in the illustration.

d.

0.042,0.052 0.344,0.25 0.302,0.198 12 false *A 0.052,2.521 0.365,2.719 0.313,0.198 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Install the 16 screws.

e.

0.438,3.792 0.833,3.792 true 2.188,3.823 2.583,3.823 true 0.438,1.313 0.833,1.313 true 2.198,1.344 2.594,1.344 true 0.052,0.021 0.344,0.24 0.292,0.219 12 false *A 0.063,2.458 0.365,2.677 0.302,0.219 12 false *B 0.188,3.688 0.427,3.885 0.24,0.198 10 true *a 2.594,3.719 2.833,3.927 0.24,0.208 10 true *b 2.615,1.219 2.854,1.427 0.24,0.208 10 true *b 0.198,1.208 0.438,1.406 0.24,0.198 10 true *a

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade
*a	Clamp
*b	Guide

Attach the guide and clamp.

65908D 2.INSTALL REAR CURTAIN SUB-ASSEMBLY LH (w/ Rear Sunshade)

67690C 3.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY LH

81380H 4.INSTALL STEP LIGHT ASSEMBLY

67488A 5.INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH

67668A 6.INSTALL SLIDE DOOR WINDOW GARNISH LH

67693B 7.INSTALL SLIDE DOOR TRIM UPPER COVER LH

65988A 8.INSTALL SUNSHADE HOOK (w/ Rear Sunshade)
