LIGHTING (INT)  INTERIOR ILLUMINATION LIGHT(for Rear Door)  REMOVAL

65988A 1.REMOVE SUNSHADE HOOK (w/ Rear Sunshade)

67693B 2.REMOVE SLIDE DOOR TRIM UPPER COVER LH

67668A 3.REMOVE SLIDE DOOR WINDOW GARNISH LH

67488A 4.REMOVE REAR DOOR REAR GUIDE BRACKET GARNISH LH

81380H 5.REMOVE STEP LIGHT ASSEMBLY

67690C 6.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY LH

65908D 7.REMOVE REAR CURTAIN SUB-ASSEMBLY LH (w/ Rear Sunshade)

81090 8.REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

0.438,3.792 0.833,3.792 true 2.188,3.823 2.583,3.823 true 0.438,1.313 0.833,1.313 true 2.198,1.344 2.594,1.344 true 0.052,0.021 0.344,0.24 0.292,0.219 12 false *A 0.063,2.458 0.365,2.677 0.302,0.219 12 false *B 0.188,3.688 0.427,3.885 0.24,0.198 10 true *a 2.594,3.719 2.833,3.927 0.24,0.208 10 true *b 2.615,1.219 2.854,1.427 0.24,0.208 10 true *b 0.198,1.208 0.438,1.406 0.24,0.198 10 true *a

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade
*a	Clamp
*b	Guide

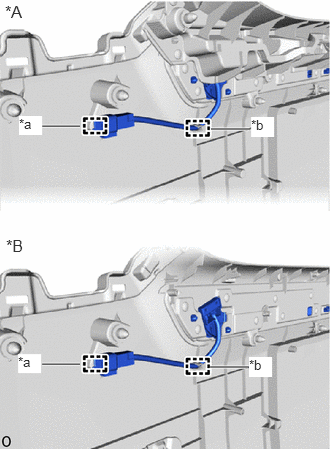

Detach the guide and clamp.

b.

0.042,0.052 0.344,0.25 0.302,0.198 12 false *A 0.052,2.521 0.365,2.719 0.313,0.198 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

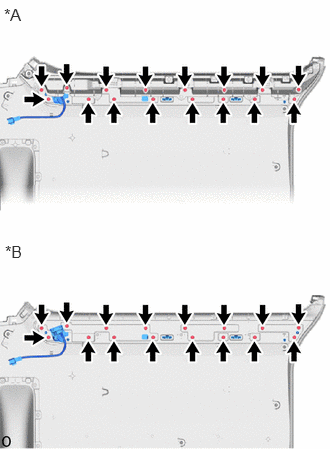

Remove the 16 screws.

c.

w/o Rear Sunshade:

i.

0,0 0,0 false

Remove in this Direction

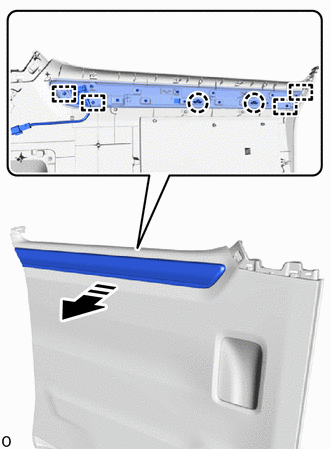

Detach the claw and guide and remove the No. 2 interior illumination light assembly with slide door trim ornament LH as shown in the illustration.

d.

w/ Rear Sunshade:

i.

0,0 0,0 false

Remove in this Direction

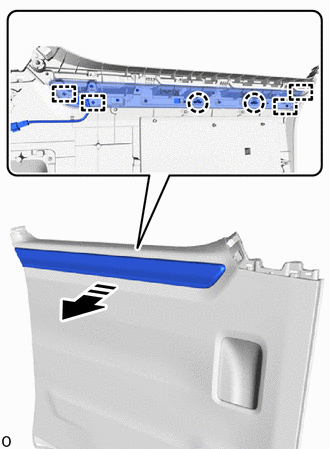

Detach the claw and guide and remove the No. 2 interior illumination light assembly with slide door trim ornament LH as shown in the illustration.

e.

0.042,0.042 0.333,0.26 0.292,0.219 12 false *A 0.052,2.229 0.333,2.5 0.281,0.271 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

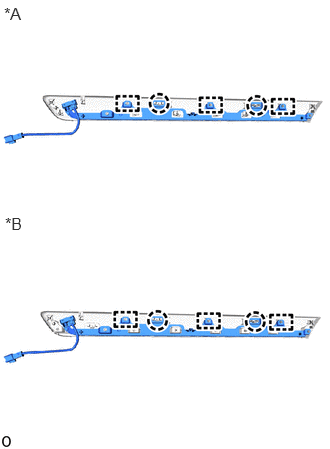

Detach the claw and guide and remove the No. 2 interior illumination light assembly from the slide door trim ornament LH.
