RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381160 CONSOLE BOX LIGHT A

LIGHTING (INT)  CONSOLE BOX LIGHT  INSTALLATION


PROCEDURE

Hide 81080K 1.INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

a.
E404899

Attach the claw to install the console box illumination light assembly.


b.
E404898

Connect the connector.


Hide 58903E 2.INSTALL NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY

a.

for Wagon:

i.
B528215

Connect the connector.



b.

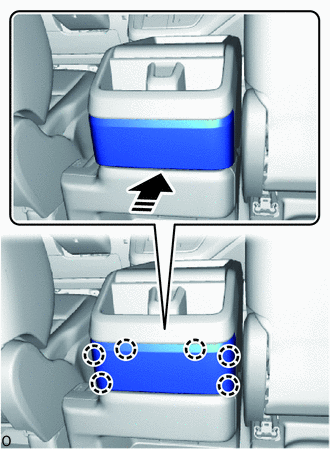

E404897C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 2 console rear end panel sub-assembly as shown in the illustration.
