RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381160 CONSOLE BOX LIGHT A

LIGHTING (INT)  CONSOLE BOX LIGHT  REMOVAL


PROCEDURE

Hide 58903E 1.REMOVE NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY

a.

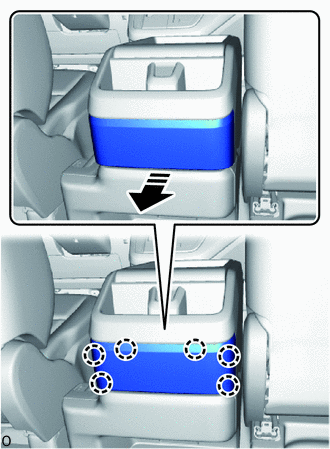

E404896C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 2 console rear end panel sub-assembly as shown in the illustration.


b.

for Wagon:

i.
B528215

Disconnect the connector.



Hide 81080K 2.REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

a.

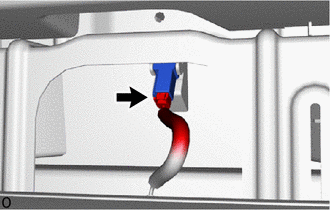

E404898

Disconnect the connector.


b.

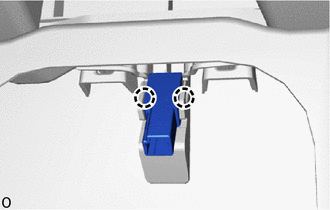

E404899

Detach the claw and remove the console box illumination light assembly.
